Automatic Compression Testers for Cubes, Cylinders and Blocks WIZARD AUTO

Обрати іншу модель Копіювати посилання
Automatic Compression Testers for Cubes, Cylinders and Blocks WIZARD AUTO
Automatic Compression Testers for Cubes, Cylinders and Blocks WIZARD AUTO Увеличить
Характеристики
Power supply 230 V, 50-60 Hz, 1 Ph

Manufacturer Conrtols
Всі характеристики

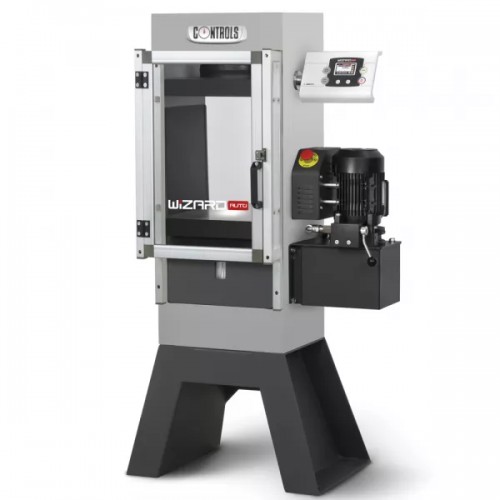

50-C45W02 - WIZARD AUTO COMPACT-Line automatic compression machine, 2000 kN cap. for blocks, cylinders up to 160 x 320 mm and cubes up to 200mm. - Compression platens 310 x 510 mm.

50-C35W02 - WIZARD AUTO COMPACT-Line automatic compression machine, 3000 kN cap. for blocks, cylinders up to 160 x 320 mm and cubes up to 200mm. - Compression platens 310 x 510 mm.

Дивитися повний опис
Automatic Compression Testers for Cubes, Cylinders and Blocks WIZARD AUTO Збільшити

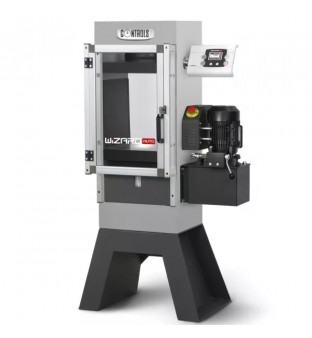

WIZARD AUTO is CONTROLS new standard automatic Quality Control machine for compression and flexural testing and includes many new features and enhancements to improve the user-friendliness, efficiency, operator comfort and energy savings.

QC testing performance has just taken a step change improvement with CONTROLS abandoning manual test control and now features automatic closed-loop PID control of loading-rate using VFD inverter-technology control of the high specification AC motor.

Wizard Auto automatically and accurately performs tests at the correct test speed, ensuring compliance to Standards and with no effect due to operator variables.

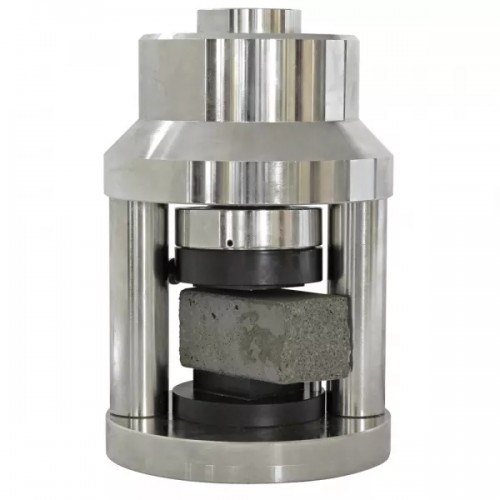

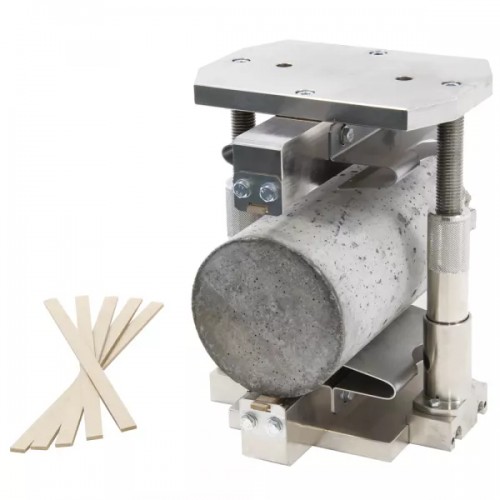

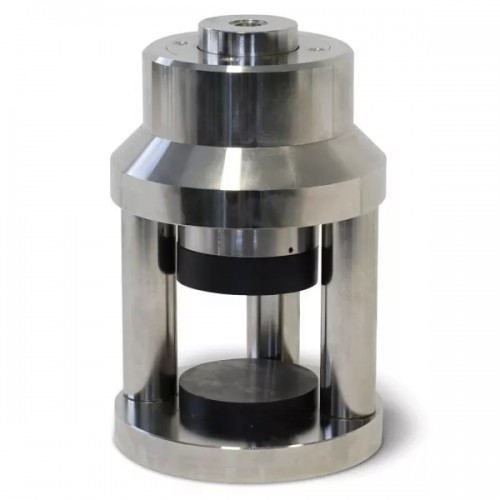

Mainly dedicated to routine failure tests (compression, flexure and indirect tensile), WIZARD AUTO is the perfect solution to ensure total certainty of testing accuracy and strict conformity to international Standards. In fact being an automatic system it allows:

  • Reduced opportunities for operator errors, improving accuracy of results and repeatability
  • Easy-to-use: even for operators with limited expertise.
  • Conforming to Standards: the machine automatically performs the test at correct test speed. Conformance to Standards can be easily proven.
  • High performance: high speed pump closes the daylight above the specimen at the fasted speed allowing a very high throughput of tests.
  • Operator comfort due to the significant noise reduction.
  • Energy saving, with 50% reduction in energy consumption.

    • Main features include:
  • Rigid welded steel construction
  • Accuracy Class 1/A (EN/ASTM) starting from 10% of full scale (from 1% on request)
  • Two channels for load sensors

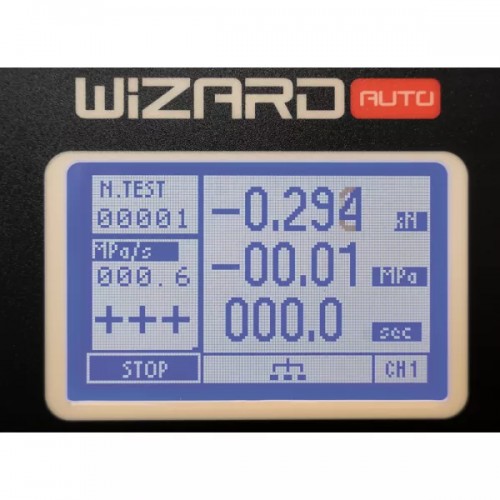

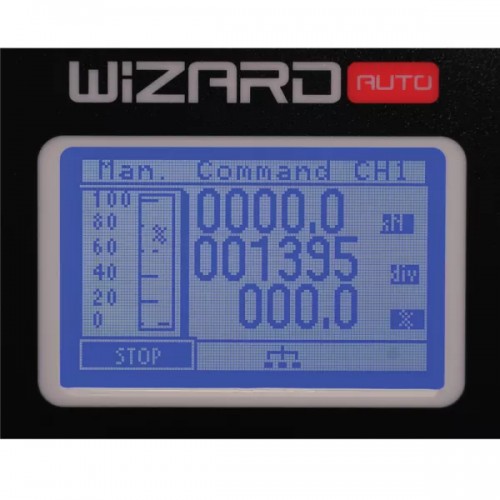

  • Wide graphic display 128 x 80 pixel

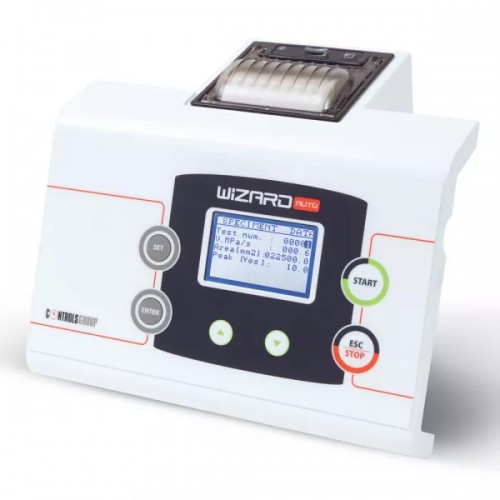

  • Graphic printer available as option
  • AC motor fitted with VFD INVERTER device: high efficiency, low consumption, silent operation
  • Dual stage pump for fast approach and automatic switch to high pressure for loading
  • Second frame optional facility

    • Frame

    Rigid welded steel construction. Spherical seat allows free alignment at the initial contact with the specimen.

    Compression platens

    See table. Traceable certificate of surface hardness available on request.

    Safety features

    Includes: Max. pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front and rear flexible transparent fragment guard.

    WIZARD AUTO AUTOMATIC POWER AND CONTROL SYSTEM

    Hydraulic
  • Max pressure 700 bar
  • Power 750 W
  • Dual stage pump: low pressure/high delivery for fast piston approach and high pressure/low delivery for loading.
  • AC motor fitted with VFD inverter device featuring high efficiency, reduction of power consumption and silent operation.
  • Second frame optional facility using valve selector.

    • Hardware
  • Two 16 bit analog channels for load sensors
  • Wide graphic display 128 x 80 pixel
  • Sampling rate 50 Hz
  • Internal memory
  • RS 232 port for data download (including load/time graph points) to PC in ASCII format
  • Integrated printer as optional. See accessories

    • Firmware
  • Real time display of load and stress
  • Automatic application of the selected load rate
  • Execution of loading ramps with the possibility to manually increase or decrease the test speed during the test
  • Peak detection and saving

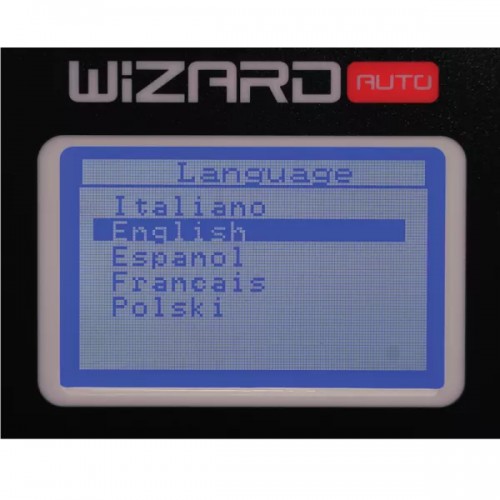

  • Language selection
  • Multi-coefficient linearization of the calibration curve for better accuracy at low loads
  • Multiple units: Lbf / Ton / kN.

    • PHYSICAL SPECIFICATION TABLE

    Model 50- C45W02, C45W04 C35W02, C35W04
    Capacity kN 2000 3000
    Max vertical daylight, mm
    		 370 350*
    Horizontal daylight, mm
    		350 370
    Max. piston travel*, mm
    		 50 50
    Platen dimensions, mm
    		310 x 510 x 50 310 x 510 x 50
    Platen surface hardness
    		 55.5 HRC (600 HV) 55.5 HRC (600 HV)
    Platens flatness toll, mm
    		0,05 0,05
    Overall dimensions, mm
    		 835 x 555 x 1090 805 x 600 x 1160
    Weight approx., kg
    		 610 815

    *With accessory 50-C50/CYL vertical clearance is increased by 20 mm. See test accessories

    Виробник
    Виробник Controls
    Технічні характеристики
    Максимальний хід поршня 50 мм
    Потужність 750 Вт
    Максимальний вертикальний просвіт 350 мм
    Твердість плити 55.5 HRC (600 HV)
    Максимальний тиск 700 бар
    Електроживлення 230 Вт, 50-60 Гц, 1 ф
    50-C9060/A - Heavy duty manually operated lifting device for lower platen for block compression machines. Compatible platen size 310x510 mm x 50 mm thickness

    50-C0050/HRD7 - Supply of the compression machine with 310x510x50 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.

    50-C0050/CAL - Special calibration of load digital readout unit assuring class 1 from 1% of testing machine full scale (maximum load)

    50-C39/B - Base for frames and testing machines model 50-C34xxx, 50-C35xxx and 50-A32xxx

    50-C49/B - Base for 2000 kN 50-C46xxx, 50-C47xxx, 50-C43xxx, 50-A42xxx and 50-C45xxx frames/machines

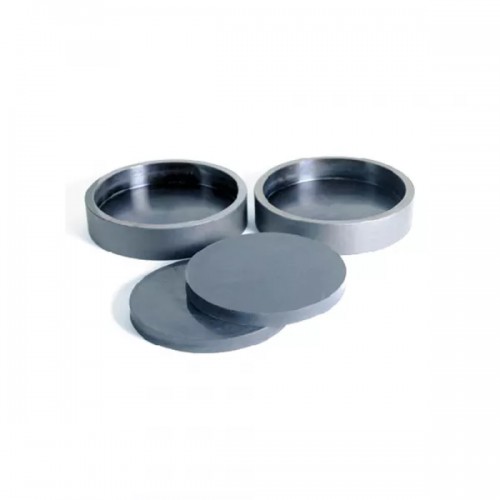

    50-C50/CYL - Lower compression platen dia. 165 x 30 mm for testing capped cylinders dia. 150 x 300 mm (6"x12"). Resulting compression machine vertical clearance is increased by 20 mm

    50-C10W/2F - Second frame facility for WIZARD AUTO series. Frame selection via manual lever

    50-Q60W/PR - Upgrading the WIZARD AUTO series to incorporate a serial graphic printer in the rear panel

    50-C50/P1 - Application of a magnetic switch to the safety guard (for automatic testers only). Suitable for automatic compression machines.

    50-C9080 - Distance piece dia 200 x 30 mm

    50-C9082 - Distance piece dia 200 x 50 mm

    50-C9083 - Distance piece dia 200 x 68 mm

    50-C9086 - Distance piece dia 200 x 100 mm.

    50-C45/FG - Upgrading of the 50-C45xxx series 2000 kN compression frames with front rigid door (for frames fitted with rectangular platens 310x510 mm)

    50-C35/FG - Upgrading of the 50-C35xxx, A29xxx and A39xxx compression frames with front rigid door (for frames fitted with rectangular block platens)
