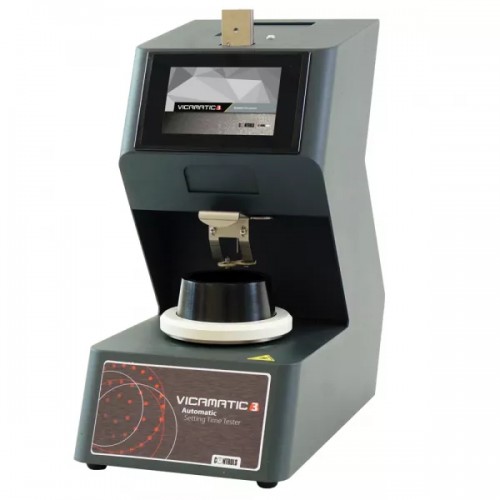

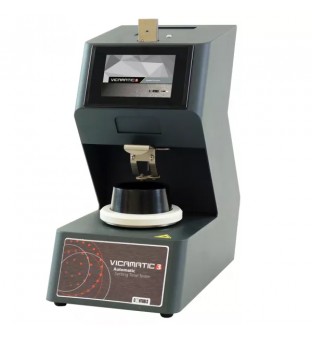

63-L2701/E - VICAMATIC-3, automatic electronic apparatus for setting time test on cement/mortar/gypsum.
Complete with EN 196-3 accessories: initial Setting time needle 1.13 mm dia. and mould.
Дивитися повний опис
CONTROLS have long tradition in manufacturing automatic setting time testers for cement and mortar. A new generation, the fourth one, is now available, featuring a large color 5.1” touch screen display. As with the older generations the test procedure is unchanged, a needle (or a probe) drops freely into a cement sample at regular intervals and in fixed positions. Penetration depth is measured by a sensor with 0,1 mm resolution. Along with hardening process development the penetration depth decreases, when it matches some thresholds pre-defined by Standards initial and final setting times are measured and recorded.
Caracterìsticas Principales
Advanced electronics technologies providing superior performances and total flexibility combined with simplicity in use
Easy-to-use double interface: local mode, with large size 5.1" touch screen color display, and remote mode, with PC

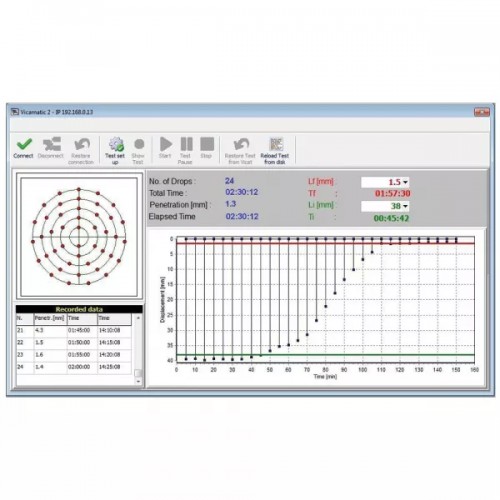

Supplied complete with PC software for data processing VICASOFT-BASIC

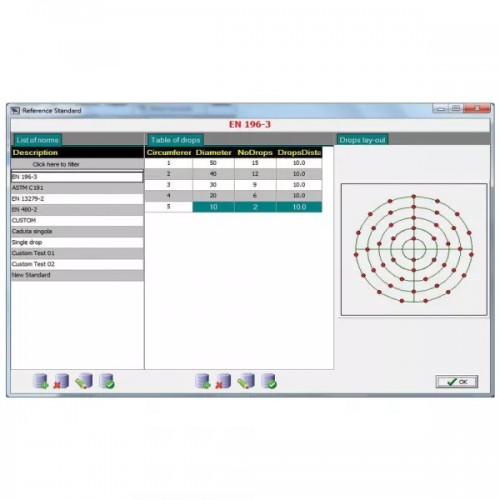

With PC software VICASOFT-PREMIUM (optional) up to 32 indipendent units (includign VICAMATIC 2 models) can be connected to a single PC via LAN port and hub. All units are remotely controlled. Adopting the multi-test network concept laboratory productivity is maximized
Integrated graphic printer is available as optional accessory showing both results in numerical format and setting time plot
Easy setting and storage of user-defined test profiles allowing quick test start
Large accessibility to the test space

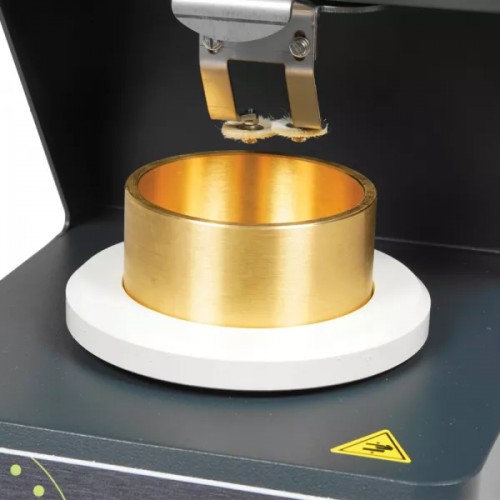

Complete with needle cleaning device

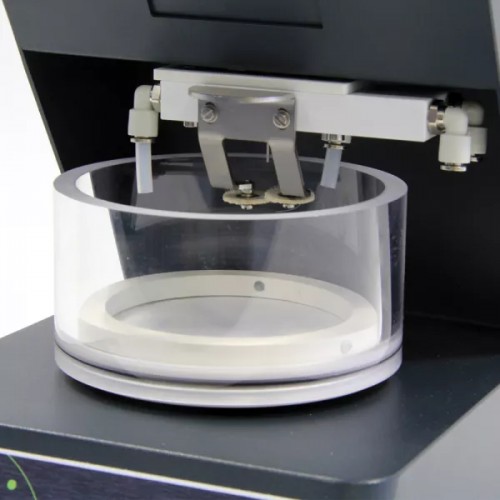

Practical in-water testing accessory (optional)
Automatic determination of initial and final setting time
Technical specifications
Conforming to EN 196-3, 13279-2, 480-2, ASTM C191, C187

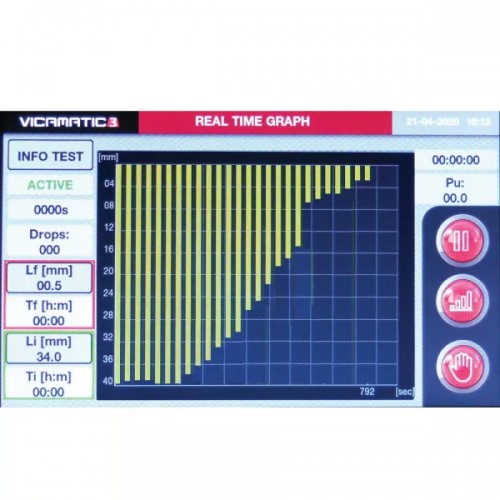

5.1”, 800 x 480 pixel, 16 M colors, icon-driven touchscreen graphic display, showing data and plots
LAN port for direct connection to PC of a single unit or connection to a LAN hub for creating a network with up to 32 independent units all controlled by a single PC. 1 LAN cable is included
USB port for test data download to PC and easy firmware upgrade
Unlimited storage capacity for test data on internal 16 GB SD card
Test procedures can be customized and stored to match user-defined requirements
Can incorporate an integrated graphic printer showing test result and setting time plot
Large test space with easy accessibility
Automatic calculation of initial and final setting time at programmable penetration depth limits
Wide range of accessories including EN and ASTM/AASHTO parts, in-water testing kit, needle cleaning device, integrated printer, probes for testing consistency and gypsum
Minimum penetrations rate: 10 seconds
Penetration measurement by encoder
Power: 50 W
Dimensions: 200x400x410mm (L x W x H)
Weight approx.: 10 kg
Firmware specifications
Test data: test number, operator, client, date, hour, cement type, water percentage, delay
Easy calibration menu
Clock calendar
Multi-language
Easy programming of customized test profiles, recallable for future tests, including:
adjustable test start delay
penetration points positions
manual or automatic penetration rate
free or driven dropping mode
holding intervals inside the sample
automatic end- test detection
automatic measurement of initial and final setting time
63-L2700/E10 - Accessory for in-water testing.
63-L2700/E11 - LAN HUB for PC connection of up to 7 VICAMATIC units or up to 6 units in case of multi-hub network. LAN cable from hub to PC is included. Each VICAMATIC unit is supplied complete with LAN cable

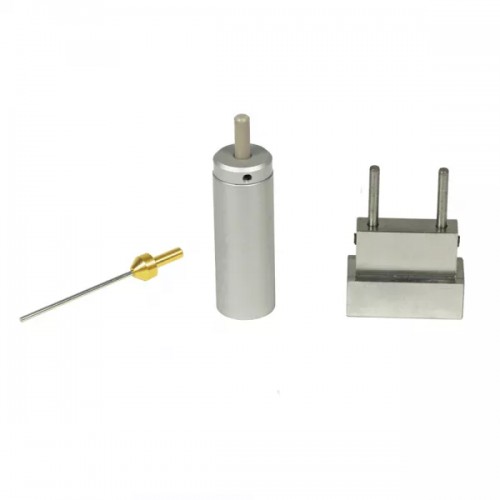

63-L2700/E14- Needle for final setting test to EN
63-L2700/E15 - Cylindrical probe for consistency test
63-L2700/E16 - Additional weight 700 g (EN 480-2)
63-L2700/E18 - Conical penetration probe 8 mm dia x 50 mm complete with 100g calibrated weight for gypsum testing to EN 13279
63-L2700/E20 - 1,13 mm diameter needle to EN

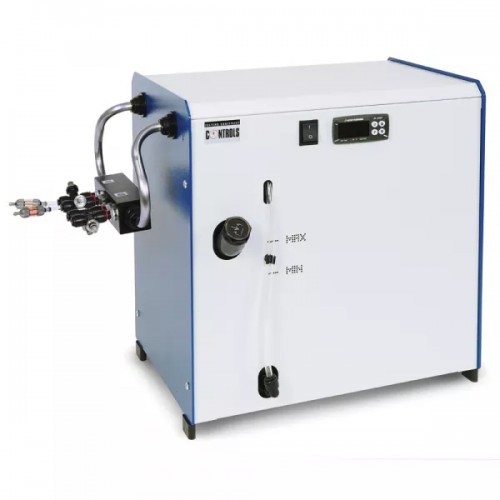

63-L2700/E9 - Water thermostatic unit for up to 2 VICAMATIC units.
63-L2700/E9Z - Water thermostatic unit for up to 2 VICAMATIC units.

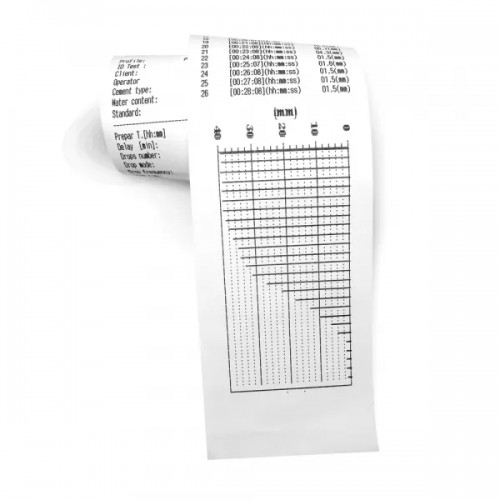

63-L2700/PR - Upgrading of a VICAMATIC unit for incorporating a graphic printer into the head. Test settings andresults are plotted both as numerical and graphical format including penetration depth/time diagram. The upgrading shall be factory installed.
63-L2700/1 - Centering ring for EN mould
63-SW/VS - VICASOFT-PREMIUM PC software to connect up to 32 VICAMATIC-2 units including remote control of eachunit, data acquisition - processing - filing, printout of test reports.

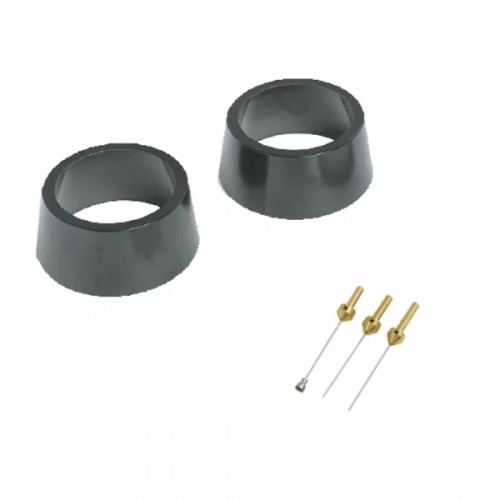

63-L0027/E22 - Plastic mould to EN
63-L2700/E24 - Glass base plate
63-L2700/E25 - Spare base plate for in-water testing kit
63-L2700/1 - Cenitering ring for EN mould
63-L2700/E20 - 1,13 mm dia. needle for initial setting time test to EN
