Автоматичний універсальний тестер компресії (50 кН) з контролем переміщення - SPEEDLOADER

Обрати іншу модель Копіювати посилання
Автоматичний універсальний тестер компресії (50 кН) з контролем переміщення - SPEEDLOADER
Автоматичний універсальний тестер компресії (50 кН) з контролем переміщення - SPEEDLOADER Увеличить
Характеристики
Standards ASTM D1559, ASTM D5581, AASHTO T245, EN 12697-12
EN 12697-23, EN 12697-34, ASTM D6927, AASHTO T283, ASTM D6931

Manufacturer Controls
Всі характеристики

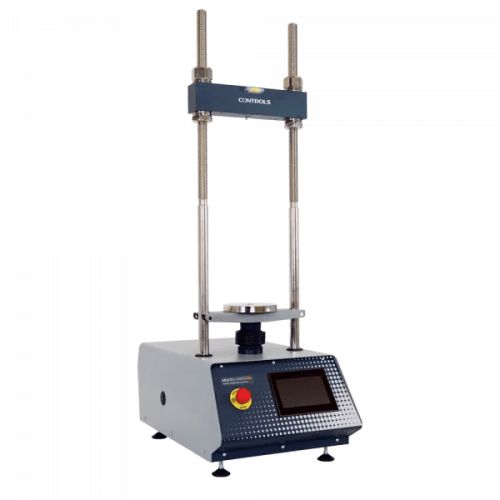

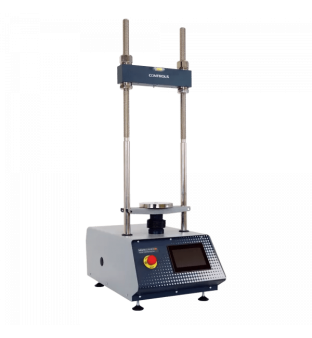

34-V1082 - SPEEDLOADER compression testing machine with digital control panel, motorized ram, two-column structure and adjustable crossbeam

Дивитися повний опис
Автоматичний універсальний тестер компресії (50 кН) з контролем переміщення - SPEEDLOADER Збільшити

CONTROLS range includes a series of small and compact compression machines that can be used for several tests:

  • CBR tests on soils;
  • Marshall tests on asphalt;
  • Indirect Tensile strength and IDEAL-CT tests on asphalt;
  • uniaxial and unconfined tests on soils and rocks;
  • compression tests on low stregth concrete, cement and groundcement samples;
  • flexure tests on beams, mortar, tiles and any other compression or flexure test performed under displacement and/or load closed loop control within machine capacity.

Each machine can be selected depending on type of test and material:

  • MULTILOADER machines are generally used for CBR, Marshall and displacement control tests
  • UNIFRAME machines are generally used when load rate control is also required

See the table below to select your preferred machine depending on the test typically performed:

LOAD TESTER 34V1082

PERFORMABLE TESTS CBR Marshall External Dimension Semi-Circulare Bend Leutner Shearing frame Unconfined compression Quick triaxial Punching test on clay block for flooring Indirect tensile splitting
CORRESPONDANT STANDARDS EN 13286-47, ASTM D1883br EN 12697-34; ASTM D1559, D5581 12697-23; ASTM D8225; AASHTO T283 ASTM D8044; AASHTO TP124 EN 12697-48 ASTM D2166; BS 1337 ASTM D2850; BS 1337 UNI 9730-3 EN 12697-12, 23; CNR 134
Виробник
Виробник Controls

82-P0375 - 50 kN capacity strain gauge load cell
82-P0375/C - Connecting adapter load cell/cross head
34-T0104/81 - Adjustable support for displacement transducer
82-P0322 - Linear potentiometric displacement transducer, 25 mm travel with cable 6 pins connector
34-T0104/10 - Compression device
34-T0104/13 - Compression device extension, suitable for con- nection to 34-T0104/81, adjustable trasducer
76-B0033/4 - Stability mould for 4" (101.6 mm) diameter specimens
34-V0107/MAR - Test set to perform the Marshall test in digital mode with the 34-V0107 and 70-T0108/E testers
34-V0107/CM - Test set to perform CBR and Marshall tests in digital mode with the 34-V0107 and 70-T0108/E testers
76-B0033/6 - Stability mould for 6" (152.4 mm) diameter specimens
76-B0078/F - Frame for tensile splitting device (Lottman Breaking Head) for compacted bituminous samples 100 mm (4") dia. 150 mm (6") and 160 mm. Conforming to EN 12697-23, ASTM D6931 and AASHTO T283. To be completed with suitable pair of loading strips.
76-B0078/F1 - Pair of loading strips for 100 mm dia. samples suitable for jig code 76-B0078/F
76-B0078/F2 - Pair of loading strips for 150 mm dia. samples suitable for jig code 76-B0078/F
76-B0033/E - Shearing head acc. to Leutner method for 150mm dia. samples for Shear Bond Test (SBT) to EN 12697-48
76-B0033/E1 - Adapter for 100mm dia. samples for Leutner shearing head
79-PV70150 - Indirect Tensile (IDT) and Semi-Circular Bend (SCB) Jig Base
79-PV70155 - Semi-Circular Bend (SCB) Top Platen
79-PV70156 - Semi-Circular Bend (SCB) Jig Upgrade Kit Option for ASTM D8044 / AASHTO TP124 Method B
79-PV70157 - Semi-Circular Bend (SCB) Jig Upgrade Kit Option for AASHTO TP124 Method A (as altrnative)
76-SW/BMD - PC software for 76-PV128x Balanced Loader,70-T128x Uniframe testers, 34-V118x Multiloader and for 82-P60R12 Digimax readout unit, suitable for BMD asphalt mix test.
