Benkelman Beam Apparatus

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards AASHTO T256

Weight (approx.) 15 kg

Manufacturer Conrtols

Всі характеристики

35-T1100/BF - Benkelman beam apparatus - Conforming to AASHTO T256, NF P98-200-2 and CNRNo. 141. Manufactured from aluminium and chrome finished metals. 2440 mm max lenght, 1220 mm back extension. Complete with adjustable feet and bubble level

Дивитися повний опис

Збільшити

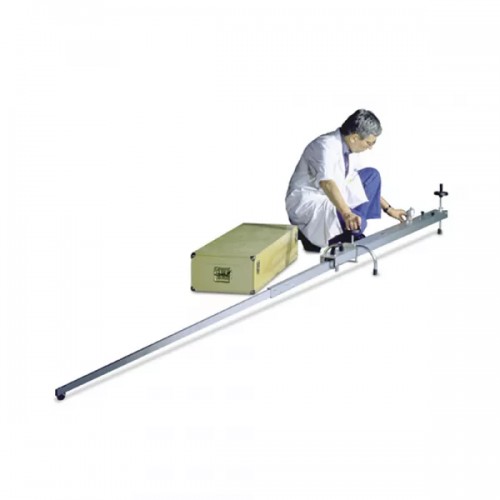

The apparatus is used to measure the deflection of flexible pavements under the axion of moving wheel loads. In operation the beam is placed between the tyres of the test vehicle and in contact with the pavement. The deflection is measured as the vehicle passes over the test area. The probe is 2440 mm long and the back extension is 1220 mm. Manufactured in aluminium and chrome finished metals.
