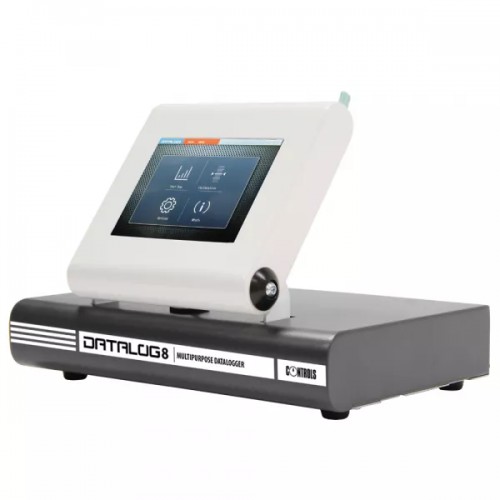

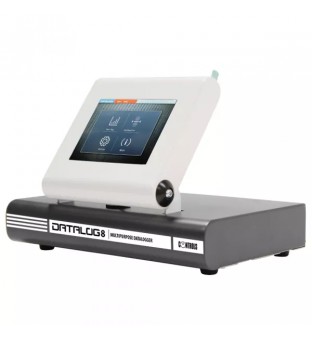

DATALOG 8 is a stand alone data logger for general purpose acquisition, processing and data storage for laboratory applications.
DATALOG 8 records and monitors in real time the measurements requested by different tests, for example:
Elastic modulus determination with Uniaxial and Triaxial testing systems without in-built channels (rock, concrete, others)
Determination of axial and circumferential deformations of concrete and rock specimens under compression loading
Rock shear box apparatus (digital version) and many other tests
A second version of this data logger is also available with in-built battery and rigid carrying case suitable for use on field. Please refer to Related Products below
Main features

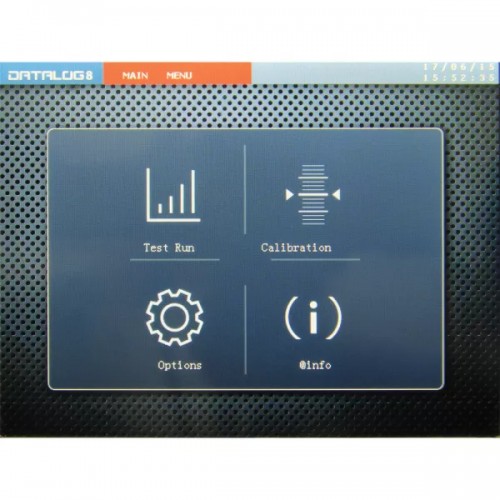

Adjustable 6” touch screen colour graphic display
8 independent input channels

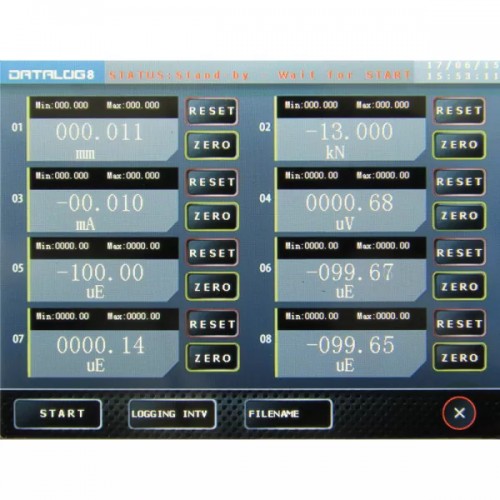

Display of readings and graphs in real time
Compatible with load cells, pressure transducers, strain gauges, LDT/LVDT/potentiometric displacement transducers
Effective resolution: 131,000 points
Sampling rate up to 500 readings per second per channel via LAN and up to 10 readings per second per channel in local mode
Unlimited storage capacity with USB pen drive
Network configuration of up to 8 units (64 independent channels)
Contemporaneous data sampling of all channels in accordance to the programmable logging mode
LAN/Ethernet connection to PC via dedicated software (not included)
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Вага (прибл.) |
2.5 кг |
| Кількість каналів |
8 |
| Роздільна здатність екрану |
131 000 пікселів |
| Автономний режим |
так |
| Вхідний сигнал |
0-10 В; 0-20 мА |
| Зберігання даних |
на знімному флеш-накопичувачі USB |
| Комунікаційний порт |
LAN / Ethernet |
| Режим мережі |
до 8 одиниць |
| Електроживлення |
110-230 В, 50-60 Гц, 1 фаза |
| Програмне забезпечення для ПК |
Не включено, P9008/SOF |
| Габаритні розміри |

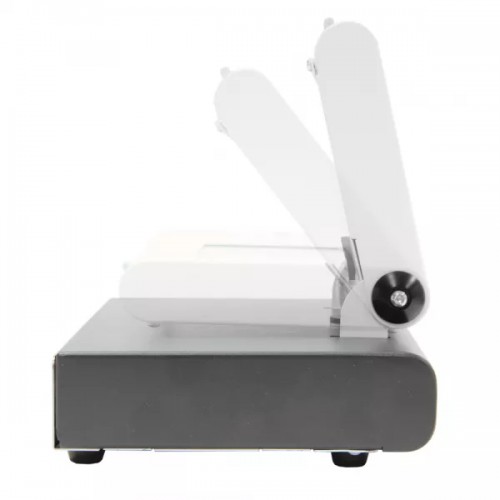

290x195x100 мм (дисплей закритий); 290x195x241 (дисплей відкритий) |
82-P9008/ELT -
Set of four cables for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008) and GEODATALOG 8 ( 30-WF6008)
82-P9008/SOF -
DATACOMM 2 data acquisition software and LAN cablefor PC connection of DATALOG 8 (82-P9008, P9008/F) - Up to 8 datalogger (total 64 channels) can be connected to a single PC creating a modular network (LAN hub is required)
82-P9008/ELT1 -
Cable for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008) and GEODATALOG 8 ( 30-WF6008)
26-WF4645 -
LAN Hub with 8 ports for Wykeham Farrance devices.LAN cable from hub to PC is included.
