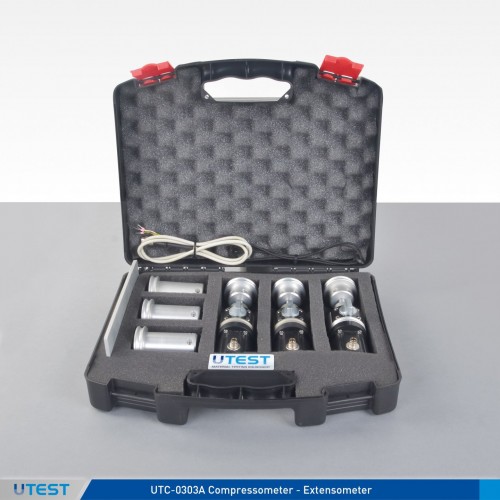

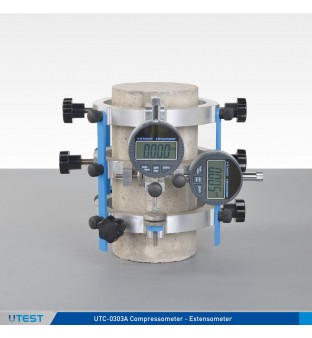

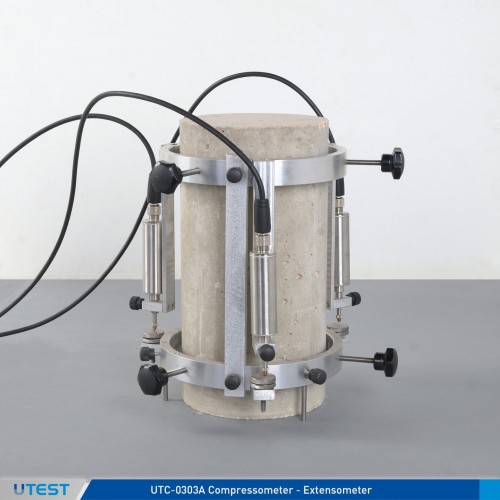

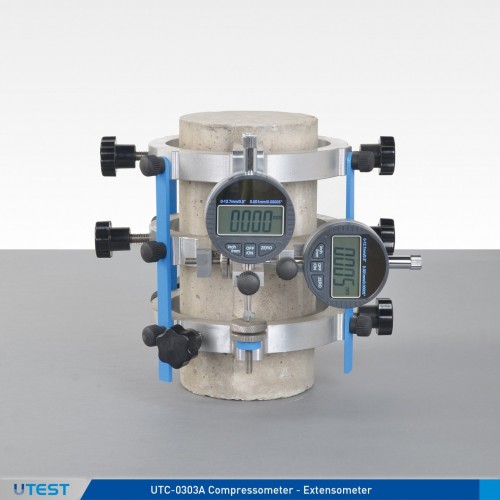

Compressometer-Extensometer

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standarts EN 12390-3; 12390-4; BS 1881; ASTM C39;

Manufacturer UTEST

Всі характеристики

UTC-4630 - Distance Pieces, Ø 165x15 mm (Ø6,5”x0,59”)

UTC-4631 - Distance Pieces, Ø 165x30 mm (Ø6,5”x1,18”)

UTC-4633 - Distance Pieces, Ø 165x50 mm (Ø6,5”x1,97”)

UTC-4634 - Distance Pieces, Ø 165x100 mm (Ø6,5”x3,93”)

UTC-4635 - Distance Pieces, Ø 205x15 mm (Ø8,07”x0,59”)

UTC-4636 - Distance Pieces, Ø 205x30 mm (Ø8,07”x1,18”)

UTC-4638 - Distance Pieces, Ø 205x50 mm (Ø8,07”x1,97”)

UTC-4639 - Distance Pieces, Ø 205x100 mm (Ø8,07”x3,93”)

UTC-4680 - Pedestal for 600kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf) Compression Testing Frames

UTC-4682 - Pedestal for 2000 kN (450000 lbf) and 3000 kN (670000 lbf) Compression Testing Frames

Дивитися повний опис

Збільшити

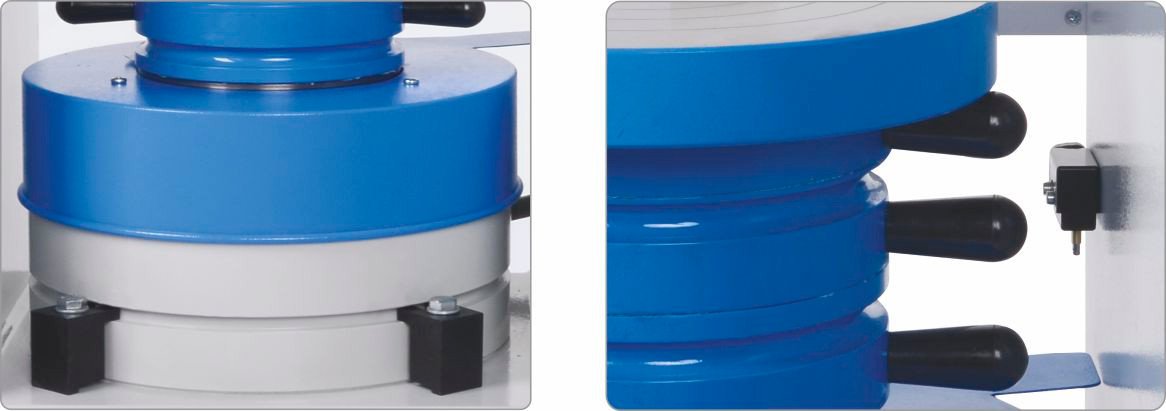

Distance pieces are used to reduce the amount of vertical clearance between the upper platen and the lower platen. For lowering the minimum distance between upper and lower platens down to required height.

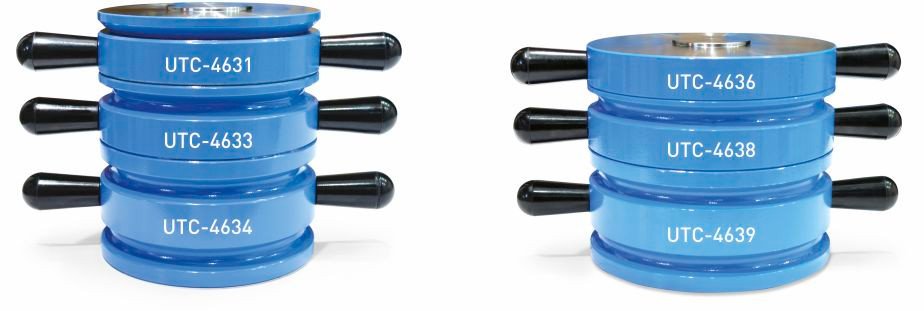

Distance pieces are equipped with handles.

Product Codep	Dimensions	Weight (approx.)
UTC-4630	165x165x15 mm (6,5”x6,5”x0,59”)	2,5 kg (5,5 lbs)
UTC-4631	165x165x30 mm (6,5”x6,5”x1,18”)	5 kg (11 lbs)
UTC-4633	165x165x50 mm (6,5”x6,5”x1,97”)	8 kg (17,6 lbs)
UTC-4634	165x165x100 mm (6,5”x6,5”x3,93”)	15,5 kg (34,2 lbs)
UTC-4635	205x205x30 mm (8,07”x8,07”x0,59”)	4 kg (8,8 lbs)
UTC-4636	205x205x30 mm (8,07”x8,07”x1,18”)	8 kg (17,6 lbs)
UTC-4638	205x205x50 mm (8,07”x8,07”x1,97”)	13 kg (28,7 lbs)
UTC-4639	205x205x100 mm (8,07”x8,07”x3,93”)	24,5 kg (54,0 lbs)
UTC-4680	545x540x545 mm	50 kg
UTC-4682	725x540x445 mm	55 kg

LOADING CYLINDER ASSEMBLY

All frames have a single acting up stroking ram. The diameter of the piston is designed to work with the load capacity.

The maximum ram movement is 50 mm. The pressure transducer is used for load measurements. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

Loading Cylinder Assembly and Limit Switch

PEDESTAL FOR FRAMES

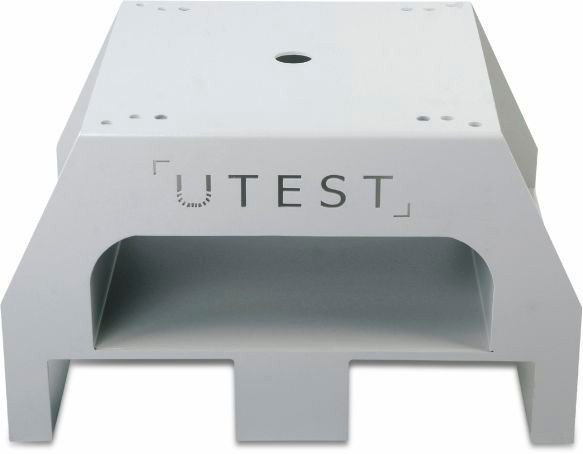

The pedestals make it easier for the user to placement of specimens in the frames for compression test

UTC-4680 or UTC-4682 Pedestal
