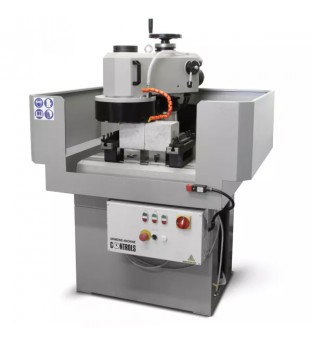

Concrete/Rock Specimen Grinding Machine (Controls)

Обрати іншу модель Копіювати посилання
Concrete/Rock Specimen Grinding Machine (Controls)
Concrete/Rock Specimen Grinding Machine (Controls) Увеличить
Характеристики
Standards EN 12390-2; ASTM D4543;

Manufacturer Controls
Всі характеристики
55-C0201/B - Semiautomatic grinding machine for cubes, cylinders, blocks, cores and rock specimens. Complete with 10 abrasive sectors and clamping system for cubes and prisms. 380V, 50Hz, 3ph.

55-C0201/BY - Semiautomatic grinding machine for cubes, cylinders, blocks, cores and rock specimens. Complete with 10 abrasive sectors and clamping system for cubes and prisms. 380V/60Hz/3ph.

55-C0201/C - Grinding machine with automatic lateral displacement of the grinding head. Suitable for cubes, cylinders, blocks, cores and rock specimensComplete with 10 abrasive sectors and clamping system for cubes and prism. 220-380V/50Hz/3ph.

55-C0201/CY - Grinding machine with automatic lateral displacement of the grinding head. Suitable for cubes, cylinders, blocks, cores and rock specimens. Complete with 10 abrasive sectors and clamping system for cubes and prism. 380V/60Hz/3ph.

Дивитися повний опис
Concrete/Rock Specimen Grinding Machine (Controls) Збільшити

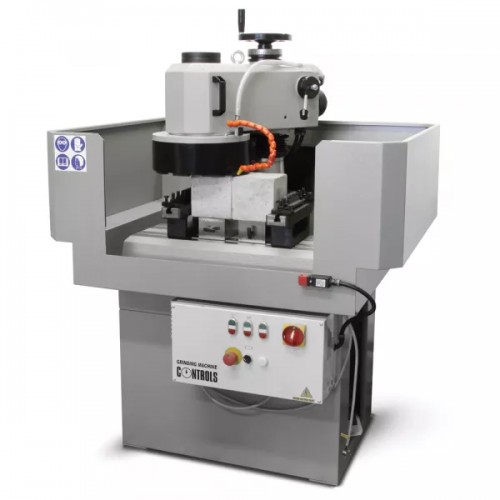

Used to grind and polish concrete specimens, natural stones, ceramic materials, etc. Proposed in two versions:

  • 55-C0201/B standard version in which the lateral displacement of the grinding head is motor operated and actuated by a push button.
  • 55-C0201/C Automatic version in which the lateral displacement is fully automatic and controlled by travel limit switches.

    • All the other characteristics are identical.

    The cube and cylinder specimens can be easily locked on the table and the grinding head, 330 mm dia., can be laterally moved either manually or automatically in both directions so, the only manual operation requested is the lowering of the grinding head by the top hand wheel. The machine is supplied complete with safety chip guard that, when removed, stop automatically the machine, with coolant tank, motor pump and one set of abrasive sectors. Diamond grinding sectors are available on request (see accessories). The machine is supplied complete with clamping element for 100, 150 and 200 mm cubes. Clamping devices for cylinders and device for dry grinding procedure are also available on request (see accessories). The 45-D0534/B and 45-D0534/C Core face preparation jigs can be easily fitted by the clamping element supplied with the machine.


    Main features
  • To grind concrete specimens, natural stones, tiles, block pavers, ceramic materials etc.

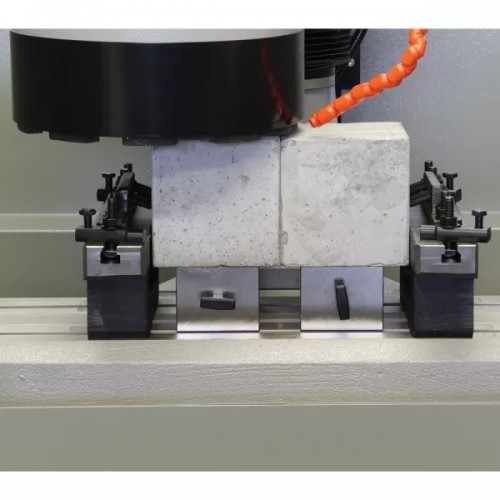

  • Large base table for grinding contemporaneously up to three 100 mm cubes, or three 150 mm cubes, or two 200 mm cubes and concrete/tile blocks of various sizes (see drawing of working area).
  • For cylinders up to dia. 160x320 mm
  • Motorized lateral displacement in both directions by pushbutton or totally automatic with the 55-C0201/C version
  • Safety guard with door locking switch conforming to CE
  • Complete with clamping elements for cubes
  • Suitable for dry grinding procedure. See accessories
  • Diamond impregnated sectors available as alternative to abrasive
  • Ideal for surface preparation of rock samples using the accessory 45-D0534/B and 45-D0534/C
    • Виробник
    Виробник Controls
    Технічні характеристики
    Захист безпеки with door locking switch conforming to CE
    Потужність 2200 W
    Автоматична поперечна подача в обох напрямках (model 55-C0201/C only)
    Вага (прибл.) 350 kg
    Вага брутто (прибл.) 415 kg
    Діаметр шліфувального круга 330 mm
    Кількість шліфувальних сегментів 10
    Мінімальний вертикальний просвіт 145 mm
    Максимальний вертикальний просвіт 350 mm
    Максимальний розмір зразка 200 mm cubes and 160x320 mm cylinders
    Оброблені поверхні see schematic representation
    Розмір столу 775x280 mm
    Хід шліфувальної головки 205 mm
    Швидкість шліфувального круга 1400 rpm
    Габаритні розміри 1200x1020x1640 mm
    32-D0534/B - 4-places core face preparation jig for grinding machine series 55-C0201/x and 55-C0202/x. Max coredia. 55 mm

    32-D0534/C - 2-places core smoothing jig suitable for grinding machines series 55-C0201/x and 55-C0202/x. Core dia. from 50 to 100 mm

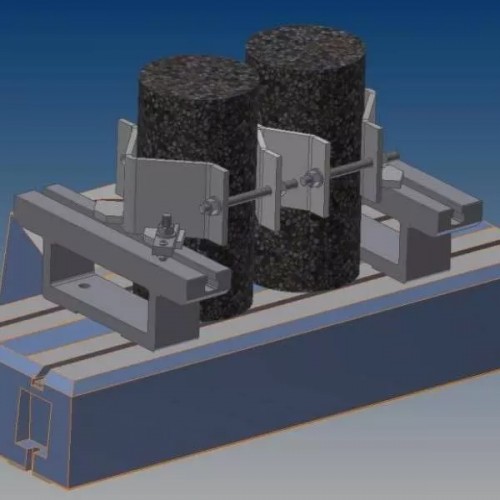

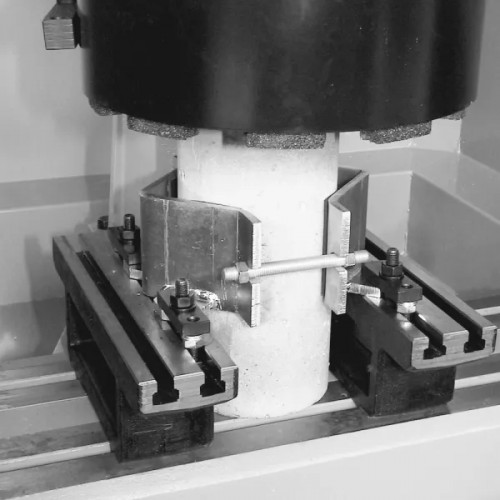

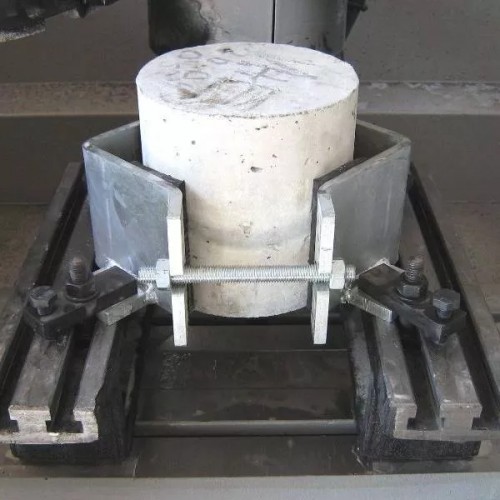

    55-C0200/100 - Clamping device for concrete cylinders from 50 to 100 mm dia. Compatible with grinding machine series 55-C0201/x and 55-C0202

    55-C0200/1002 - Device for clamping one additional cylindrical specimen from 50 up to 100 mm dia. It shall be used along with accessory 55-C0200/100. Compatiblewith grinding machine series 55-C0201/x and 55-C0202

    55-C0201/B1 - Spare set of 10 abrasive sectors for grinding machine series 55-C0201/x.

    55-C0201/B2 - Set of 10 diamond abrasive sectors for grinding machine series 55-C0201/x.

    55-C0201/B3 - Accessory for the use of an aspirator connected to the grinding machine 55-C0201/x, suitable for the dry grinding procedure. Aspirator not included.

    55-C0200/160 - Clamping device for concrete cylinders from 100 to160 mm dia. Compatible with grinding machine series 55-C0201/x and 55-C0202

    55-C0200/1602 - Device for clamping one additional cylindrical specimen from 100 up to 160 mm dia. It shall be used along with accessory 55-C0200/160. Compatiblewith grinding machines serie 55-C0201/x and 55-C0202
