Цифровий повітряно-струйний ситовий шейкер

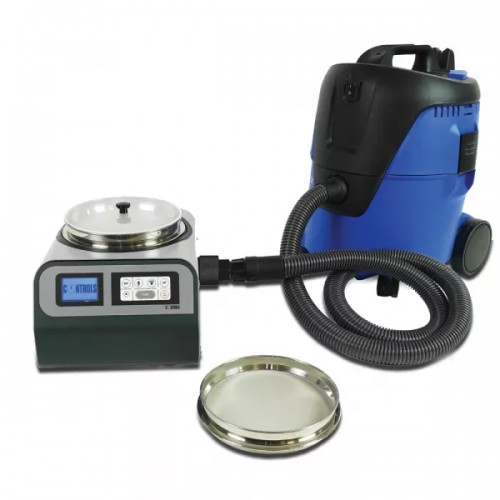

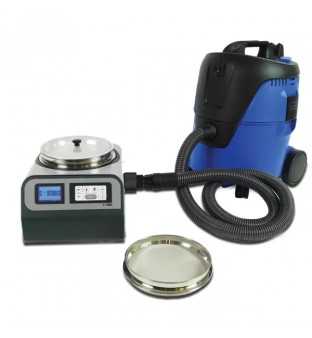

The Digital Air Jet Sieve is ideal for determining size distribution of fine particles from 5 microns to 4 mm. The highly efficient and fast sieving action is achieved by creating a pressure difference across the sieve

The apparatus allows complete customisation of test processes including pressure, nozzle speed and test duration, all shown on the LCD display. Specifically, for the cement industry, the digital air jet sieve has pre-set test standards that guide the user through sieving stages. After each cycle the mass is entered and calculated to determine if sieving needs to be repeated, progressed the next sieve aperture size, or finished. Upon completion a test report is generated and can be exported to PC or printed using serial connection. The machine is supplied complete with plexiglass cover.

Dedicate sieves 25 mm height, vacuum unit, filter cartridge and bags are available as accessories.

The machine features an integrated pressure transducer and a manual regulation valve to adjust the pressure difference in a range of 1.0 – 9.9 kPa (depending on the vacuum unit). Vacuum unit 15-D0413/A1 provides pressure difference up to 6.5 kPa exceeding Standards requirements.

As for sieves, view the codes in the "technical specifications" table. Our sieves are 200mm Dia. x 25, Height.

• Vacuum range exceeding Standards requirements
• Vacuum range exceeding Standards requirements
• Adjustable nozzle speed from 5 to 70 rpm to optimize sieving procedure
• Wide 128x80 pixels high resolution graphic display with 6 key membrane keyboard
• Double operating modes: quick start and pre-set test modes
• Testing procedure that guides the user through sieving stages according International Standards
• Customisable test parameters for all test modes
• Fully customizable test procedure to cover specific client’s needs
• Extreme flexibility with adjustable nozzle speed, pressure and test duration, all shown on the digital display
• Test reports can be generated and exported to PC or printer via serial connection

*Opening requied by EN 933 and EN 196-6
