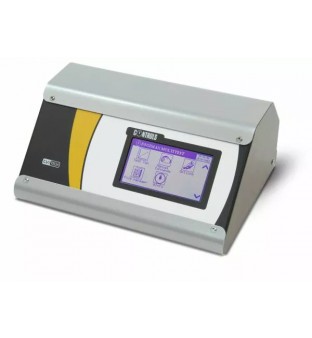

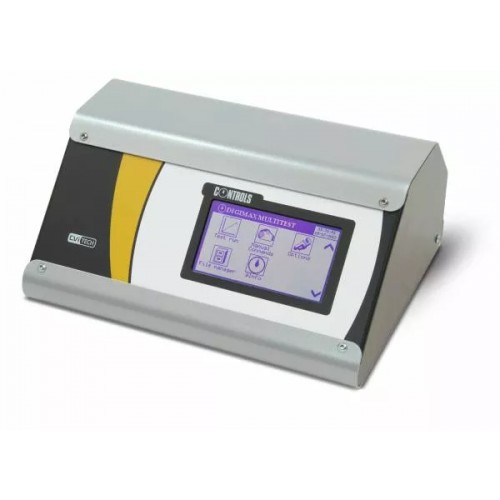

DIGIMAX TOUCH Screen Readout and Data Acquisition Unit for CBR, Marshall, Indirect Tensile and Universal Tests

Обрати іншу модель Копіювати посилання
DIGIMAX TOUCH Screen Readout and Data Acquisition Unit for CBR, Marshall, Indirect Tensile and Universal Tests
DIGIMAX TOUCH Screen Readout and Data Acquisition Unit for CBR, Marshall, Indirect Tensile and Universal Tests Увеличить
Характеристики
Standards -

Manufacturer Controls
Всі характеристики
82-P60R02 - DIGIMAX - Four channel readout and processing unitfor load and displacement sensors, up to two channels can be used contemporaneously. Suitable for Marshall, CBR and general purpose test.

Дивитися повний опис
DIGIMAX TOUCH Screen Readout and Data Acquisition Unit for CBR, Marshall, Indirect Tensile and Universal Tests Збільшити

Based on the latest electronics technologies this modern readout unit offers advanced performances and outstanding electronics features. Effective resolution, sampling rate, accuracy and stability of the readings, touch screen sensitivity and reaction time, network connectability, calibration functions, are remarkable.

Our long experience and tradition in the production and design of testing systems and in particular digital units made possible an extraordinary optimization of the user interface and working procedures resulting in faster and easier use always combined with Class 1 accuracy and total reliability.

Main features
  • Large size touch screen display

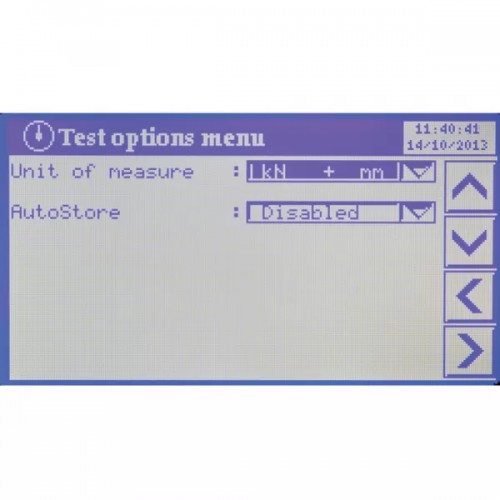

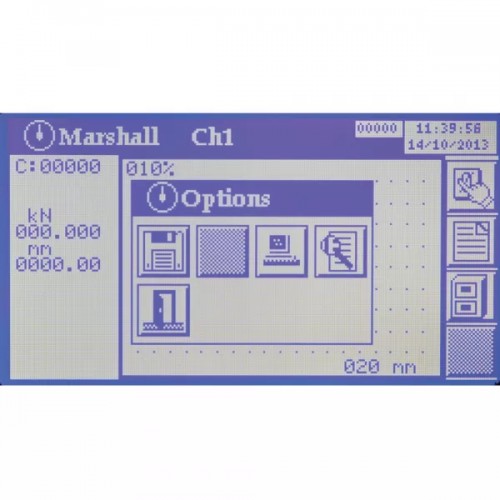

  • Very easy to use menus with intuitive selections, self-explanatory icons, optimized test procedures
  • PC connection via LAN port allowing broader band, better stability and longer distance compared to the RS232 serial communication
  • Advanced calibration menus with linearization functions, driven procedures, safe storage
  • Unlimited data storage on USB pen drives

    • Technical specifications
  • Data download: Ethernet port, RS232 port or USB pendrive
  • Memory: 16GB internal memory
  • Number of channels: 6 (N°2 Load Channels, N°4 Displacement Channels)
  • Channel resolution: 24 bit
  • Sampling frequency: up to 100Hz
  • Remote control from PC by using optional software
  • Software code: SW/BMD
  • Voltage: 220-240V AC 110VAC
  • Frequency: 50–60 Hz 60 Hz
  • Net Weight: 5 Kg
  • Overall dimensions: 300 X 250 X 150(H) mm
    • Виробник
    Виробник Controls
    Технічні характеристики
    Завантаження даних порт Ethernet, порт RS232 або флешка USB
    Частота дискретизації до 100 Гц
    Вага (прибл.) 5 кг
    Частота 50–60 Гц
    Пам'ять 16 ГБ внутрішньої пам'яті
    Напруга живлення
    Габаритні розміри 300 X 250 X 150 мм
    70-SW/CMS - PC software for Marshall, CBR, Indirect Tensile and universal test. When used with 34-V117X, 70-T108X, T118X and T119X, also suitable for SCB (to EN 12697-44, ASTM D8044 and AASHTO TP124), IDEAL-CT and Leutner SBT tests.
