Характеристики
Standards EN 932-5, EN 933-3, EN 932-1

Manufacturer Controls

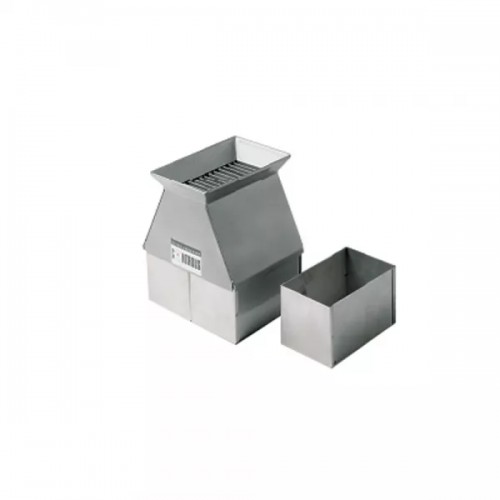

15-D0431 - Mini sample splitter 5 mm chutes

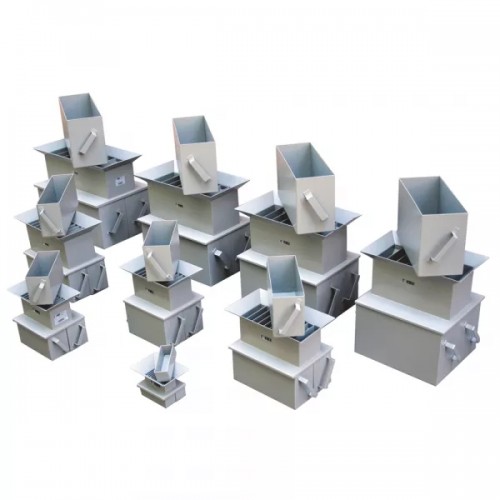

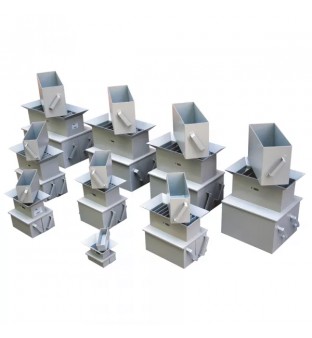

15-D0438 - EN riffle box, 7 mm slot width

15-D0438/A - EN riffle box, 15 mm slot width

15-D0438/B - EN riffle box, 30 mm slot width

15-D0438/C - EN riffle box, 50 mm slot width

15-D0438/D - EN riffle box, 19 mm slot width

15-D0438/E - EN riffle box, 25 mm slot width

15-D0438/F - EN riffle box, 38 mm slot width

15-D0438/G - EN riffle box, 64 mm slot width

15-D0438/H - EN riffle box, 45 mm slot width

Дивитися повний опис

Used to divide representative dry samples into the required batch sizes for testing. Made from sheet steel. Supplied complete with 3 metal pans.


Technical specification

Model 15- Max. size Sample mm Slot width mm Number of slots Weight kg
D0438 5 7 12 1.5
D0438/A 10 15 12 5
D0438/B 20 30 10 19
D0438/C 40 50 8 23.5
D0438/D 13 19 10 5.5
D0438/E 20 25 10 13
UD0438/F 25 38 8 19
D0438/G 50 64 8 27
D0438/H 30 45 8 18
D0431MINI 3-4 5 16 1.4
Виробник
Виробник Controls

15-D0439 - Quartering canvas 2 x 2 m

16-D1179/A - Rubber headed pestle

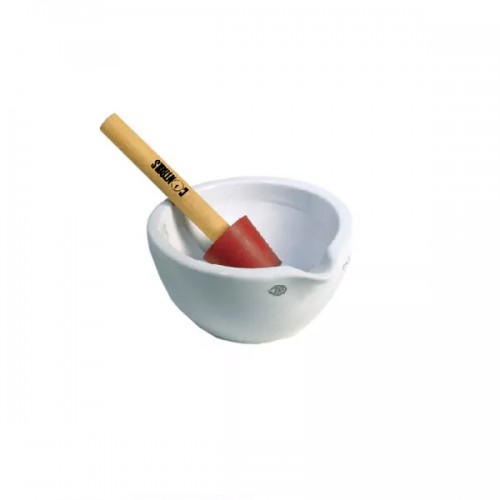

86-D1180/1 - Mortar only porcelain, 125 mm dia
