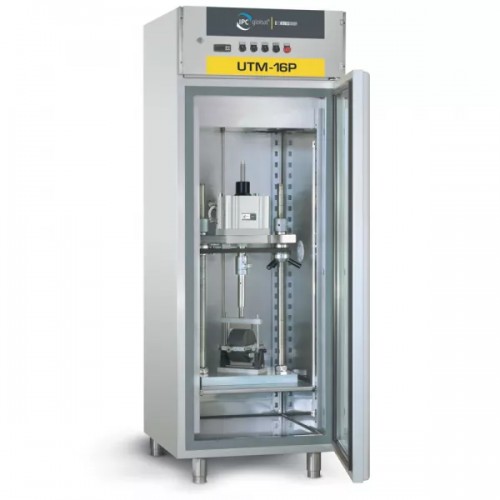

79-PV70E02 - Environmental chamber for servo-pneumatic testing machine, -25°C to +60°C.

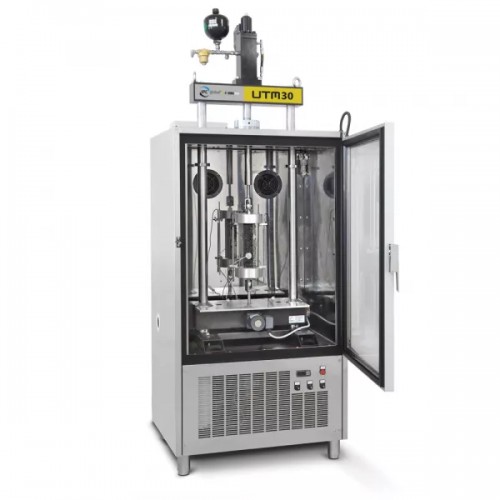

79-PV70E12 - Environmental chamber for UTM-30 servo-hydraulic machine, -25°C to +70°C

79-PV70E22 - High performance environmental chamber for UTM-30 servo-hydraulic machine, -50°C to +80°C.

79-PV70E32 -High performance environmental chamber for UTM-130servo-hydraulic machine, -50°C to +100°C.

79-PV70E42 - Environmental chamber for UTM-130.

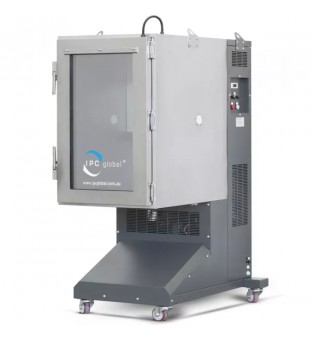

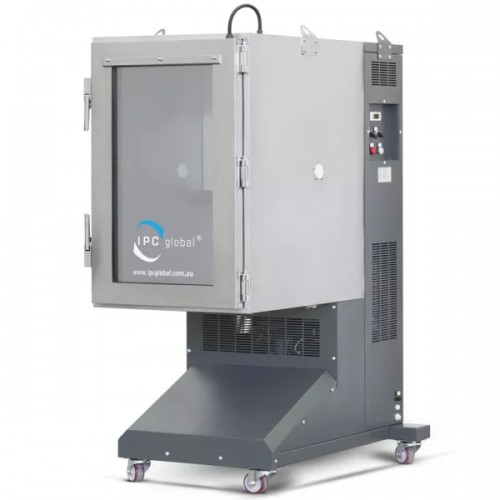

79-PV70E52 - High performance environmental chamber for UTM- 130XL servo-hydraulic machine, -50°C to +100°C

Дивитися повний опис

Збільшити

IPC Global's environmental chambers use a high quality mechanical refrigeration system and superior insulation technologies to enable users to analyze materials' properties at real-life working temperatures (up to -50 to 80/100° C) for extended periods without the need of LN2. High accuracy and total control over temperature ramps and dwells are achieved using the Programmable Digital Controller enabling users to easily perform complex test e.g. Thermal Stress Restrained Specimen Test (TSRST).

The Environmental chamber can be used as part of your Superpave performance based testing program.

Main features

Closed-loop PID temperature controller

Four access port (models for UTM-130), two access ports (model for UTM-30)

Stainless steel AISI 304, 18/10 heavy duty construction

Triple glazed, argon filled, Lo glass door

Defrost system and interior lightning

Fan forced ventilation

Ergonomic design provides easy access to chamber

Additional features for extended range models only:

Programmable digital controller - PID tuning, temperature ramps and dwells, auto-tuning, selectable sample time

Extended range maximum cooling rate of -50°C/hour (dependent on thermal mass within chamber)

Extended range programmable gradient of -20°C/hour with ramp control

Fully adjustable temperature probe for greater accuracy

Technical specification

Environmental chambers for UTM-130, UTM-130XL, UTM-30, UTM-16P

Models	79-PV70E32 Extended range	79-PV70E42	79-PV70E52 Extended range	79-PV70E12	79-PV70E22 Extended range	79-PV70E02
Compatible UTMs	UTM-130 79-PV70C05 79-PV70C06	UTM-130 79-PV70C05 79-PV70C06	UTM-130XL 79-PV70C15 79-PV70C16	UTM-30 79-PV70B12 79-PV70B02	UTM-30 79-PV70B12 79-PV70B02	UTM-16P 79-PV70A02 79-PV70A12 79-PV70A14
Temperature range	-50 to+100°C	-25 to +70°C	-40 to +100°C	-25 to +70°C	-50 to +80°C	-25 to +60° C
Temperature gradient	-20°C/hour with ramp control	-	-20°C/hour with ramp control	-	-20°C/hour with ramp control	-
Mounted on wheels	Yes	Yes	Yes	No	No	No
Power rating W	4000	4000	4000	1700	5000	1800
Dimensions (w x d x h) mm	580 x 1150 x 1750	580 x 1150 x 1750	960 x 1700 x 1800	920 X 905 X 1800	920 X 835 X 1850	710 x 805 x 2985
Weight (approx.) kg	250	210	300	220	350	170

Виробник
Виробник	Controls

79-PV70E02

79-PV70116 - Temperature measuring kit (-50 +100°C), including two probes
