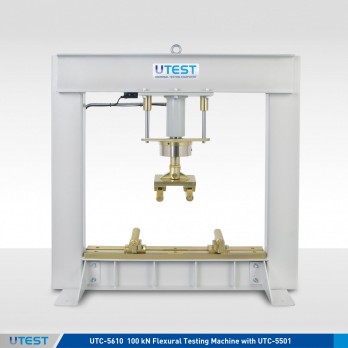

Flexural Frames Rectangle Type

Обрати іншу модель Копіювати посилання
Flexural Frames Rectangle Type
Flexural Frames Rectangle Type Увеличить
Характеристики
Standards EN 1338, 1339, 1340, 1341, 1343, 12390-5
12390-6; BS 1881; ASTM C78, C293, C496

Manufacturer UTEST
Всі характеристики
UTC-5610 - 100 kN Flexural Testing Frame, Rectangle Type

UTC-5620 - 200 kN Flexural Testing Frame, Rectangle Type

UTC-5622 - 200 kN Flexural Testing Frame, TWOFLEX

Дивитися повний опис

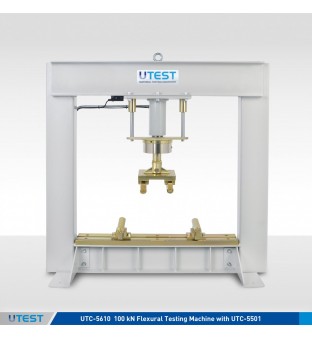

Flexural Frames Rectangle Type Збільшити

The versatile UTEST Flexural Testing Frames are designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a welded steel fabrication carrying the ram fitted to the upper crosshead. The frames have a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

Each model is designed to accept all accessories required for flexural, transverse or compression tests.

UTEST Flexural Frames models are designed to allow easy and practical front loading of the specimens.

UTC-5622 TWOFLEX frame provides the advantage of being able to perform flexural tests on longer specimens.

The load frame provides the stability needed for accurate and repeatable test re­sults over the years of operation.

All frames can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.

The main characteristics are:
  • High stability/rigidity welded assembly (200 kN/mm stiffness)
  • Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
  • Safety limit switch for piston stroke
  • High accuracy load measurement with strain gauge load cells
  • Can accept wide range of accessories for mentioned standards
  • Can be connected to any UTEST compression machine or UTEST power pack

    • Test assemblies such as;
  • Flexture strengt test of concrete beam (UTC-5501), kerb (UTC-5502) and flagstone (UTC-5504),
  • Indirect tensile strengt test of paving block (UTC-0355 and UTC-5510),
  • Splitting tensile strengt test of concrete cubes (UTC-0360) and cylinders (UTC-0350),
  • Compression strengt test of any condtruction material (UTCM-4116and distance pieces UTC-4630, UTC-4631, UTC-4633 and UTC-4634) should be ordered separately.

    • Product Code UTC-5610 UTC-5620 UTC-5622
    Capacity 100 kN 200 kN 200 kN
    Ram Travel
    		100 mm 120 mm 120 mm
    Max. Horizontal Clearance
    		720 mm 820 mm 820 mm
    Speed ResolutionMax. Clerance Between Lower Rollers
    		 600 mm 100 to 720 mm 100 to 720 mm (Parallel to frame) 720 to 1150 mm (perpendicular to frame)
    Ram return by
    		Spring Spring Spring
    Overall Dimensions
    		1170x515x1130 mm 580x960x1270 mm 1060x1290x1210 mm
    Weight (approx.)
    		170 kg 200 kg 240 kg
    Max. Vertical Clearance with UTC-5501┃UTC-5502┃with UTC-5504
    		165 mm ┃ 165 mm ┃ 165 mm 233 mm ┃ 233 mm ┃ 233 mm 140 mm ┃ 140 mm ┃ 140 mm
