Одометри з фронтальним завантаженням (Controls)

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards BS 1377:5, ASTM D2435, ASTM D3877

ASTM D4546, NF P94-091, AASHTO T216, EN 17892-5

Manufacturer Controls

Всі характеристики

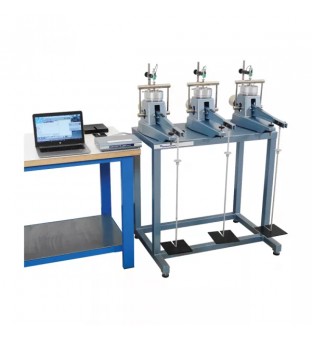

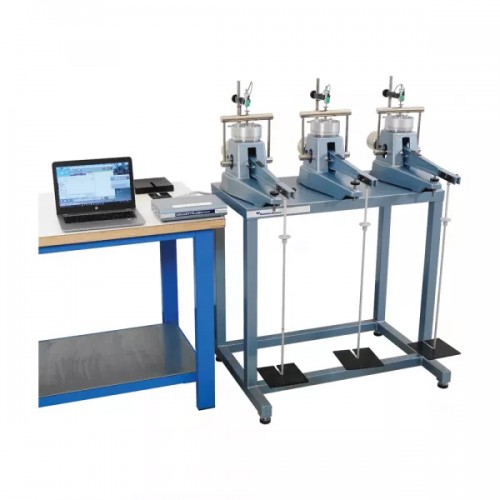

26-WF0302 - Front loading oedometer to BS 1377, ASTM D2435. With lever arm ratios of 9:1 10:1 and 11:1

Дивитися повний опис

Збільшити

This test determines the rate and magnitude of consolidation of a soil specimen restrained laterally and subjected to a number of successive increments of vertical loads.

The oedometer consists of a rigid aluminium alloy frame to avoid any distortion under load. The lever arm assembly is supported in precision self-aligning bearings and has three hanger positions for 9:1, 10:1 and 11:1 ratio. The oedometers fit with linear potentiometric transducers, can be connected to Data acquisition unit.

The consolidation test can also be automatically performed with the Automatic Computerized oEdometer.

Analog configuration is composed by:

Oedometer

Bench (see accessories)

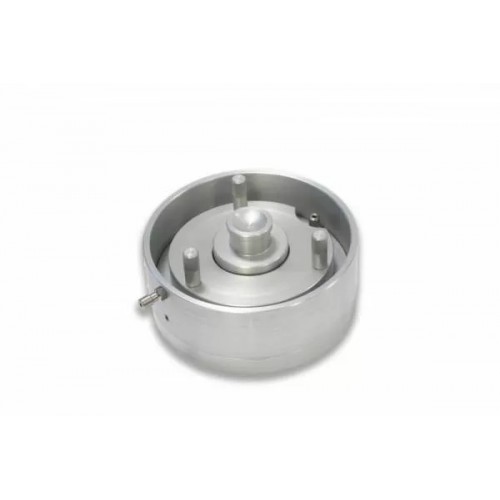

Consolidation cells (see accessories)

Dial gauge (see related products)

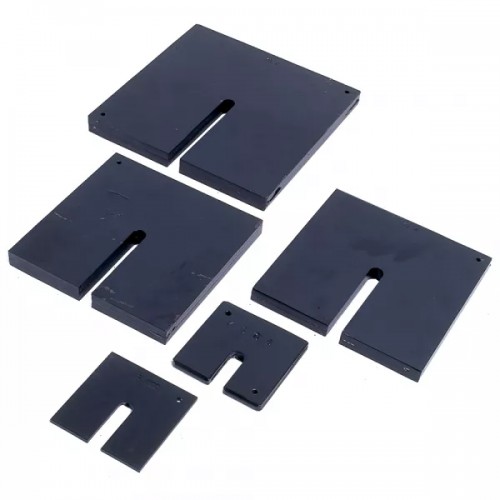

Weights (see accessoreis)

Digital configuration is composed by:

Oedometer

Bench

Consolidation cells (see asccessories)

Displacement transducer (see related products)

Data acquisiton (see related products)

Weights (see accessories)

Main features

Compact and robust design

3 lever arm ratio

Screw jack support

Same cell for standard and permeability test

Possible connection with Data acquisition and processing system

Technical specifications

Max loading (using 11:1 beam ratio): 1848 kg, corresponding to 9.061 MPa (92.40 kgf/cm2) on 20 cm2 specimen (50.47 mm dia.)

Overall dimensions: 500x200x750 mm (height less hanger xwidthx length)

Weight approx.: 21 kg

Виробник
Виробник	Controls

Технічні характеристики
Максимальне навантаження	1848 кг
Вага (прибл.)	21 кг
Габаритні розміри	500x200x750 мм

26-WF0302

26-WF0312 - Oedometer bench to accept up to three oedometers. Complete with locking nuts.

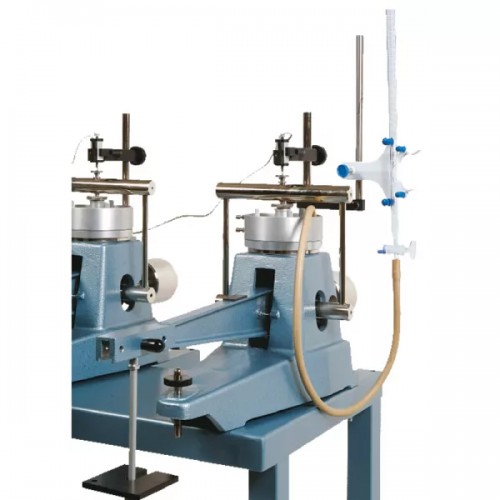

26-WF0338/A - Permeability attachment with 50ml graduated burette suitable for standard oedometer

30-WF6016/T1 - Consolidation Geo-Analysis for MS EXCEL Template according to BS 1377:5

30-WF6016/T8 - Consolidation Geo-Analysis template conforming to ASTMD2435

30-WF6016/T8A - Consolidation Geo-Analysis template conforming to ASTM D4546
