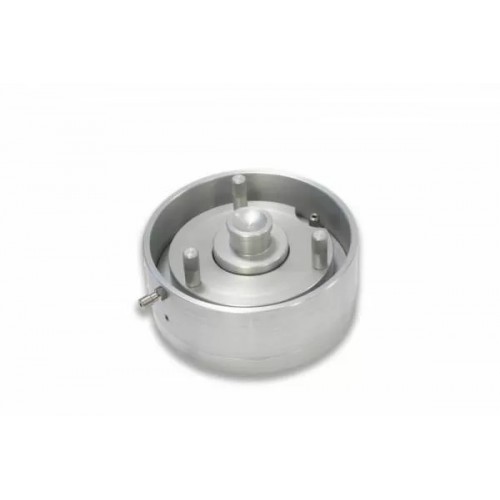

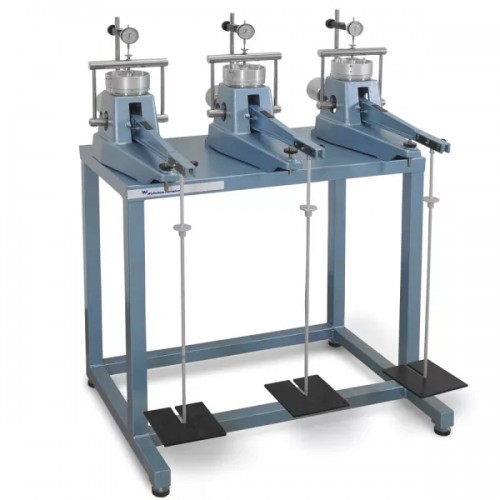

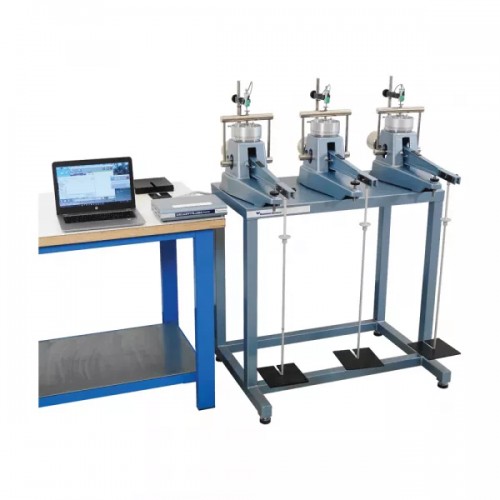

Consolidation cell are used togheter with front loading odeometer apparatus or Automatic Computerized oedometer (ACE EmS) for determining the rate and the magnitude of consolidation.
It can be used also for swelling tests and permability test

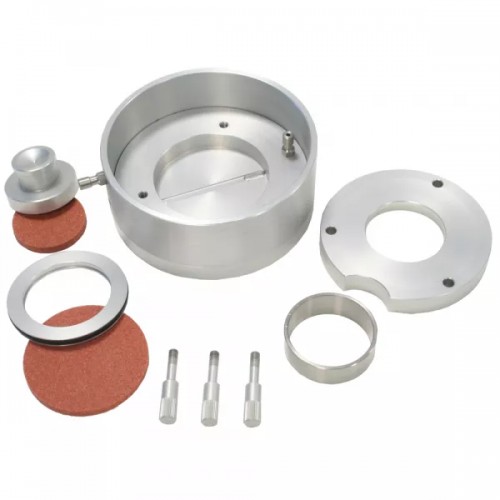

The cell is contructed of anodized aluminium and come complete with all parts shown in the picture.

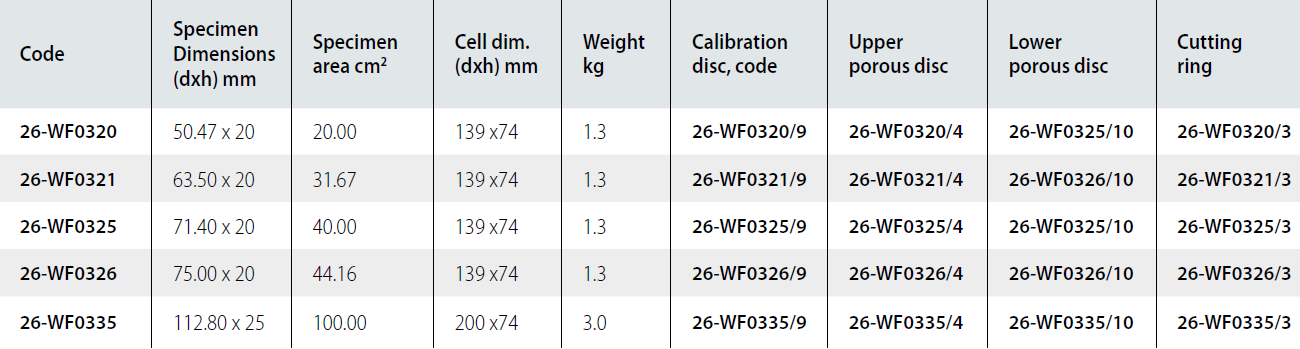

Condoilisation cells are avaibleble with the following noonimal dimensions: 50.47mm, 63.50mm, 71.40mm, 75mm, 112.80mm
| Виробник |
| Виробник |
Controls |
26-WF0320/3 - Cutting ring for 50.47mm diameter samples
26-WF0321/3 - Cutter ring for 63.50mm diameter samples
26-WF0325/3 - Cutter ring for 71.40mm diameter samples
26-WF0326/3- Cutter ring for 75mm diameter samples
26-WF0335/3 - Cutter ring for 112.80mm diameter samples
26-WF0320/9 - Calibration disc for 50.47mm diameter samples
26-WF0321/9 - Calibration disc for 63.50mm diameter samples
26-WF0325/9 - Calibration disc for 71.40mm diameter samples
26-WF0326/9 - Calibration disc for 75mm diameter samples
26-WF0335/9 - Calibration disc for 112.80mm diameter samples
26-WF0320/4 - Upper porous stone for 50.47mm diameter standard and permeability cells
26-WF0325/10 - Lower porous stone for 50.47 and 71.40mm diameter
26-WF0321/4 - Upper porous stone for 63.50mm diameter standard and permeability cells
26-WF0326/10 - Lower porous stone for 63.50 and 75mm diameter
26-WF0325/4 - Upper porous stone for 71.40mm diameter standard and permeability cells
26-WF0326/4 - Upper porous stone for 75mm diameter standard and permeability cells
26-WF0335/10 - Lower porous stone for 112.80mm diameter standard and permeability cells
26-WF0335/4 - Upper porous stone for 112.80mm diameter standard and permeability
