Hydraulic Shrinkage Mould with Measurement Apparatus

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards UNI 11307; EN 12390-16;

Beam mould 100x100x500 mm

Weight (approx) 19 kg

Shrinkage measurement apparatus 14 kg

Manufacturer Controls

Всі характеристики

55-C0100/MB11 - Concrete beam mould 100x100x500mm

55-C0115/11 - Steel pins for concrete shrinkage determination toUNI 11307. Pack of 10 pieces, to be glued on concrete beam

55-C0115/3D - Skrinkage measuring device for 100 x 100 x 500 mm specimens complete with digital gauge 25.4 x 0,001mm with output for PC connection (special cable required)

Дивитися повний опис

Збільшити

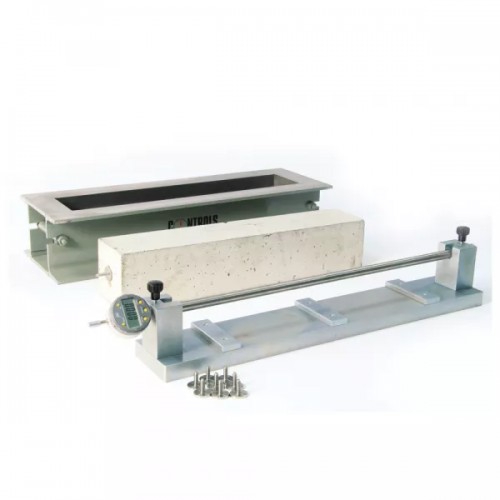

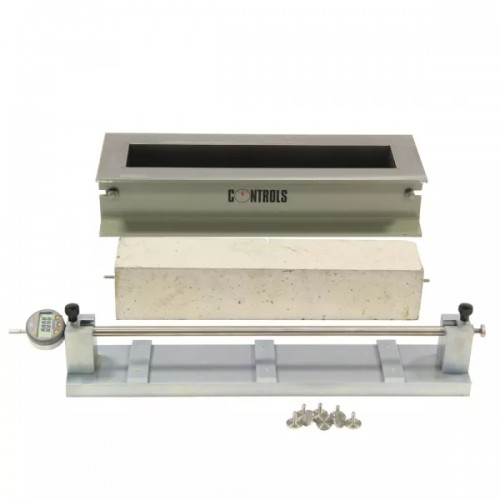

Shrinkage mould

This method is suitable for the determination of hydraulic axial shrinkage on concrete beams during hardening. According to this method, steel pins shall be glued on the head surfaces of the specimen in order to measure the dimensional changes of specimens properly stored in temperature and specified humidity conditions. The test is performed with the 55-C0100/MB11 beam mould and the shrinkage measurement by the 55-C0115/3D apparatus.

Beam mould

Made of precisely machined cold finished steel, 100x100x500 mm

Weight approx.: 19 kg

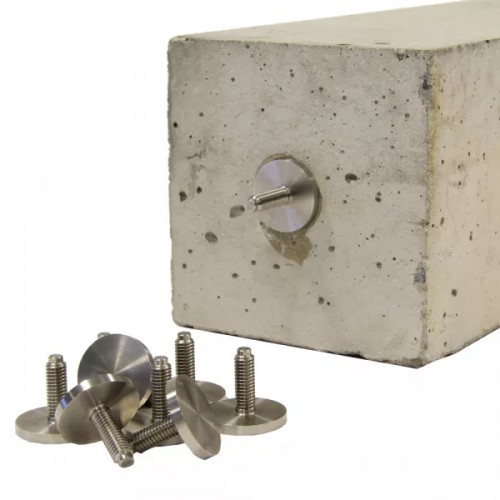

Steel pins

To be glued on the beam ends surfaces

Shrinkage measurement apparatus

Metal stand, fitted with reference bar and digital gauge 25.4 x 0.001 mm, with output for PC. Cable not included. See accessories.

Weight approx. 14 kg
