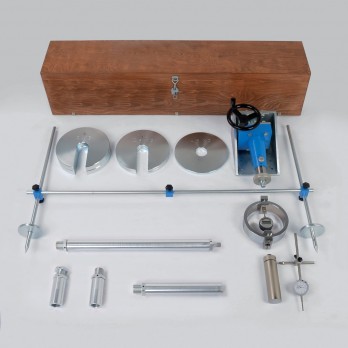

Прилад CBR в комплекті з дерев’яним кейсом

Standards: BS 1377:9; 1924:2

Product Code

• UTS-0865B In-situ CBR Test Apparatus
• UTS-0865B Extension Rod, 1m, for UTS-0865 (Supplied with a nipple)
• UTS-0867Conversion Frame

The UTS-0865B In-situ CBR Test Apparatus, 50 kN capacity,is used for the on-site determination of the bearing capacity of soils used in road construction.

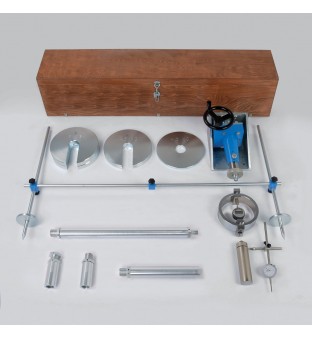

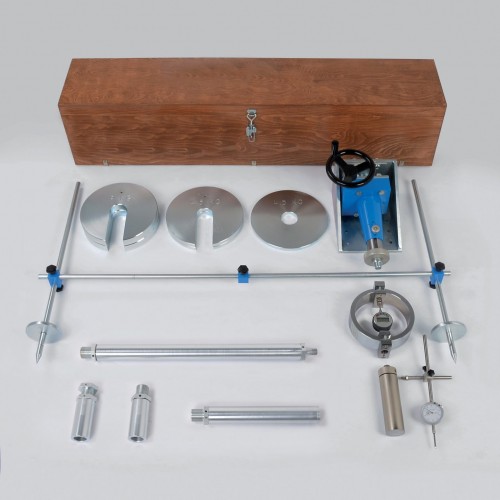

The set consists of:

• 50 kN capacity mechanical jack with ball seating
• 50 kN capacity load ring with an adaptor
• Analog penetration dial gauge (30 mm travel x 0.01 mm) with connection part
• CBR Penetration piston (UTS-0870)
• Set of extension rods (2 pcs. 110 mm, 1 pcs. 300 mm and 1 pcs. 600 mm length) 3 pcs. nipples, a height adjustment bolt and its nut)
• Datum bar assembly with two tripod stands
• 4.5 kg (10lb) annular surcharge weight
• 4.5 kg (10lb) slotted surcharge weight (2 pcs.)
• 9 kg (20lb) slotted surcharge weight (2 pcs.)
• Vehicle bracket
• Wooden carrying case

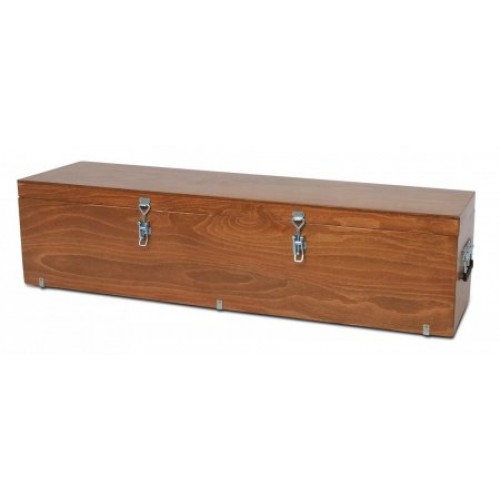

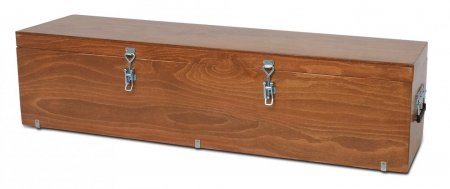

Wooden Carrying Case

for UTS-0865B

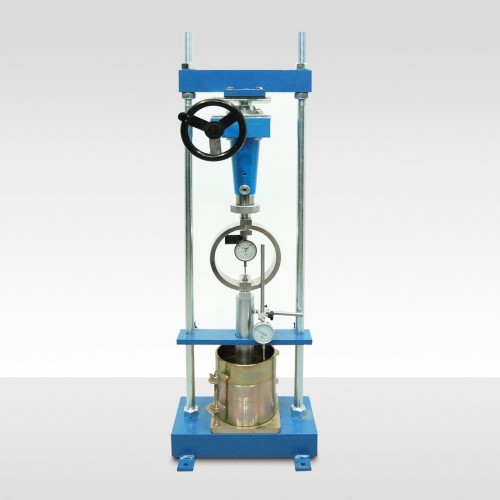

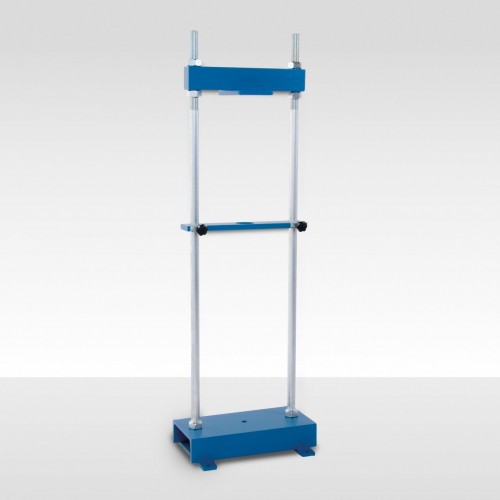

In-situ CBR Test Apparatus, used for the in-situ determination of the bearing capacity of soils.The UTS-0867 Conversion Frame is used to convert the IN-situ CBR test to a mechanical laboratory CBR test machine.

The system is easily assembled onto the conversion frame with the addition of some of the accessories included in UTS-0865. The frame is used with the jack, load ring, CBR mould and penetration piston.

Supplied complete with wooden box. 10 kN load ring, 1m extension rod with nipple(UTS-0866) should be ordered seperately.
