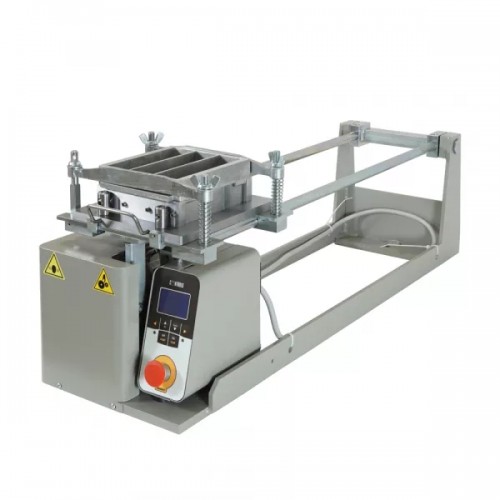

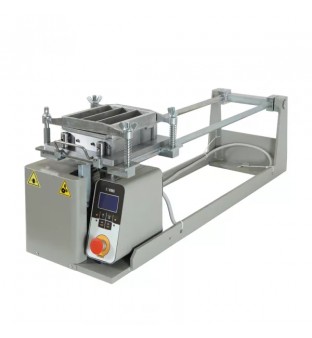

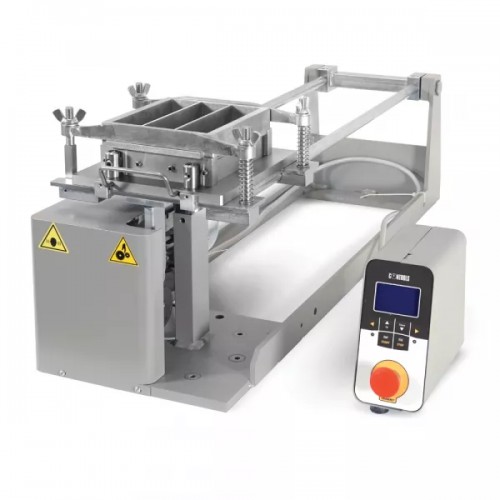

This machine, used to compact the 40x40x160 mm cement prisms in the mould, has been developed to fulfill precisely the EN and ISO standards. Each single requirement as, for example, weigh distribution, dimensions, structural design and working cycle is individually checked and verified.
Prism moulds, feed hopper, scrapers and glass plate are not included and have to be ordered separately. See accessories.
Caracterìsticas Principales
Easy verification of compliance to standards: weight distribution, dimensions etc.
Rigid structure assuring stability and no distortion
High resolution graphical display 128x80 pixels and 6 keys membrane keyboard
Double test procedure: it is possible to set the target revolutions / drops or the total working time

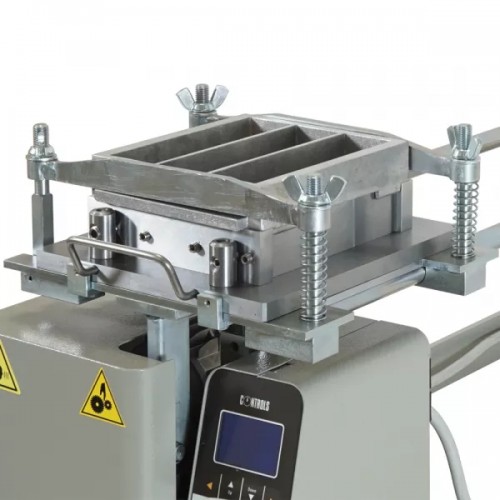

Rapid mould lock and release system
Noise reduction cabinet available as option
Especificaciones Tecnicas
Highly rigid structure, joints between main parts (table – arms – base) easily removable to check weights
Drop height: 15 mm. Since the mechanical parts are subject to wear and tear and this height tends to change with use, the hammer has an adjustable height, making it possible to restore the initial drop height
Motor: power: 250 W, 60 r.p.m.
High resolution graphical display 128x80 pixels and 6 keys membrane keyboard
8 languages can be set: Italian, English, French, Spanish, Polish, Portuguese, Romanian and Cesky
Double test procedure: it is possible to set the target revolutions / drops or the total working time
Overall dimensions (lxdxh): 310x1000x385 mm
Weight approx.: 55 kg
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Потужність |
250 Вт, 60 об./хв. (потужність двигуна) |
| Вага (прибл.) |
55 кг |
| Електроживлення |
230В, 50Гц, 1фаза |
| Габаритні розміри |
310x1000x385 мм |

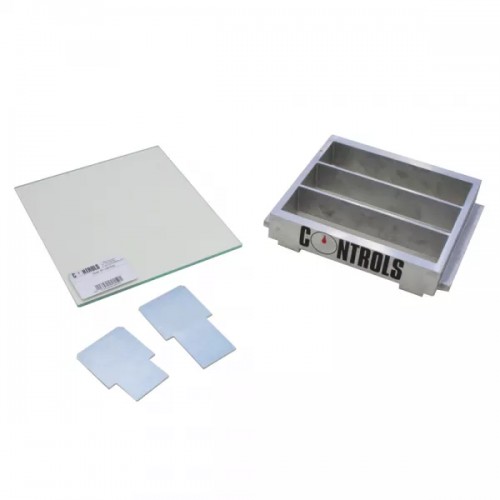

65-L0010/A1 - Pair of scrapers to EN 196-1
65-L0010/A2 - Glass plate 210 x 185 x 6 mm
65-L0011 - Feed hopper

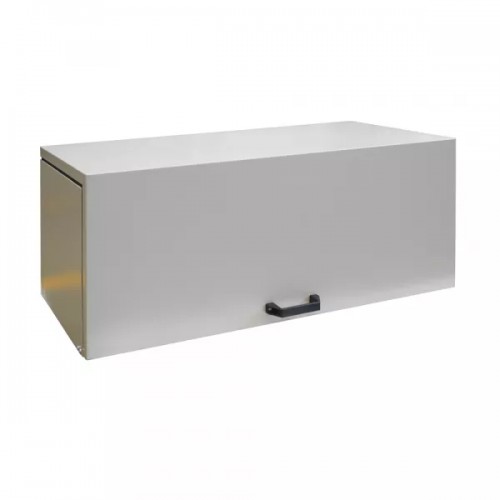

65-L0012/CAB - Noise reduction cabinet for joliting table model 65-L0012/Gx
