Коробка для зсуву

Обрати іншу модель Копіювати посилання
Коробка для зсуву
Коробка для зсуву Увеличить
Характеристики
Standards ASTM D3080, AASHTO T236, BS 1377:7, EN 17892-10

Manufacturer Controls
Всі характеристики
27-WF0215/B - Shear box for square specimen 60x60mm

27-WF0216/B - Shear box for square specimen 100x100mm

27-WF0219/B - Shear box for 63.5mm dia samples

27-WF0222/B - Shear box assembly for 100mm diameter sample

27-WF0217/B - Shear box for 50mm dia samples

27-WF0218/B - Shear box for 60mm dia samples

Дивитися повний опис
Коробка для зсуву Збільшити

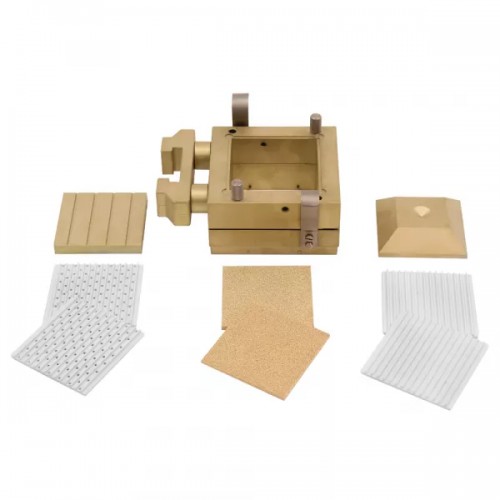

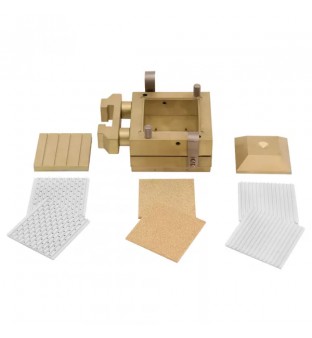

These shear box assemblies are designed to be used with our 27-WF20D60 Digishear, 27-WF21A60 Autoshear and 27-WF21E80 Shearmatic shear testing machines.

Manufactured from brass and designed to contain the water that surrounds the specimen.

They consist of a square box with a rigid walled round or square hole complete with:
  • adapter loading pad
  • retaining plate
  • 2 plastic grids
  • 2 perforated plastic grids
  • 2 bronze sintered porous plates.

    • Sample cutter and extrution dolly for sample preparation should be oreded separately (see accessories)

    Technical specifications

  • Box Material: Brass
  • Grids and perforate grid material: Plastic
  • Porous plate material: Sintered bronze
  • Nominal samle dimension: 60 (square); 100 (square); 50 (round); 60 (round); 63.5 (round); 100 (round)
  • Sample height: 20 mm
    • Weight approx.: from 2.5 to 4 kg
    Виробник
    Виробник Controls
    Технічні характеристики
    Вага (прибл.) від 2,5 до 4 кг
    Висота зразка 20 mm
    Матеріал корпусу латунь
    27-WF0215/B2 - Loading pad for 60mm square samples

    27-WF0215/B3 - Retaining plate for 60mm square samples

    27-WF0215/B5 - Plane grid for 60mm square samples.

    27-WF0215/B6 - Perforated gridfor 60mm square samples.

    27-WF0215/4 - Porous plate for 60mm square samples

    27-WF0216/B5 - Plane grid for 100mm square samples.

    27-WF0216/B6 - Perforated grid for 100mm square sample.

    27-WF0216/4 - Porous plate for 100mm sqauare samples

    27-WF0217/4 - Porous plate for 50mm dia samples

    27-WF0218/4 - Porous plate for 60mm dia round samples

    27-WF0219/4 - Porous plate for 63.5mm dia samples

    27-WF0222/4 - Porous plate for 100mm

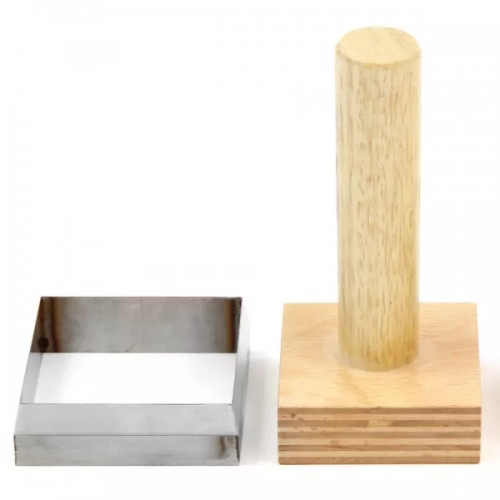

    27-WF0215/B7 - Sample cutter for 60mm square samples

    27-WF0216/B7 - Sample cutter for 100mm square samples

    27-WF0217/B7 - Sample cutter for 50mm dia samples

    27-WF0218/B7 - Sample cutter for 60mm dia samples

    27-WF0219/B7 - Sample cutter for 63.5mm dia samples

    27-WF0222/B7 - Sample cutter for 100mm

    27-WF0215/8 - Extrusion dolly for 60mm square samples

    27-WF0216/8 - Extrusion dolly for 100mm square samples

    27-WF0217/8 - Extrusion dolly for 50mm dia samples

    27-WF0218/8 - Extrusion dolly for 60mm dia samples

    27-WF0219/8 - Extrusion dolly for 63.5mm dia samples

    27-WF0222/8 - Extrusion dolly for 100mm
