Large Curing Tanks ua

Standards: EN 12390–2; ASTM C31, C192, C511; AASHTO T23, T126

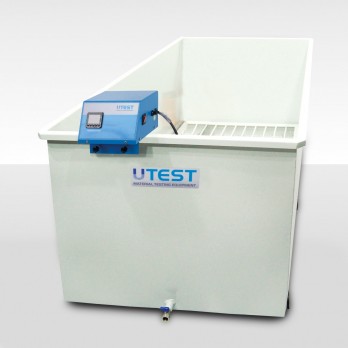

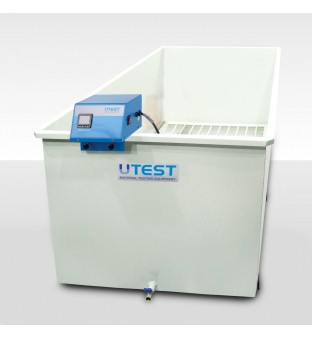

• UTC-0950 Large Metal Curing Tank
• UTC-0952 Set of Removable Upper Racks for UTC-0950, (6 pieces)
• UTC-0953 Curing Tank Heater for UTC-0970 (6,5 cm connecting channel and 50 cm resistance length)
• UTC-0954 Curing Tank Heater for UTC-0950 and UTC-0965 (3 cm connecting channel and 50 cm resistance length)
• UTC-0955 Circulating Pump
• UTC-0960 Large Plastic Curing Tank
• UTC-0962 Wide Plastic Curing Tank
• UTC-0956 Curing Tank Heater for UTC-0960 and UTC-0962 (6,5 cm connecting channel and 70 cm resistance length)

The UTC-0950 steel, UTC-0960 and UTC-0962 Plastic Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted and can be kept constant by an electric resistance incorporating a digital thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.

The UTC-0950 is manufactured from powder coated sheet steel. Set of removable upper racks (6 pieces) to hold concrete cubes are available on request. UTC-0960 and UTC-0962 plastic tanks are reinforced with a metal carcass.

Running temperature for UTC-0855 Circulating Pump is max. 300C.

Appropriate curing tank heater, circulating pump and UTC-0952 for UTC-0950 (in case of need ) should be ordered separately.

All Curing Tanks are supplied complete with:

• A Base Metal Rack
