Length Comparator

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards UNI 8147, UNI 8148, EN 1367-4

EN 12617-4, EN 12808-4, ASTM C151, ASTM C490

UNI 8520:22, UNI 6687,EN 680

Manufacturer Controls

Всі характеристики

62-L0035/A - Length comparator digital version. Comprehends digital gauge with output for PC connection (special cable required) - reference bar not included

Дивитися повний опис

Збільшити

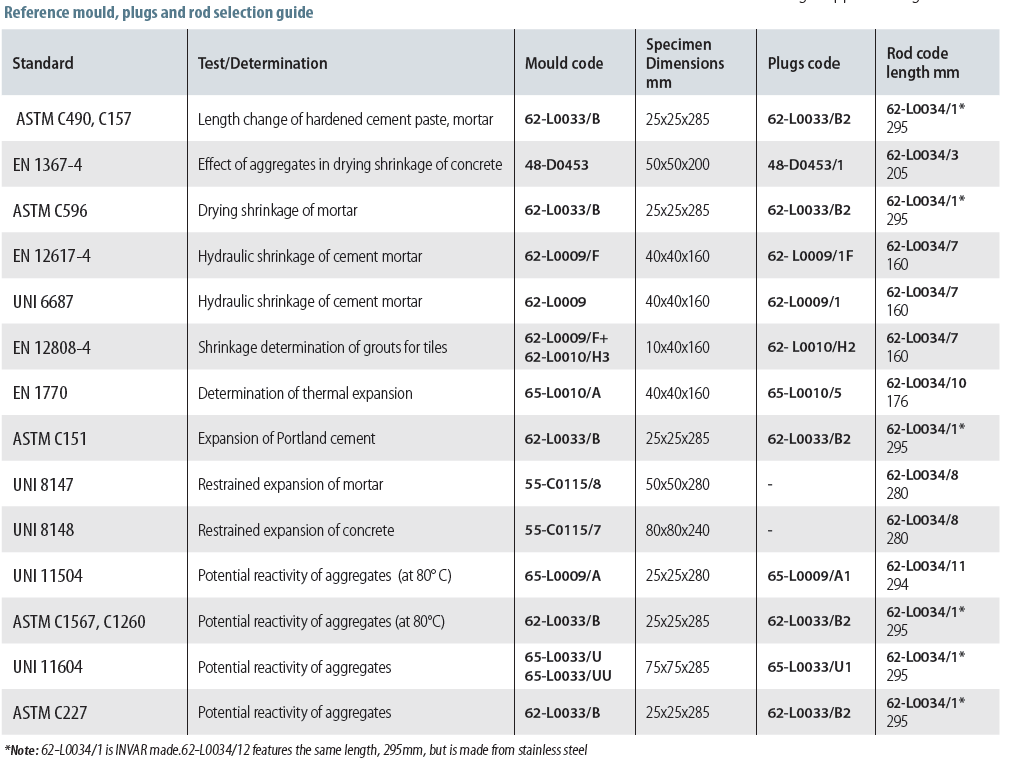

This apparatus is used for a number of length measurements concerning mainly cement and mortar specimens with different lengths. For this reason the reference rods are not included and have to be ordered separately, consulting for an easy and quick choice, the specification table.

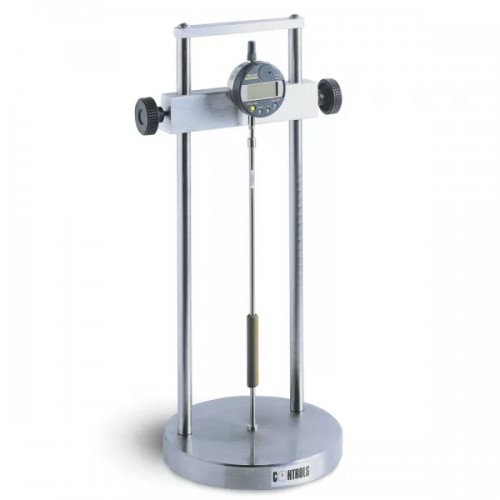

Two column steel frame with adjustable top anvil to suit the specimen length. Fit with a digital gauge 12.5x0.001 mm.

Dimensions: 180x180x490 mm

Weight approx.: 10.5 kg
