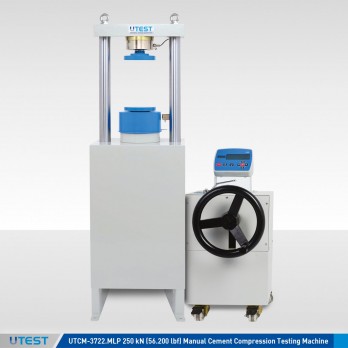

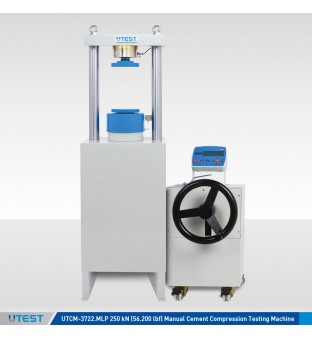

The UTCM-3722.MLP and UTCM-3742.MLP single and double testing chamber Manual compression and flexure testing machines are designed to perform reliable strength and flexure tests on mortar specimens. The manual machines are especially suitable for on-site applications when electric power supply is not available.
Being a low cost alternative, UTEST manual testing series combine precision and simplicity with the unique design of the manual power pack which enables even an inexperienced operator to perform excellent compression and flexure tests on-site.
These manual testing machines conform to the standards EN 196-1, 459-2, 1015-11, 13454-2; ASTM C 109, C348, C349 by using suitable accessories. They also meet with the requirements of CE norms with respect to operator health and safety.
The UTEST manuel cement compression and flexure testing machines consist of very rigid two column single or double chamber frame, manuel power pack and data acquisition system LPI.
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.

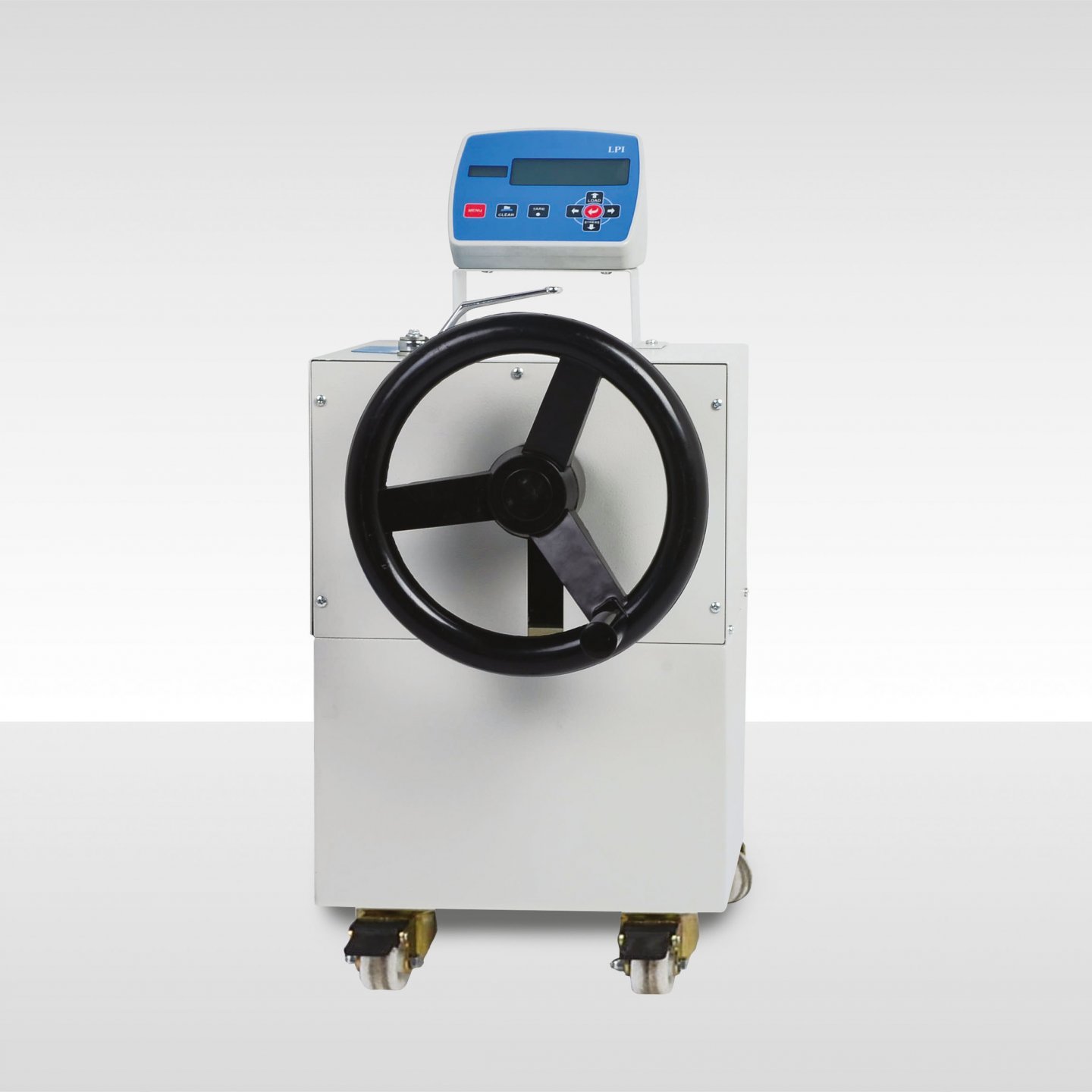

The UTC-4810 Hand Operated (Manual) Hydraulic Power Pack has been designed to be used with range of UTEST Compression machines and flexural frames to use on site and/or where electricity is not available.
The pump is equipped with a radial piston pump so that the loading is continuous as long as user turns the wheel installed on the pump. The loading is uniform as on an automatic machine.
The LPI Battery Operated Digital Readout Unit (UTC-4920LP) has been designed to use with load cells or pressure transducers on different material test applications.
The unit is operates with DC voltage source of -1,5 to 1,5 volts.
| Model | UTCM-3722 | UTCM-3742 | |
| Test Type | Compression | Flexure | Compression |
| Capacity | 250 kN (56.200 lbf) | 15 kN (3370 lbf) | 250 kN(56.200 lbf) |
| Class 1 Measuring Range | 1 % for 250 kN | 1 % for 250 kN | 1 % for 250 kN |
| The Roughness Value for Texture of Loading Platens | ≤3.2 μm | ≤3.2 μm | ≤3.2 μm |
| Lower Platen Dimensions | 165 mm (6,5”) | 165 mm (6,5”) | 165 mm (6,5”) |
| Upper (spherical seated) Platen Dimensions | 165 mm (6,5”) | 165 mm (6,5”) | 165 mm (6,5”) |
| Maximum Vertical Clearance Between Platens | 237 mm (9,3”) | 237 mm (9,3”) | 237 mm (9,3”) |
| Piston Diameter | Ø160 mm (6,3”) | Ø160 mm (6,3”) | Ø160 mm (6,3”) |
| Maximum Piston Movement with Limit Switch | 20 mm (1,18”) | 20 mm (1,18”) | 20 mm (1,18”) |
| Horizontal Clearance | 300 mm (11,8”) | 300 mm (11,8”) | 300 mm (11,8”) |
| Oil Capacity | 13 L | 13 L | 13 L |
| Rapid Approach Rate | 50 mm/min 2 inc/min | 50 mm/min 2 inc/min | 50 mm/min 2 inc/min |
| Dimensions (WxLxH) | 760x500x1580 mm (30”x19,7”x62,2”) | 950x500x1580 mm (37,4”x19,7”x62,2”) | 950x500x1580 mm (37,4”x19,7”x62,2”) |
| Weight | 230 kg (518 lbs) | 320 kg (705 lbs) | 320 kg (705 lbs) |
The Maximum horizontal clearance for placing the sample is limited by the border of the platens. Sample must be placed such that its ends will not overlap the ends of platens and it must be centered perfectly.The minimum vertical clearance for the specimen can be adjusted using the distance pieces.
| Виробник | |
| Виробник | Utest |
| Технічні характеристики | |
| Ємність масла | 13 л |
| Діаметр поршня | Ø160 мм (6,3”) |
| Діапазон вимірювання класу 1 | 1 % для 250 кН |
| Значення шорсткості для текстури завантажувальних плит | ≤3,2 мкм |
| Максимальний вертикальний зазор між пластинами | 237 мм (9,3”) |
| Максимальний рух поршня з кінцевим вимикачем | 20 мм (1,18”) |
| Розміри верхньої (сферичної посадки) плити | 165 мм (6,5”) |
| Розміри нижньої плити | 165 мм (6,5”) |
| Габаритні розміри | 760x500x1580 мм (для моделей UTCM-3722)/ 950x500x1580 мм (для моделей UTCM-3742) |
| Вага | 230 кг (для моделей UTCM-3722)/ 320 кг (для моделей UTCM-3742) |
