Manual Compression Testing Machines

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards ASTM C39, C42

Manufacturer UTEST

Всі характеристики

UTC-4602.MLP - 600 kN (135000 lbf) Manual Compression Testing Machine with Ø165mm Bearing Blocks for Cylinders, ASTM & AASHTO

UTC-4702.MLP - 1100 kN (245000 lbf) Manual Compression Testing Machine with Ø165mm Bearing Blocks for Cylinders, ASTM & AASHTO

UTC-4713G.MLP - 1500 kN General Purpose Manual Compression Testing Machine with Ø216mm Loading Platens for Cubes and Cylinders

Дивитися повний опис

Збільшити

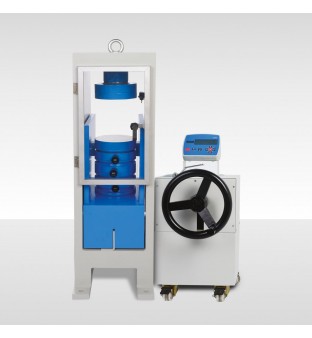

The UTEST 600 kN, 1100 kN and 1500 kN capacity Manual Compression Testing Machines are designed to perform reliable compression tests on concrete specimens especially suitable for on-site applications when electric power supply is unavailable.

Being a low cost alternative, the UTEST manual testing series combines precision and simplicity with the unique design of the manual power pack which is hand operated and enables even an inexperienced operator to perform excellent compression and flexure tests on-site.

The machines are supplied in Class A starting from with the5 % of the machine capacity.

With their exceptional performance, the machines consist of a heavy duty welded frame and hand operated hydraulic power pack with LPI Battery Operated Digital Readout Unit.

UTC-4680 Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

ASTM & AASHTO LOW CAPACITY COMPRESSION TESTING FRAMES FOR CYLINDERS
Models	UTC-4602.MLP	UTC-4702.MLP
Product Photo
Capacity	600 kN (135000 lbf)	1100 kN (245000 lbf)
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 165 mm (6,50")
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 165 mm (6,50")
Surface Hardness of Bearing Blocks	55 HRC
Flatness Tolerance	0,02mm 0/150mm (0,001”/6”)
Piston Diameter	150 mm (5,9”)	190 mm (7,48”)
Piston Stroke	50 mm (1,97”)	350 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4”)	380 mm (15”)
Horizontal Clearance (B)	230 mm (9,06”)	270 mm (10,6”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) (**)	Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) Ø160x320 mm
Power	550 W	550 W
Oil Capacity	20 L (0,7 ft3)	20 L (0,7 ft3)
Maximum Working Pressure	340 Bar	370 Bar
*Dimensions (wxlxh) (AxdxF)**	570x454x922mm 22,44”x17,87”x36,3”	610x454x1042mm 24,02”x17,87”x41,02”
Weight	330 kg (728 lbs)	439kg (968 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680

(d*) depth

(**) Limited by capacity of the frame

The Machines are supplied complete with;

UTC-4601.MLP and UTC-4602.MLP: 100 mm (3,93”), 50 mm (1,97”), 30 mm (1,2”) height x Ø165 mm (Ø 6,5”) distance pieces

UTC-4701.MLP, UTC-4702 and UTC-4712.MLP: 100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) height x Ø165 mm (Ø 6,5") distance pieces.

Removable transparent front and rear safety doors

The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

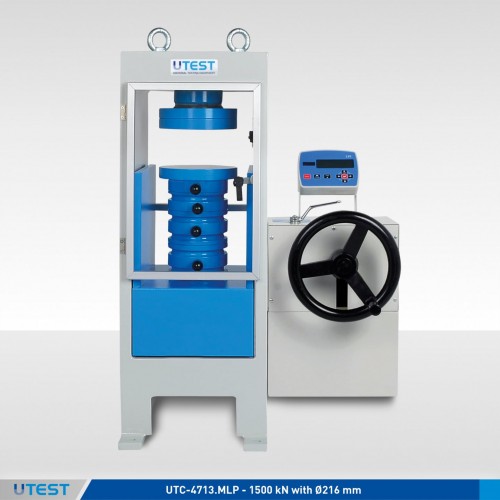

GENERAL PURPOSE MANUAL COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models	UTC-4713G.MLP
Product Photo
Capacity	1500 kN
Frame Type	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm (8,5”)
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 216 mm (8,5”)
Surface Hardness of Bearing Blocks	55 HRC
Flatness Tolerance	0,05 mm
Piston Diameter	230 mm
Piston Stroke	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	370 mm
Horizontal Clearance (B)	320 mm
For Cylinder Specimens Sizes	Ø160x320 mm
For Cubes Specimens Sizes (up to)	150 mm
*Dimensions (wxlxh) (AxdxF)**	680x500x930 mm
Weight	590 kg
Pedestal (Optional)	UTC-4680

The machine is supplied complete with;

100 mm, 50 mm and 2 pcs. 30 mm xØ 165mm(6,5”) distance pieces

Removable transparent front and rear safety doors

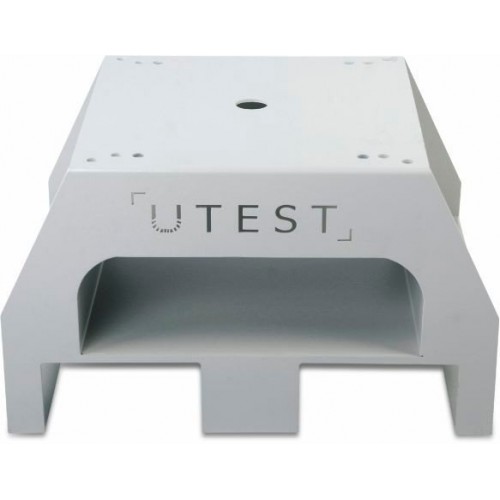

PEDESTAL FOR FRAMES WITH WELDED WALLS

The pedestals make it easier for the user to placement of specimens in the frames for compression test.
