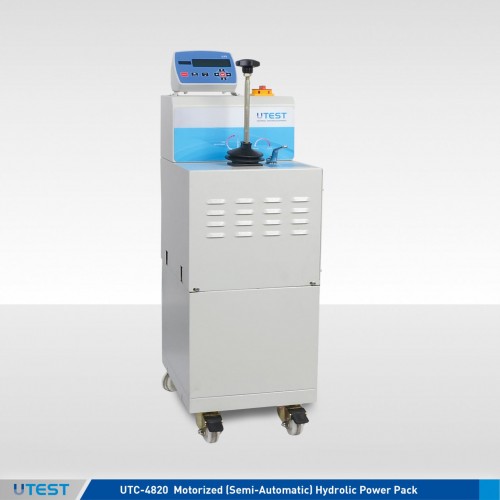

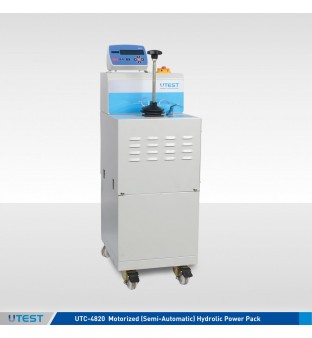

Motorized (Semi-Automatic) Power Pack

The UTC-4820 Motorized (Semi-Automatic) Power Pack, controlled by a pressure rate control valve is designed to supply the required oil to the load frames for loading. The power pack can load different frames with required pace rates. A rapid approach pump is supplied as standard. The power pack is equipped with a safety valve (maximum pressure valve) to avoid machine overloading. Maximum working pressure of the system is 400 bar.

UTC-4920LP is used with UTC-4820 Motorized (Semi-Automatic) Hydrolic Power Pack for reading the applied load by pressure transducer during the compression tests.Plase see the page of UTC-4920LP “LPI Battery Operated Digital Read-Out Unit” for details of the properties.

UTC-4920LP Unit should be ordered separately.

On the dual stage pump, a high delivery low pressure gear pump is used for rapid approach, while a low delivery high pressure durable variable output pump is used for test execution. Rapid approach property of the machine shortens the time interval from when the piston starts moving until the upper platen touches the specimen and helps to save a great amount of time in a busy test laboratory.

A distribution block is used to control the oil flow direction supplied by the dual stage pump which has the safety valve and pressure relief valve mounted upon it.

The tank (20 L capacity) includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. Hydraulic motor oil number 46, must be used.
