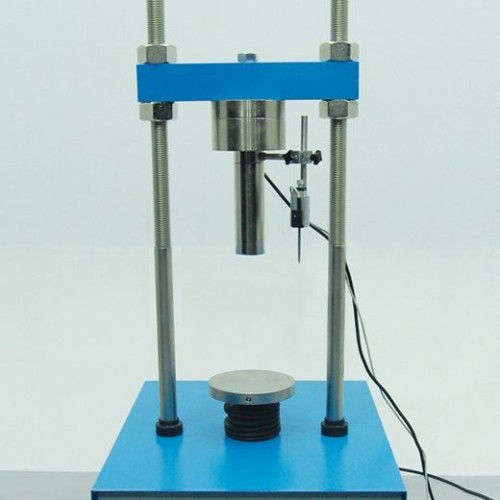

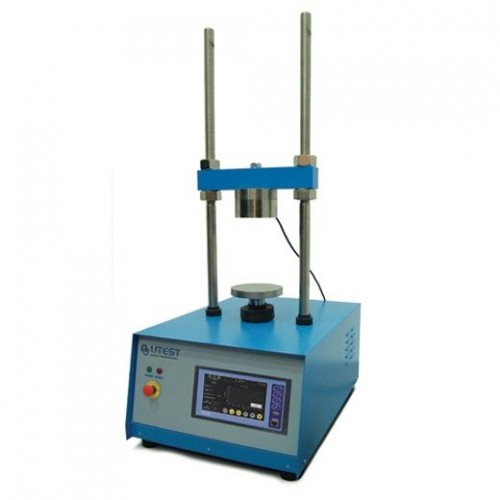

Multiplex Machine is used to make Uniaxial, CBR and Marshall Tests. 50 kN capacity Multiplex Machine is equipped with a servo motor and BC100 TFT graphics data acquisition and control system. Suitable for CBR, Marshall, Triaxial and Uniaxial Tests and similar tests with appropriate accessories. The machine is also capable of doing load controlled tests. UTM-0108 Multiplex Machine is composed by a robust and compact two column frame with adjustable upper cross beam.
Test accessories should be ordered separately according to the test
Multiplex Machine is supplied complete with:
- Load Cell, 50 kN
- Displacement Transducer, 25x0,001 mm
Main features
- Can make test with displacement or load control
When the machine used for Marshall Test
- Automatically calculates flow and stability values
When the machine used for Load Conrol Type Tests different type of specimens
- The stress is shown
- Real time display of test graph
- CPU card with 32-bit ARM RISC architecture
- Permanent storage capacity up to 10000 test results
- 4 analog channels (it would be simultaneous or not depending on the application at the factory) for one analog channel for high capacity load cell, one analog channel for displacement transducer, one analog channel for low capacity load cell and one analog channel for pressure transducer for oil-water constant pressure unit
- Programmable digital gain adjustment for load-cell, pressure transducers, strain-gauge based sensors, potentiometric sensors, voltage and current transmitters
- 1/256000 points resolution per channel
- 10 data per second sample rate for each channel
- Ethernet connecting for computer interface
- 800x480 resolution 65535 color TFT-LCD industrial touchscreen
- 4 main function keys
- Multi-language support
- 3 different unit system selection; kN, Ton and Lb
- Real-time clock and date
- Test result visualization and memory management interface
- Remote connection through ethernet
- USB flash disc for importing test results and for firmware
- USB printer support for inkjet and laser printers (ask for compatible models)
- Camera support for real-time video recording during test (ask for compatible models)
- Free of charge PC software for the test control and advanced report generation

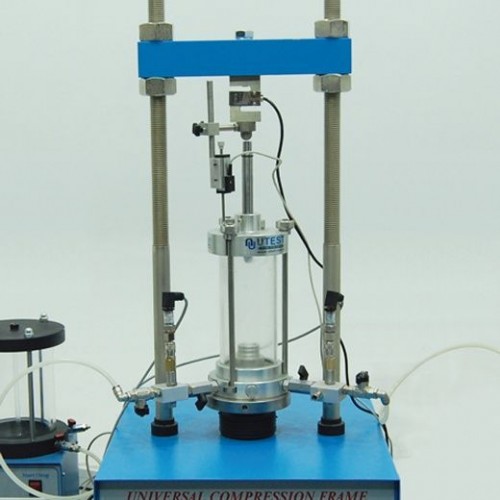

All UTEST softwares including Marshall, CBR, Triaxial (UU,CU,CD), Uniaxial etc. can be used with multiplex machines.

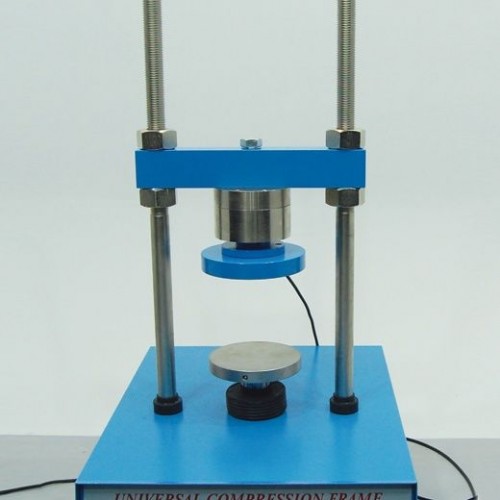

UTM-0115 - Compression Platens, used to perform uniaxial and unconfined compression tests

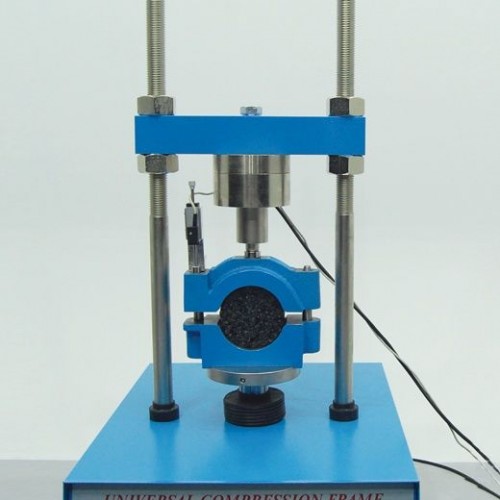

UTM-1088 - Marshall Penetration Piston for Stability Test
UTAS-0057 - Breaking Head Stability Mould, cast iron, for 4” (101,6 mm) Marshall Samples
UTAS-0058 - Breaking Head Stability Mould, cast iron, for 6” (152,4 mm) Marshall Samples
UTAS-1063 - Indirect Tensile Strength Test Jig with Steel Loading Strips for Ø100mm Compacted Bituminous Specimens, EN, ASTM, AASHTO
UTAS-1064 - Pair of Loading Strips for Ø150 mm Bituminous Specimens
