MULTIPURPOSE Compression & Flexure Testing Frames

These Multipurpose compression / flexural testers have been designed for various applications in which a limited maximum load is requested, together with a large testing space such as, for instance, compressive strength on lightweight concrete and soil-cement speci­mens using, if necessary, the suitable accessories. It is also ideal for testing high strength cement and refractory specimens. The large testing space is ideal for performing, with the suitable accessory, splitting tests and flexural tests on concrete specimens.

Two versions are available:

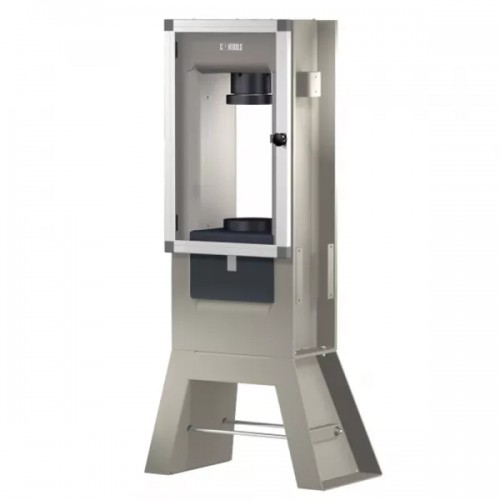

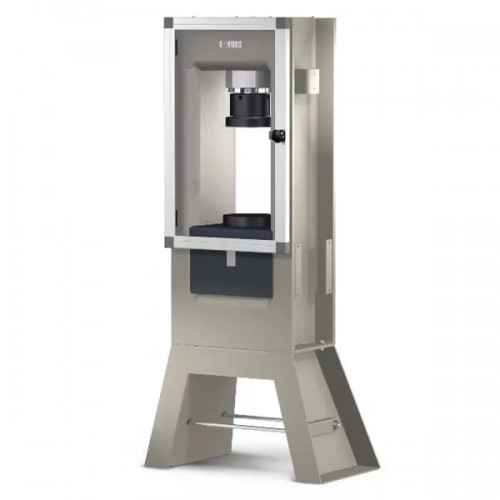

single compression station, 500 kN or 600 kN cap.:

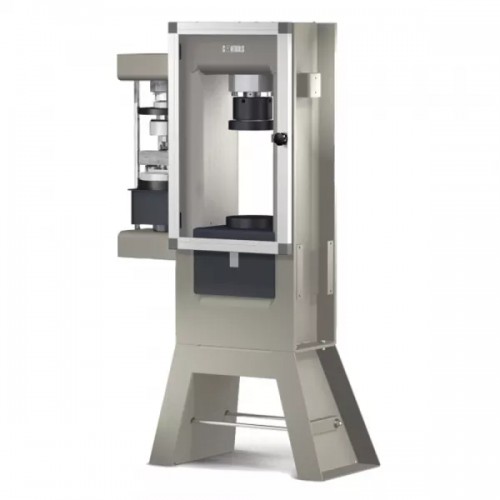

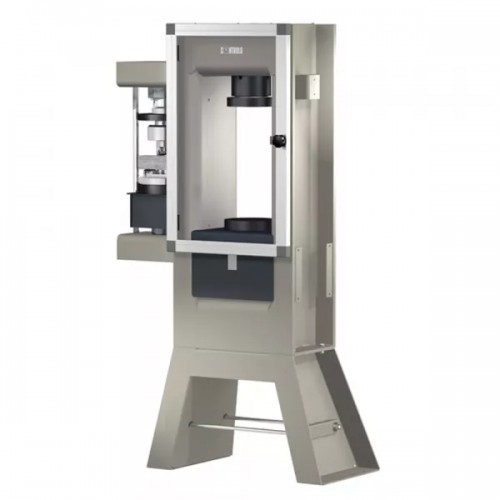

double station model, 600/15 kN or 500/15 kN cap.:

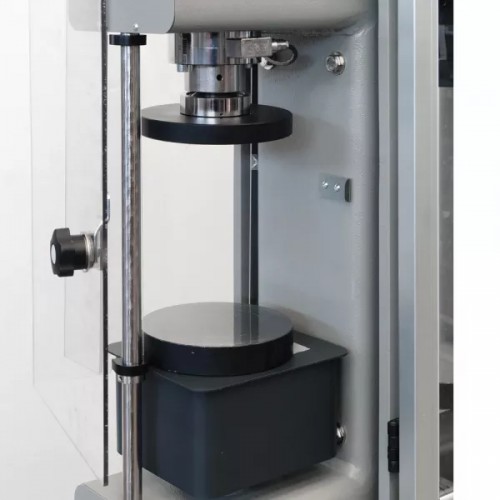

High rigidity: solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen. For compression platens see Technical Specifications. Pedestal not included. See accessories

All frames, when connected to a suitable control console, are supplied calibrated to Class 1 starting from 10% of load scale as specified in the Technical Specifications table. By special calibration procedures, it is possible to extend Class 1 load measurement accuracy (see Upgrading Option and Technical Specifications).

All models includes: max. pressure valve to avoid machine overloading; piston travel limit switch; front door and rear transparent fragment guard on the compression station. Fragment guard for flexure station is available as optional (see Accessories).

The 15 kN load piston of the double station models, when connected to PILOT and AUTOMAX automatic Control Systems, requires a pressure regulator which, however, is not necessary for connection to Automax E Modulus, MCC and Advantest 9 consoles. See Upgrading options.

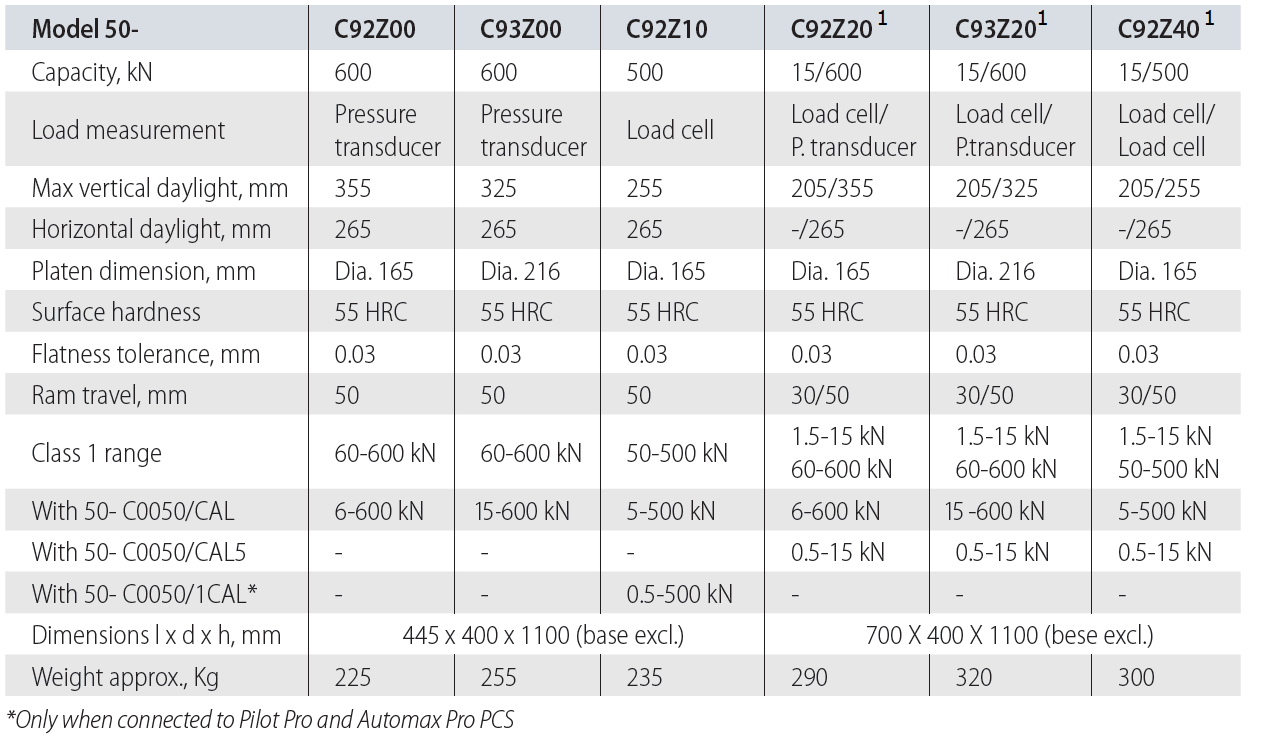

PHYSICAL SPECIFICATION TABLE

1When connected to AUTOMAX PRO or PILOT PRO PCS, the pressure regulator model 65-L1400/X5 has to be used.
