Обладнання для укупорки циліндрів

Обрати іншу модель Копіювати посилання
Обладнання для укупорки циліндрів
Обладнання для укупорки циліндрів Увеличить
Характеристики
Standards EN 12390-3, ASTM C31, ASTM C192, AASHTO T23, AASHTO T126, ASTM C617
Capacity 5l
Temperature range from +30 to 150°C
Internal dimensions 200 mm dia.160 mm depth
External dimensions 285 mm dia.x 275 mm high
Weight (approx.) 2.7 kg
Power 700 W
Power supply 230 V, 50-60Hz, 1Ph

Manufacturer Controls
Всі характеристики

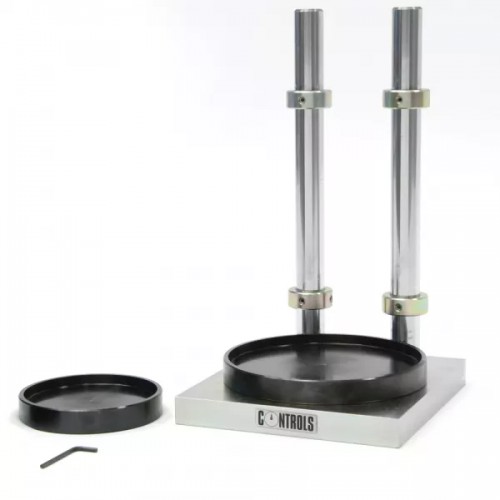

55-C0121/U - Universal cylinder capping frame for 75, 100 and 150mm dia. cylinders. Comprising a vertical support mounted on a steel base and capping plates for the above specimens. Compatible capping plate having 160mm diameter available on request

55-D1403 - General purpose melting pot. 700W

55-C0121/5 - Ladle

55-C0121/21 - Vertical cylinder capper for 150 x 300 mm and 6 x 12" specimens

55-C0121/22 - Vertical cylinder capper for 160 x 320 mm specimens

55-C0121/22A - Vertical cylinder capper for 160x320 mm specimens complete with ball traks for a positive location of the specimen

55-C0121/23 - Vertical cylinder capper for 100 x 200 mm specimens

55-C0121/3 - Cylinder carrier

55-C0121/37 - Flake capping compound 50 Lb bag

55-C0121/6 - Cylinder carrier for 160 x 320 mm

55-C0125 - Steel capping plate 500x300 mm, 20 mm thick. Weight approx. 30 kg

Дивитися повний опис
Обладнання для укупорки циліндрів Збільшити

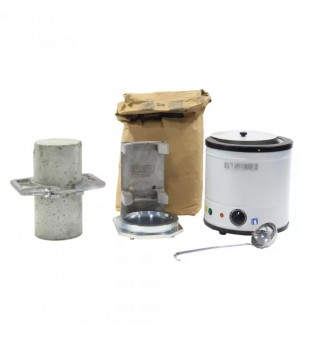

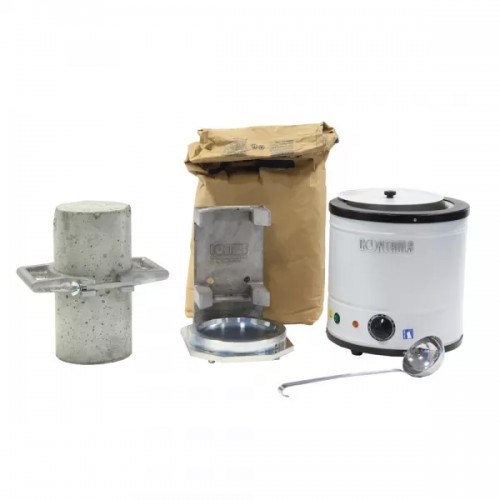

Introduction

When testing concrete cylinder specimens it is essential that the two ends are perfectly flat. This range of equipment allows the ends of the various sizes of concrete cylinders or cores to be capped using the sulphur capping compound.

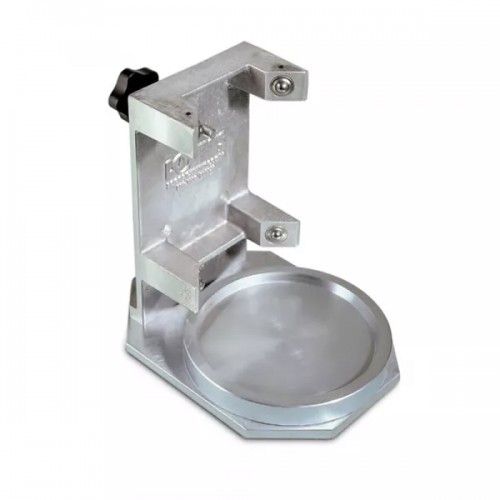

Cylinder cappers

Used to assure plane end surfaces perpendicular to the axis of the cylinder during the capping. Base and capping plate machined from steel. Guide is machined from cast aluminium or steel.

Cylinder carriers

UA simple accessory for an easy handling of specimens. Only available for dia. 150 mm (6”x12”9 and 160x320 mm sizes.

Capping compound

The compound is a mixture of sulphur and mineral filler to give a high finish and performance.

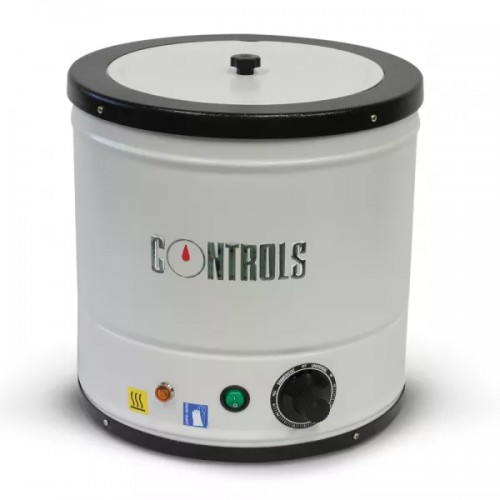

Melting pot

Used to melt the capping compound. The temperature is set and maintained at the desired value. Adjustable electronic thermoregulator and pilot lamp fully isolated conforming to CE requirement.

Capping plate for concrete blocks

Used for capping concrete blocks with cement paste. 500x300 mm, 20 mm thick, made from steel, accurately machined. Protected against corrosion.

Виробник
Виробник Controls
55-C0121/U2 - Capping plate for 160 mm dia. cylinders compatible with universal cylinder capping frame model 55-C0121/U
