Характеристики
Standarts UNI 11164
Panel 700x1100x120 mm. Weight 14 kg
Cell (dia.xh) 345x80 mm. Weight 19 kg

Manufacturer Conrtols

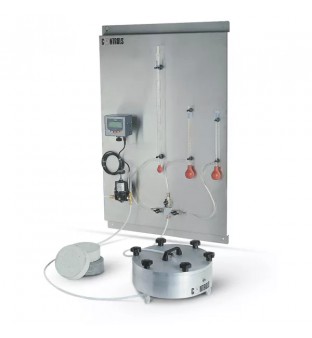

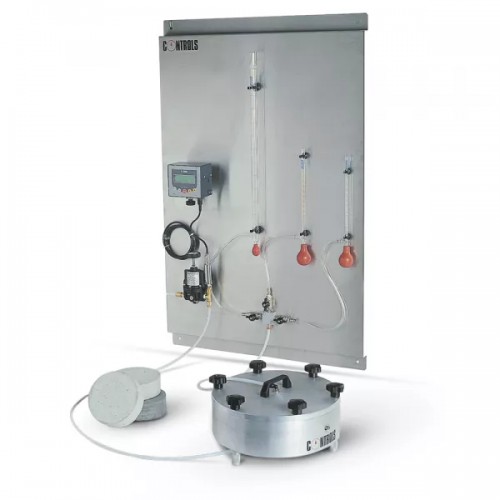

58-E0031 - Oxygen permeability apparatus for concrete. Cembureau method. Conforming to UNI standard Oxygen cylinder not included.

Дивитися повний опис

This method, which is applicable to cast and cored concrete specimens, concerns the determination of the concrete permeability to oxygen conforming to the Hagen-Poiseuille relationship.

The apparatus consists of:

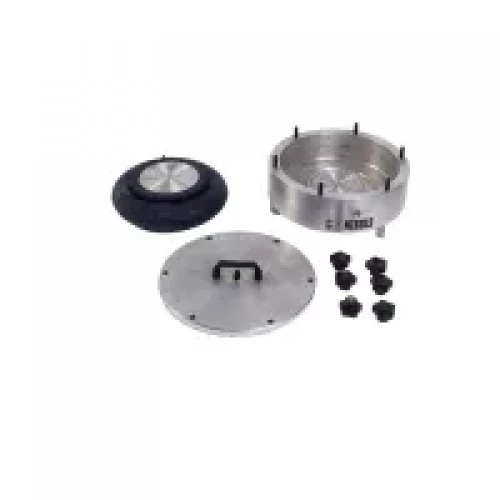

  • Permeability cell for specimens 150 mm dia, 50 mm high
  • Volumetric gas flow meter, soap bubble type
  • High precision pressure regulator
  • Digital readout unit and pressure transducer
  • Stainless steel wall mounting panel and connections
  • Compressed oxygen cylinder fitted with pressure reducer (with outlet pressure from 5 to 10 bar (max outlet pressure not more than 5 bar) not included

    Overall dim. and weights:

  • Panel (lxhxd) 700x1100x120 mm. Weight 14 kg
  • Cell (dia.xh) 345x80 mm. Weight 19 kg
  • Виробник
    Виробник Controls
