Пристосування для перевірки гайок і болтів

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards -

Manufacturer Conrtols

Всі характеристики

70-T10/BA1 - Bare attachment for nut and bolt tests. Suitable for 70-T10H0X

70-T10/NAB - Nut and Bolt test accessory for specimens M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33. Max bolt length 250mm

70-T15/BA1 - Bare attachment for nut and bolt tests. Suitable for 70-T12H0X and 70-T15H0X

70-T20/BA1 - Bare attachment for nut and bolt tests. Suitable for 70-T20H0X

70-T20/NAB - Nut and Bolt test accessory for specimens M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M39, M42, M45, M48, M52, M56 and M64. Max bolt length 250mm

Дивитися повний опис

Збільшити

The test accessory includes:

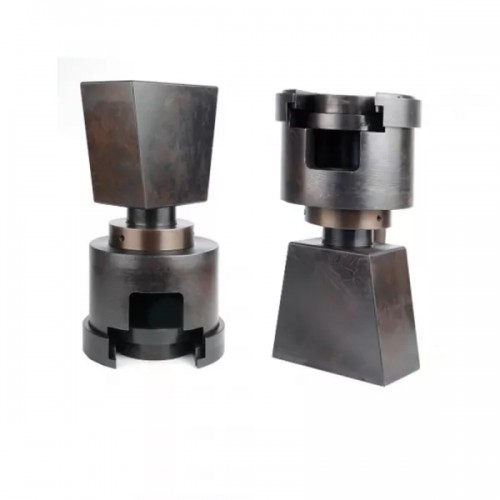

bare test attachment

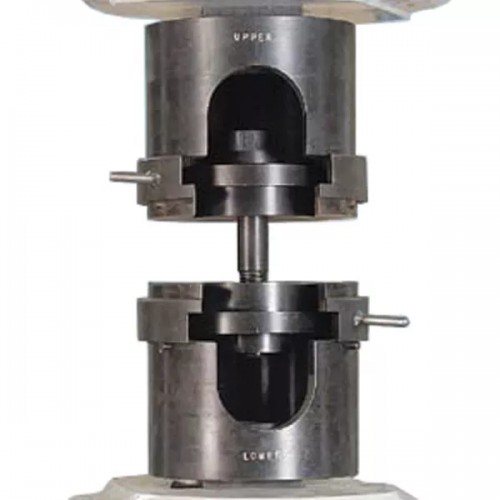

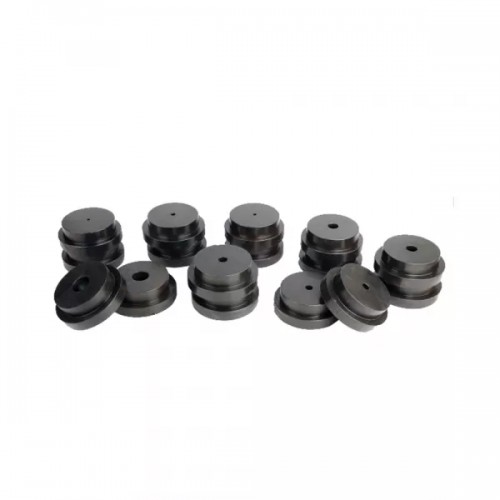

bushes for specimens positioning in the bare test attachment for proof loading test of studs and bolts

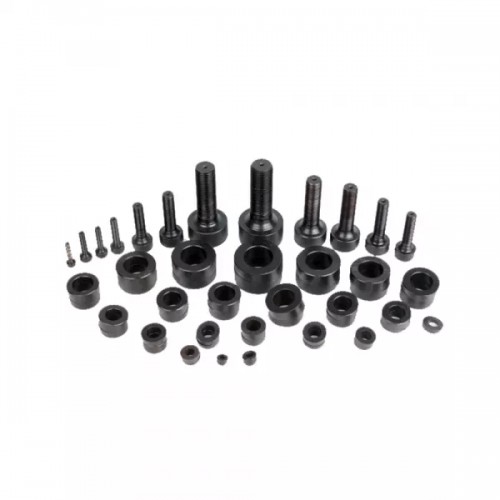

proof loading test assembly for nuts including mandrels and washers for nuts

Technical specification

Cap.	1000 kN	1200/1500 kN	2000 kN
Machine/Test method	70-T10H0x	70-T12H0x, 70-T15H0X	70-T20H0x
Nuts and bolts	70-T10/BA1+, 70-T10/NAB	70-T15/BA1+, 70-T10/NAB	70-T20/BA1+, 70-T20/NAB
