Standards ASTM C39, AASHTO T22

Manufacturer Controls

Всі характеристики

50-C13Z00 - 1500 kN cap. compression frame for testing cylinders up to 160 x 320 mm and cubes up to 150mm. Conforming to ASTM C39, AASHTO T22 for 150x300 mm (6"x12") cylinders

50-C43Z00 - 2000 kN cap. compression frame for testing cylinders up to 160 x 320 mm and cubes up to 150mm. Conforming to ASTM C39, AASHTO T22 for 150x300 mm (6"x12") cylinders

50-C34Z00 - 3000 kN cap. compression frame for testing cylinders up to 160 x 320 mm and cubes up to 200mm

50-C45Z00 - 2000 kN cap. compression frame for testing blocks,cylinders up to 160x320 mm and cubes up to 200 mm.- Compression platens 310mm x 510mm

50-C35Z00 - 3000 kN cap. compression frame for testing blocks,cylinders up to 160x320 mm and cubes up to 200 mm.- Compression platens 310mm x 510mm

Дивитися повний опис

Збільшити

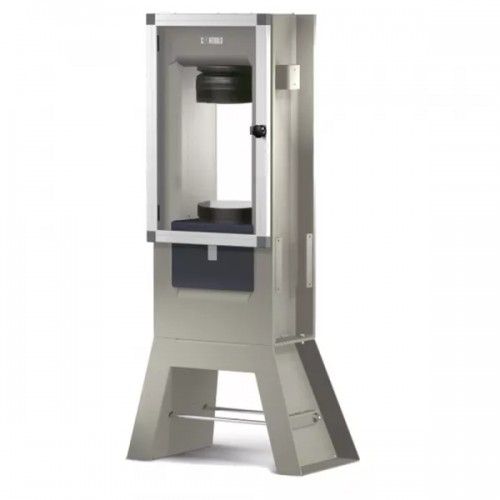

General utility standalone frames for testing cubes and cylinders

50-C13Z00, 50-C43Z00 and 50-C34Z00, 1500kN, 2000kN and 3000kN cap, frames consist of a rigid welded steel structure, with spherical seat and platens suitable for testing cylinders and cubes (see TECHNICAL SPECIFICATIONS table). Supplied complete with pressure transducer, flexible plastic fragment guards and connection kit for separate control console. Pedestal and ridig front door not included, see Accessories.

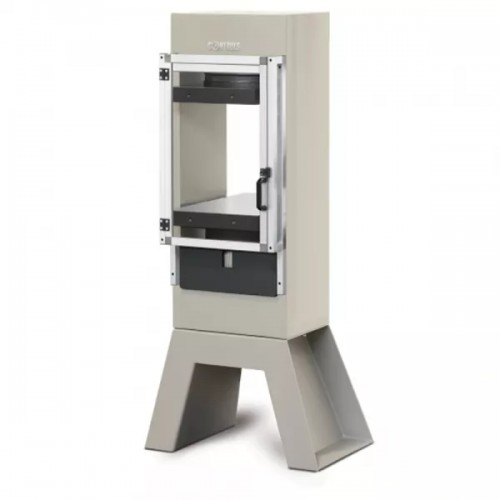

General utility standalone frames for cubes, cylinders and blocks

50-C45Z00 and 50-C35Z00 feature a rigid welded steel structure, with spherical seat and compression platens 310x510 mm suitable for blocks, cylinders up to dia.160x320mm and cubes up to 200mm (see TECHNICAL SPECIFICATIONS table).

For compression platens details, see TECHNICAL SPECIFICATIONS table

GENERAL UTILITY TESTING FRAMES FOR CUBES AND CYLINDERS
Model 50-	C13Z00	C43Z00	C34Z00
Capacity kN	1500	2000	3000
Platens dim. mm	Dia. 220	Dia. 220	Dia. 300
Horizontal daylight, mm	350	370	425
Surface hardness (1)	55 HRC	55 HRC	55 HRC
Flatness tolerance, mm	0.03	0.03	0.03
Ram travel mm	50	50	50
Max. vertical daylight mm	340*	370	350*
Horizontal daylight mm	280	350	370
For specimen size: Cylinders cm (dia.xh)	15x30 (6”x12”), 16x32	15x30 (6”x12”), 16x32	15x30 (6”x12”), 16x32
For specimen size: Cubes cm	15	15	15
Overall dim. (lxdxh) mm	445x365x1090	540x400x1090	740x505x1150
Weight approx. kg	270	500	370
Pedestal (optional)	50-A19/B	50-C49/B	50-C39/B
Rigid front door (optional)	50-A19/FG	50-C49/FG	50-C39/FG

*To be adjusted using the suitable distance pieces. See accessories (1) Hardness certificate available on request

GENERAL UTILITY TESTING FRAMES FOR CUBES, CYLINDERS AND BLOCKS
Model 50-	C25Z00	C35Z00
Capacity kN	2000	3000
Platens dim. mm	310x510	310x510
Surface hardness (1)	55.5 HRC	55.5 HRC
Flatness tolerance, mm	0.05	0.05
Ram travel mm	50	50
Max. vertical daylight mm	350	350
Horizontal daylight mm	340	340
For specimen size: Cylinders cm (dia.xh)	15x30 (6”x12”), 16x32	15x30 (6”x12”), 16x32
For specimen size: Cubes cm	15,20	15,20
For specimen size: Blocks	Within platen dim.	Within platen dim.
Overall dim. (lxdxh) mm	540x555x1090	440x600x1160
Weight approx. k	575	775
Pedestal (optional)	50-C29/B	50-C39/B
Rigid front door (optional)	50-C25/FG	50-C35/FG

*To be adjusted using the suitable distance pieces. See accessories (1) Hardness certificate available on request

Виробник
Виробник	Controls

50-C0050/HRD3 - Supply of the compression machine with dia.220 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.

50-C0050/HRD4 - Supply of the compression machine with dia.300mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine

50-C0050/HRD7 - Supply of the compression machine with 310x510x50 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine

50-A19/B - Base for frames and testing machines model 50-A12xxx, 50-C13xxx and 50-C92xxx

50-C39/B - Base for frames and testing machines model 50-C34xxx, 50-C35xxx and 50-A32xxx

50-C49/B - Base for 2000 kN 50-C46xxx, 50-C47xxx, 50-C43xxx, 50-A42xxx and 50-C45xxx frames/machines

50-C9080 - Distance piece dia 200 x 30 mm

50-C9082 - Distance piece dia 200 x 50 mm

50-C9083 - Distance piece dia 200 x 68 mm

50-C9086 - Distance piece dia 200 x 100 mm

50-A19/FG - Upgrading of the 50-A12xxx, 50-C13xxx machines and compression frames with front rigid door

50-C45/FG - Upgrading of the 50-C45xxx series 2000 kN compression frames with front rigid door (for frames fitted with rectangular platens 310x510 mm)

50-C49/FG - Upgrading of the 50-C43xxx series 2000 kN compression frames with front rigid door

50-C35/FG - Upgrading of the 50-C35xxx, A29xxx and A39xxx compression frames with front rigid door (for frames fitted with rectangular block platens)

50-C39/FG - Upgrading of the 50-A32xxx and 50-C34xxx series 3000 kN compression frames with front rigid door
