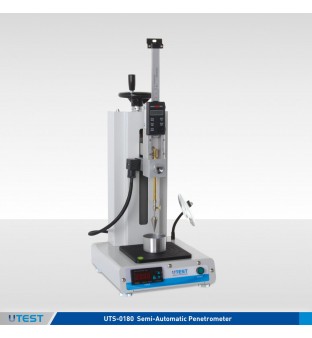

Semi-Automatic Liquid Limit Cone Penetrometer (UTEST)

The Cone Penetrometer is used to determine the moisture content at which clay soils pass from a plastic to a liquid state and used also for the determination of undrained shear strength.

UTS-0180 Semi-Automatic Cone Penetrometer for liquid limit consists of a frame with a levelling screws and screw gear assembly with handwheel for vertical adjustment, a digital penetration measurement gauge with 0.01 mm resolution /readibility, a digital timer, a magnifying lens and a low voltage illuminator mounted on flexible arms.

Penetration time 0-99 sec. can be set up by user with the digital timer. The timer will allow the cone to free fall into the sample for the engaged time interval and then lock the cone from advancing while providing a direct reading of the test results.

Each cone supplied complete with its shaft. Penetration cone/s, cone test gauges and sample cups should be ordered seperately.
