Шліфувальний верстат з шафою (UTEST)

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standarts EN 12390-1, 12390-2, 12390-3, 12504-1; ASTM C 31, C39, C42, C192, C617, D4543

Dimensions 800x1265x1652 mm

Weight (approx.) 350 kg

Power 1850 W

Power supply 220-240 V, 50-60 Hz, 1ph

Manufacturer UTEST

Всі характеристики

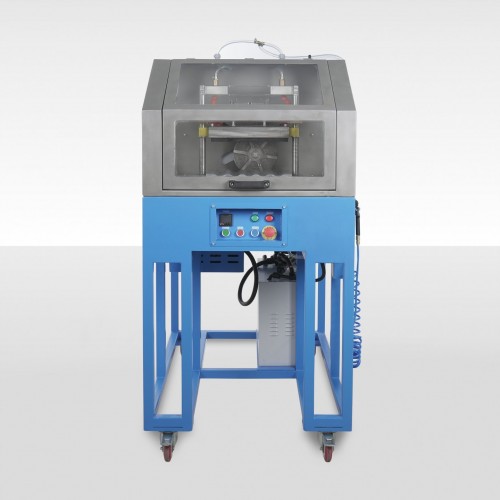

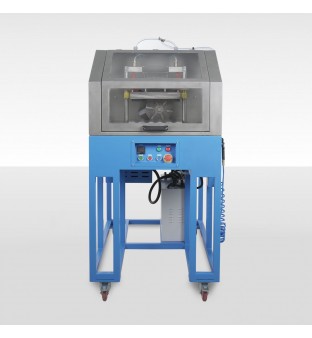

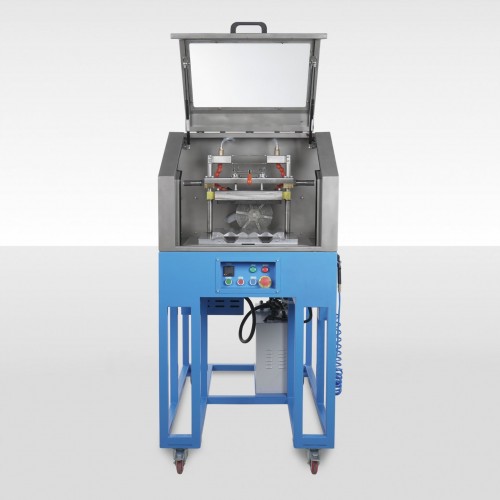

UTC-1060 - Automatic Grinding Machine with Cabinet

Дивитися повний опис

Збільшити

The UTC-1060 Automatic Grinding Machine with Cabinet provides fast grinding of concrete, rock, natural stone. etc. specimens to obtain plane and parallel surfaces according to EN and ASTM standards.

The Machine:

Five units of Ø38 mm to Ø50 mm cylinders ends
Three units of Ø70 mm to Ø110 mm cylinders ends
Two units of Ø110 mm to Ø160 mm cylinders ends
Three units of 100 mm cubes faces
One unit of 150 mm cubes faces

Can be ground simultaneously with the suitable cradle.The lenght of the any specimen must be ≥70mm

According to ASTM and EN standards, the planeness accuracy of grinded surfaces of concrete compression test specimens should be 0.05 mm. and also the deviation of perpendicularity of the side with reference to the end faces should be 0,5°.

The equipment has selectable advance grinding time functionality by user from 50 to 400 seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

The specimens fixed to the any cradle are abraded by the grinding wheel which has bidirectional radial displacement ability

The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet.Specimen cradles can easily be installed without the need for any assembly.

Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

The parts exposed to water are made of stainless steel to resist corrosion.

UTC-1064 Filtration and Circulation System Water Tank is designed to save the amount of water used during the grinding process in the automatic grinding machine(UTC-1060).If UTC-1064 is supplied with the grinding machine, it is automatically activated when the grinding process starts and filtration and circulation begin simultaneously.

The cradle for 100mm or 150mm cube specimens should be ordered seperately.

The Automatic Grinding Machine is supplied complete with

Grinding Wheel for concrete specimens
Cradle for Ø:38mm to110 mm cylindrical specimens
Cradle for Ø:110mm to160 mm cylindrical specimens (connected to the machine)

The preparation of concrete cylinder test specimen for compressive strength test	EN 12390-1, 12390-3, ASTM C31, C39, C192, C617	The maximum tolerance on the flatness of the potential load bearing surfaces (the ends of compression test specimens) is 0.002 in. [0.050 mm]
The preparation of drilled concrete cores specimen for compressive strength test	EN 12504-1, 12390-1, 12390-3 ASTM C42, C397	The deviation of perpendicularity of the side, with reference to the end faces is 0,5O
