Standards: EN 12390–2; ASTM C31, C192, C511; AASHTO T23, T126

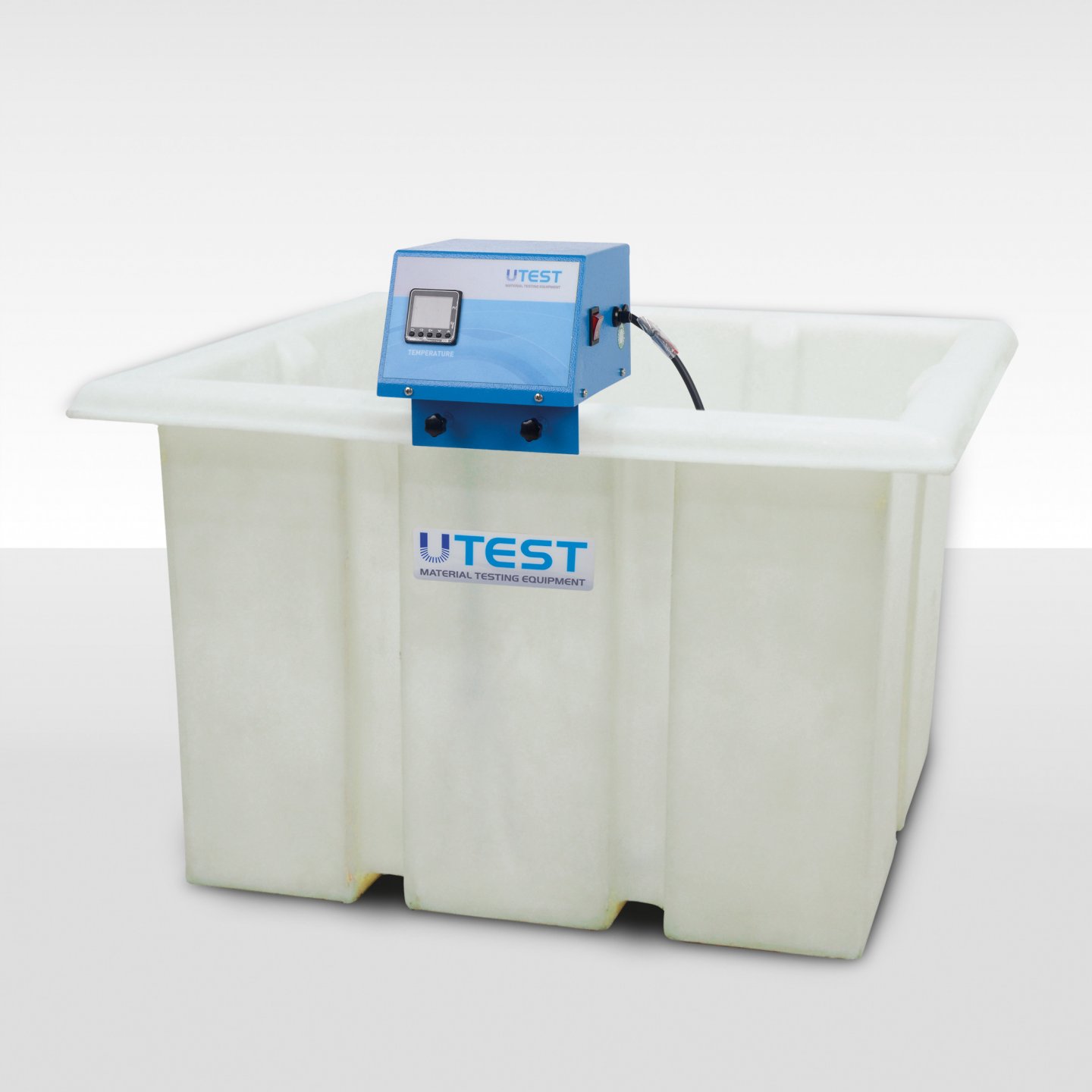

The UTC-0965 Steel and UTC-0970 Polyurethane Small Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted to the required value and can be kept constant by an electric resistance incorporating a thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.
Дивитися повний описStandards: EN 12390–2; ASTM C31, C192, C511; AASHTO T23, T126

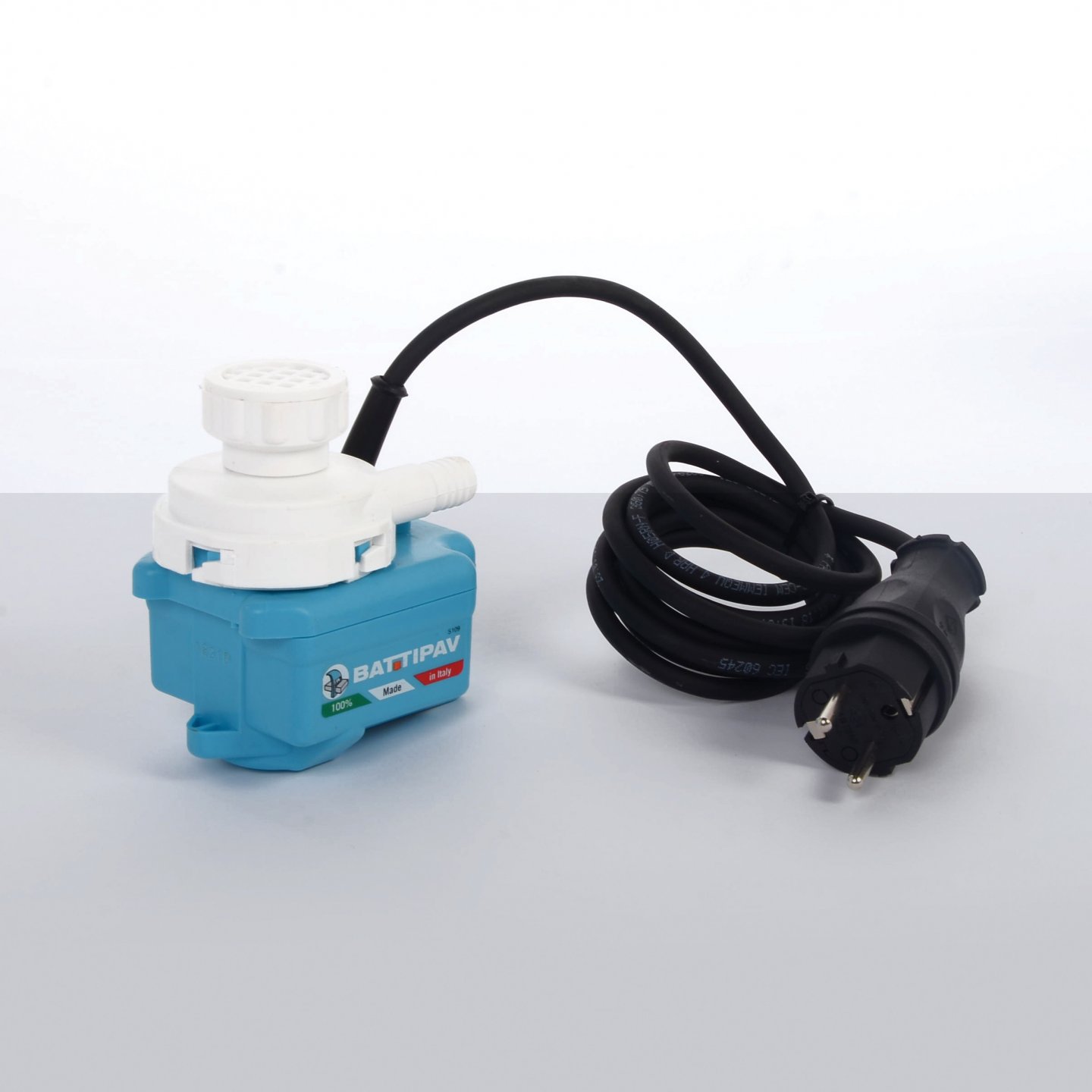

Product CodeRunning temperature for UTC-0955 Circulating Pump is max. 30°C.

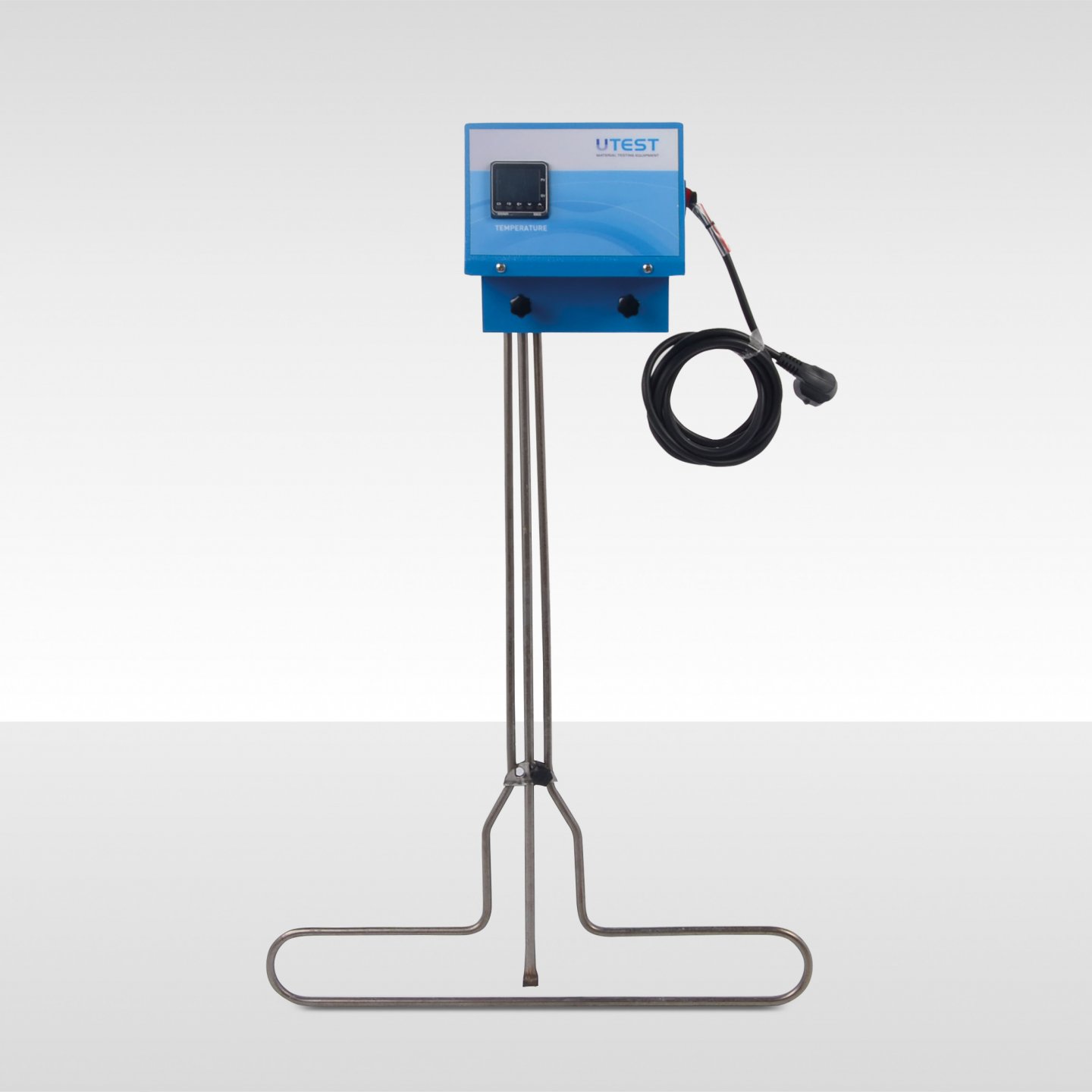

The UTC-0965 is manufactured from powder coated sheet steel. Appropriate curing tank heater and circulating pump should be ordered separately.
All Curing Tanks are supplied complete with:
|
| UTC-0965 | UTC-0970 |
|---|---|---|---|
Dimensions ( WxLxH ) | External | 710x710x610 mm | 915x1250x660 mm |
Internal | 650x650x550 mm (Clear Depth 520mm) | 800x1100x550 mm (Clear Depth 520mm) | |
Specimens Capacity | Cube 150 mm | Max. 48 pcs | Max. 110 pcs |
Cylindrical Ø150x300 mm | Max. 24 pcs | Max. 52 pcs | |
Weight (approx.) | 55 kg | 60 kg | |
| Виробник | |
| Виробник | UTEST |
| Технічні характеристики | |
| Specimens Capacity | Max. 48 pcs (Cube 150 mm); Max. 24 pcs (Cylindrical Ø150x300 mm) |
| Параметри електроживлення | 220-240В 50-60 Гц, 1ф |
| Внутрішні розміри | 650x650x550 мм |
| Зовнішні габарити | 710x710x610 мм |
| Вага близько | 55 кг |
UTC-0970
UTC-0954
UTC-0955
