Стандартна тривісна система з аналоговим вимірюванням

Обрати іншу модель Копіювати посилання

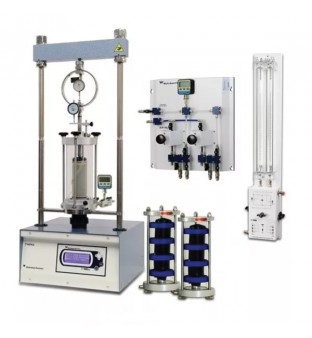

Стандартна тривісна система з аналоговим вимірюванням
Стандартна тривісна система з аналоговим вимірюванням Увеличить
Характеристики
Standards BS 1377:6, BS 1377:7, ASTM D2850, ASTM D4767
ASTM D5084, BS 1377:8, ASTM D7181, EN 17892-8, EN 17892-9,
EN 17892-8

Manufacturer Controls
Всі характеристики

Standard triaxial System with analogue measurement is the ideal basic solution for performing standard triaxial tests such as effective and total stress laboratories that don’t require digital measurement.

Дивитися повний опис

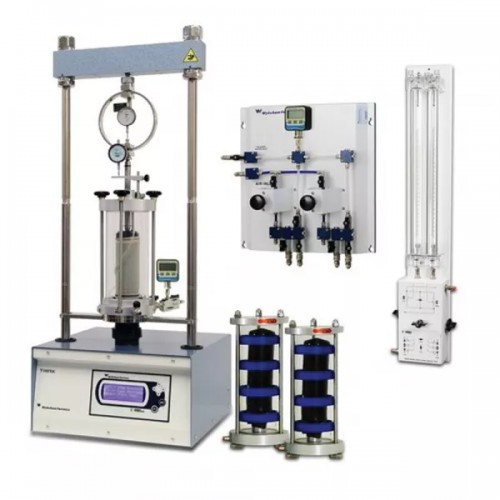

Стандартна тривісна система з аналоговим вимірюванням Збільшити

Standard triaxial System with analogue measurement is the ideal basic solution for performing standard triaxial tests such as effective and total stress laboratories that don’t require digital measurement. All the data acquisition and test management are made in manual mode

Power supply is only required for air compressor and for triaxial load frame during failure stage.

A typical Standard triaxial system with analogue measurements includes:

Load frame:

  • TRIAX specifically designed for triaxial applications is ideal for commercial laboratories that need a versatile machine capable of performing a wide range of tests. (Max sample sizes: 70 mm)
  • TRITECH 50 kN or 100 kN: TRITECH original high-performance load frames for triaxial tests, ideal solution for advanced and research laboratories that perform high quality tests at high productivity levels.

    • Triaxial cell with accessories: standard triaxial cell with dedicated accessories for performing and preparing samples from 35 mm to 100 mm diameter.

    Analogue measuring system: in a standard triaxial system

    Pressure system: Air/water interface with air compressor and air filter, generally used for effective stress (two pressure lines are required for cell and back pressure) Oil/water interface is also available, suggested when only total stress test (UU) is required.

    Template for data processing and reporting: generally used in system with automatic data acquisition, but thanks to the high flexibility they can be used with manual input of data also in standard triaxial systems with analogue measurement.

    Main features
  • Fully analogue data measurement using dial gauge, load ring, double burette and pore pressure transducer;
  • Pore pressure measuring with dedicated readout unit, ensuring a negligible change in volume of the circuit of the pore pressure, as required by the Standards;
  • Pressure system using air/water interface and triaxial panel with air pressure regulators;
  • Easily extended with dedicated accessories to perform additional tests such as permeability, unconfined, CBR, etc.;
  • Easily upgradable to digital measurement system.

    • Technical specifications

    Capacity: 50 kN and 100 kN

    Speed range:

  • 0.00001 – 99.99999 mm/min (TRITECH)
  • 0.00001 – 50.8 mm/min (TRIAX)

    • Working pressures:
  • 1000 kPa (AIR/WATER INTERFACE and TRIAXIAL PANEL)
  • 3500 kPa (OIL/WATER APPARATUS)

    • Specimen range: 35,38,50,70,100 mm diameter with STANDARD TRIAXIAL CELL

    Sampling rate: manual with stopwatch

    Виробник
    Виробник Controls
    Технічні характеристики
    Діапазон швидкостей 0.00001 – 99.99999 mm/min (TRITECH) /0.00001 – 50.8 mm/min (TRIAX)
    Частота дискретизації ручна з секундоміром
    Вантажопідйомність 50 кН і 100 кН
    Діапазон зразків діаметр 35, 38, 50, 70, 100 мм зі STANDARD TRIAXIAL CELL
    Робочий тиск 1000 кПа (AIR/WATER INTERFACE and TRIAXIAL PANEL) /3500 кПа (OIL/WATER APPARATUS)
