Universal Moisture Tester (Controls)

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards BS 6576, AASHTO T217, ASTM D4944

Manufacturer Controls

Всі характеристики

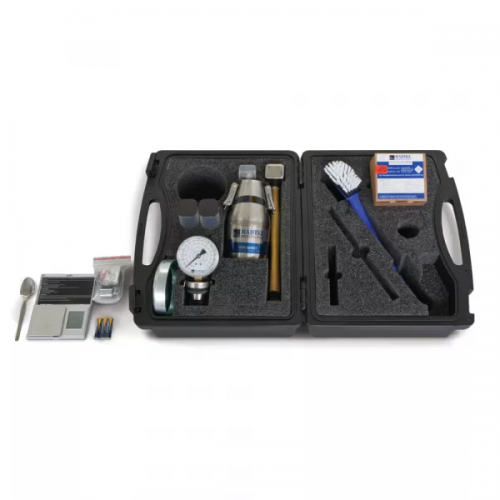

19-T0019 - Classic moisture meter with analogue manometer anddigital balance, Measuring range: up to 10% humidity measurement on 20 g sample, 4% on 50 g sample and 2% on 100 g sample. 20 carbide ampules included.

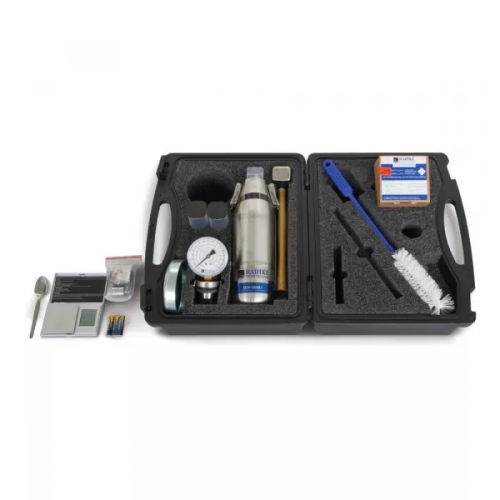

19-T0019/F - Classic moisture meter, long bottle version, with analogue manometer and digital balance, Measuring range: up to 20% humidity on 20 g sample.

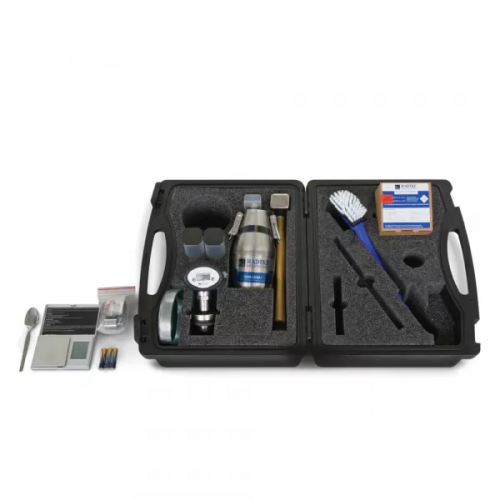

19-T0019/G - Digital moisture meter with 0-3 bar high-resolution digital manometer and digital balance, Measuring range: up to 10% humidity measurement on 20 g sample, 4% on 50 g sample and 2% on 100 g sample

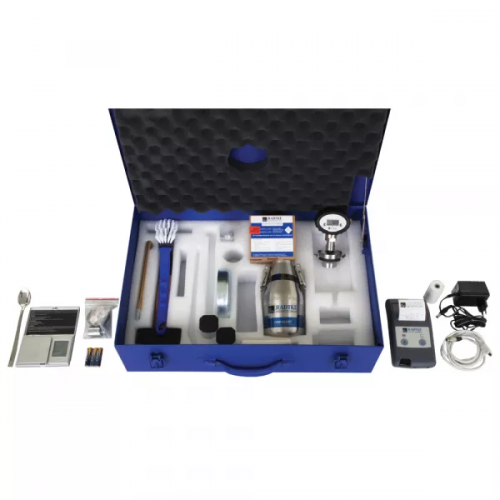

19-T0019/H - Digital moisture meter with 0-3 bar high-resolution digital manometer, digital balanceand log printer to produce test certificate, Measuring range: up to 10% humidity measurement on20 g sample, 4% on 50 g sample and 2% on 100 g sample

Дивитися повний опис

Збільшити

The universal moisture tester can be used for soils, sand and fine aggregates.

The 19-T0019, -T0019/G and -T0019/H models can determine moisture contents of 2% or under on samples up to 100g in mass, the 19-T0019/F long bottle version can determine up to 20% on 20g samples, while the Speedy models are suitable for determinations of up to 20% on 6-20g of sample.

The operating principle is identical for all models: the sample is introduced into the bottle with the reagent and the water in the sample reacts with calcium carbide and produces a gas, the pressure of which is indicated on the manometer and easily converted into the percentage of moisture.

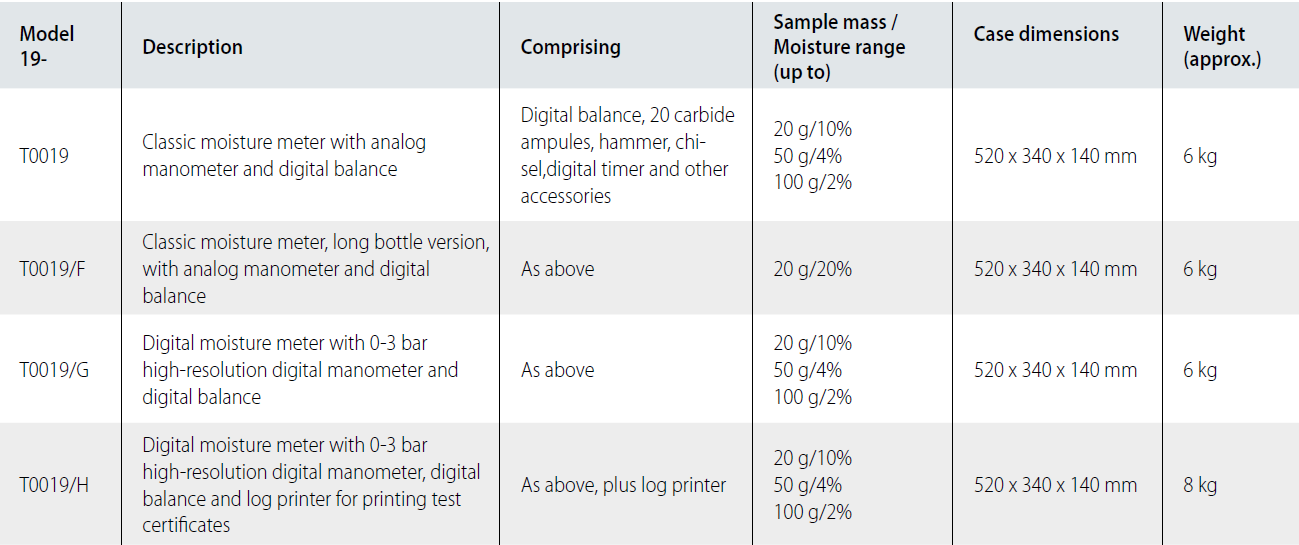

Four versions are available - the specifications are detailed in the following table:

Виробник
Виробник	Controls

Технічні характеристики
Вага (прибл.)	6 кг (для моделей 19-T0019, 19-T0019/F, 19-T0019/G) / 8 кг (для моделей 19-T0019/H)
Розміри корпусу	520х340х140 мм
