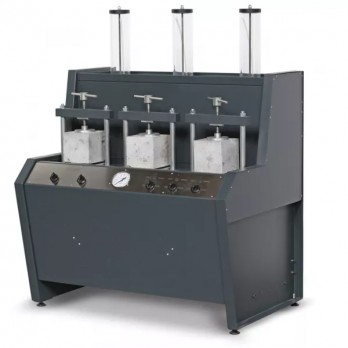

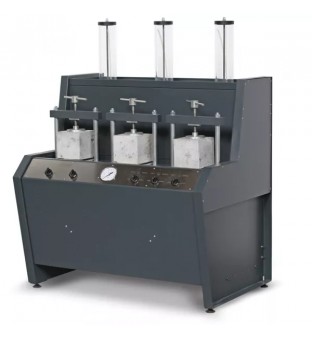

Water Permeability Apparatus

This apparatus is used to determine the depth of penetration of water under pressure in the concrete specimens. The test is performed clamping the specimen - cubic, cylindrical or prismatic of length of edge, or diameter not less than 150 mm - between two flanges with special circular gaskets. The water, under controlled pressure, is then applied to the surface of the concrete specimen. The penetration of water is measured, after the testing period, by breaking the specimen. The quantity of penetrated water, can also be measured through the graduated burettes fitted on top of the apparatus.

The apparatus consists of a robust steel frame with clamping system, incorporating the hydraulic circuit, valves, gauge to check the water pressure and measuring transparent burettes mounted on top of the apparatus. The clamping system can accept cube or prismatic specimens up to 200 mm side and cylinders up to 300 mm height.

Two versions available:

All versions are supplied complete with gaskets for 150 mm cube specimens.

The apparatus has to be fit with a suitable air compressor, max. working pressure 6 bar. See accessories.

Main features

Phisical specifications

Overall dimensions (WxDxH):

55-C0246/3, 1155x783x1515 mm

55-C0246/6, 1155x905x1864 mm

Weight (approx).:

55-C0246/3, 129 kg

55-C0246/6, 189 kg
