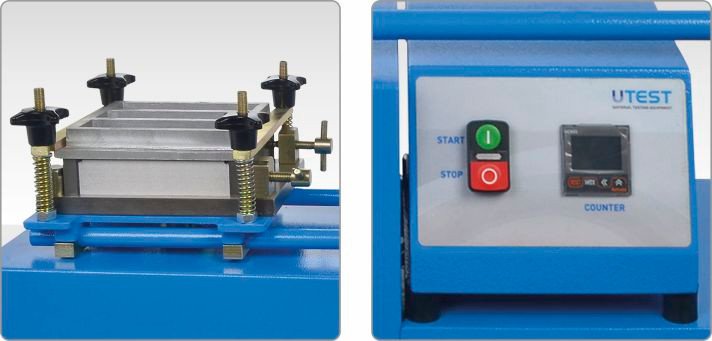

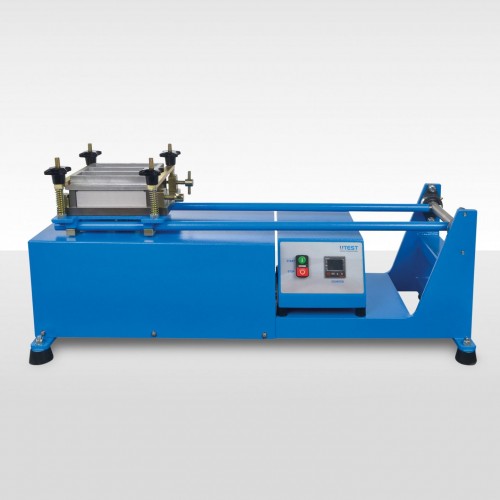

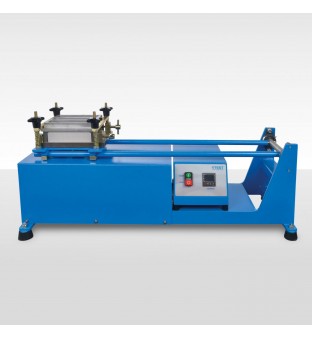

Weight and dimensions of the jolting table fully comply with the requirements of EN 196-1 standard. When used with UTCM-0892 Three Gang Mould and UTCM-0893 Feed Hopper, the total weight of the moving part is 20 kg ± 0.5 kg. Without UTCM-0892 and UTCM-0893 the weight of the moving parts is 6.85 kg. Rapid mould lock and release system allows easy and quick operation.
The supporting frame of the machine has been designed to ensure precise dimensions, table flatness, correct centering of the three gang mould on the table.
The motor and gearbox assembly is enclosed in a protective housing, which promotes user safety (the moving parts are inaccessible) and long life for the gearbox.

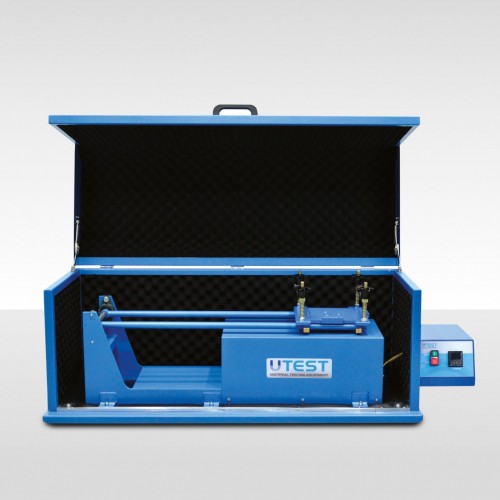

The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives.
UTCM-0893 Feed Hopper is used for filling UTCM-0892 Three Gang Moulds placed on the Jolting Table.
UTCM-0892 Three Gang Mould, UTCM-0893 Feed Hopper, UTCM-0894 Short and Long Spreaders and Straightedge should be ordered separately.
| Виробник | |
| Виробник | UTEST |
| Технічні характеристики | |
| Швидкість двигуна | 60 об/хв |
| Висота скидання | 15 мм |
| Потужність | 250 Вт |
| Параметри електроживлення | 220-240В 50 Гц, 1 ф |
| Габаритні розміри | 1050x350x500 мм (модель UTCM-0890)/ 1440x500x575 мм (модель UTCM-0891) |
| Вага близько | 55 кг (модель UTCM-0890)/ 55 кг (модель UTCM-0891) |
