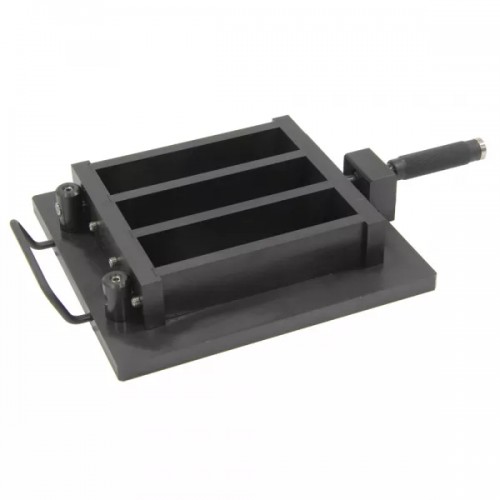

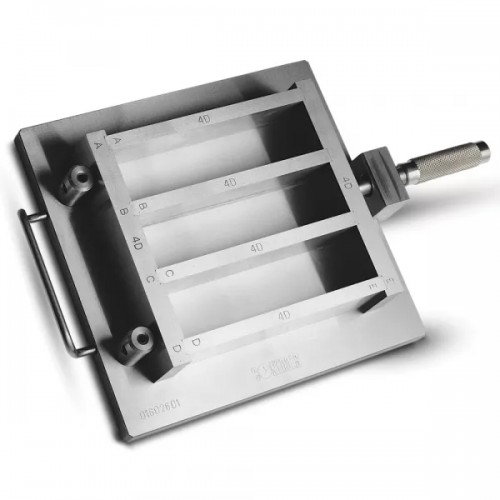

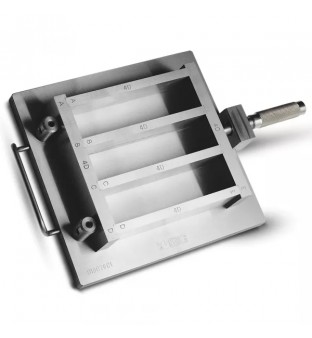

Used to produce the mortar specimens for compression and flexural tests. Made from special alloy steel, they are proposed in two version:
Standard 65-L0010/A having a minimum surface hardness of HV200 and
Heavy duty 65-L0010/B having a minimum surface hardness of HV400 which is recommended by the EN standards. Furthermore, this model is surface protected by a rust inhibitor treatment and is supplied complete with traceable certificate of conformity and identified by a serial numbe
Both models can be fit with the 65-L0010/5 type B measuring pegs for determining the coefficient of thermal expansion conforming to EN 1770. See accessories.
Weight approx.: 10.9 kg
Caracterìsticas Principales
Individually checked with certified instruments

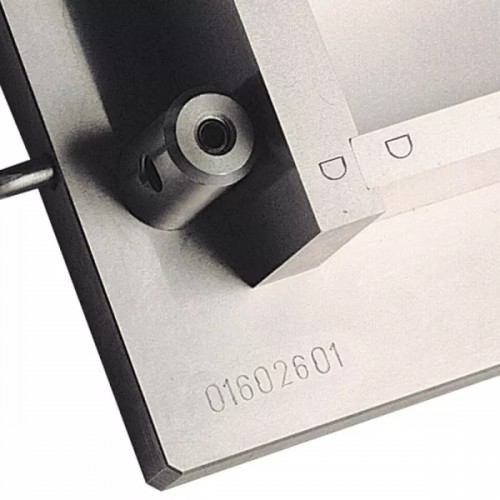

All parts marked and identified

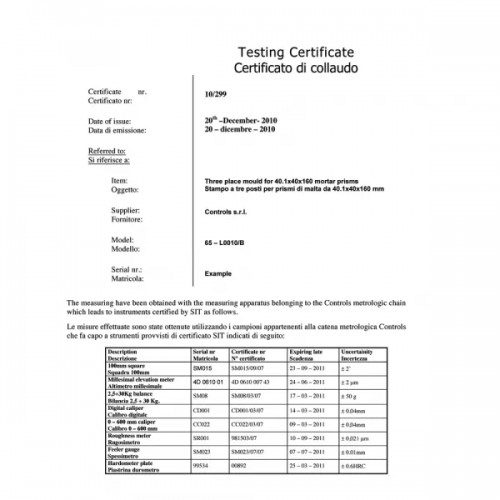

Model 65-L0010/B has a minimum surface hardness of HV 400 and is surface protected with a rust inhibitor treatment. Supplied complete with traceable certificate of conformity.
Both models can be fit with 65-L0010/5 pegs for determining the coefficient of thermal expansion conforming to EN 1770
| Виробник |
| Виробник |
Controls |
65-L0010/5 - Plugs for thermal expansion measurement. 2 type, Bshape according EN 1770. Pack of 12 pieces.
