Рама високої жорсткості на згинання, навантаження 200 кН, SIMPLEX

Обрати іншу модель Копіювати посилання
Рама високої жорсткості на згинання, навантаження 200 кН, SIMPLEX
Рама високої жорсткості на згинання, навантаження 200 кН, SIMPLEX Увеличить
Характеристики
Standards EN 14488-5, EN 14651, EN 12390-5, ASTM C293, ASTM C78, EN 1339, EN 1340, ASTM C1609
Manufacturer Controls
Всі характеристики
50-C1510/FR - SIMPLEX, 200 kN cap. high stiffness flexure frame,complete with pressure transducer and connection kit for separate control console. Upper and lower rollers not included

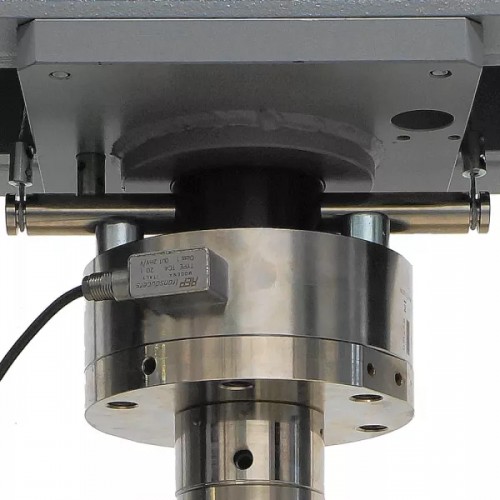

50-C1511/FR - SIMPLEX, 200 kN cap. high stiffness flexure frame,complete with load cell and connection kit for separate control console. Upper and lower rollers not included

Дивитися повний опис
Рама високої жорсткості на згинання, навантаження 200 кН, SIMPLEX Збільшити

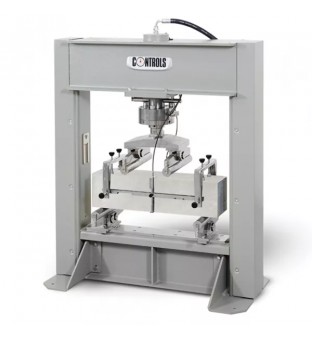

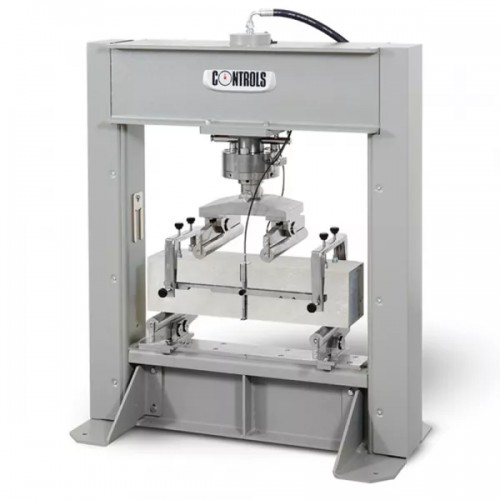

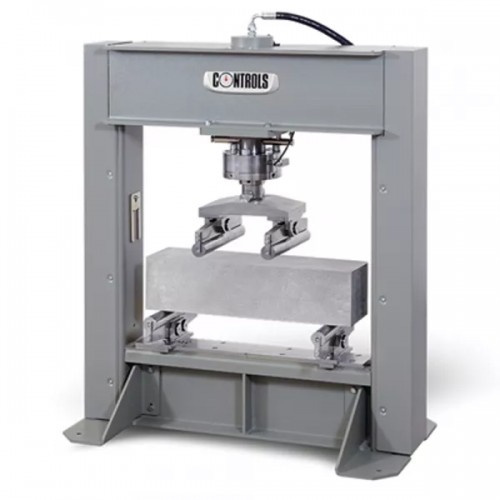

A simple and practical frame developed for testing on standard concrete beams. The distance of both pair of loading and support rollers can be easily adjusted: one of the two upper rollers can be removed and the other placed in the centre for centre point loading test.

Main features
  • For testing concrete beams having 100x100mm and 150x150mm square sections
  • Complete with bearers

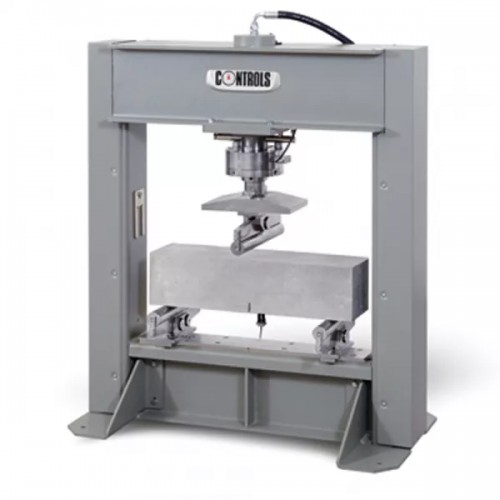

  • For center and third point loading
  • Connectable to control consoles, Wizard, Automax and Pilot compression machines
  • Piston return by counterweights

    • Technical specifications
    Models 50-
    Simplex C1510/FR
    Simplex C1511/FR
    Max capacity kN
    200
    200
    Horizontal clearance mm
    720
    720
    Max. vertical clearance mm, with: 50-C1500/1 (4 points)
    210
    210
    50-C1500/1 (3 points)
    304
    304
    50-C1500/2
    225
    225
    50-C1500/2 + 50-C1500/3
    290
    290
    50-C1500/2 + 50-C1500/4
    165
    165
    50-C1500/7
    445
    445
    Distance between upper rollers, adjustable,mm
    From 100 to 200 or single roller
    From 100 to 200 or single roller
    Distance between lower rollers - Parallel testing mode, adjustable mm
    From 150 to 600
    From 150 to 600
    Distance between lower rollers - Orthogonal testing mode, adjustable mm
    -
    From 550 to 1000
    Piston travel, mm
    130
    130
    Overall dimensons, mm
    1000x500x1250
    1000x500x1250
    Weight approx., kg
    260
    280

    * The vertical daylight can be reduced by using the distance pieces already included useful to reduce the daylight by: 50mm and 100mm. Additional distance pieces are available as Accessories.

    Виробник
    Виробник Controls

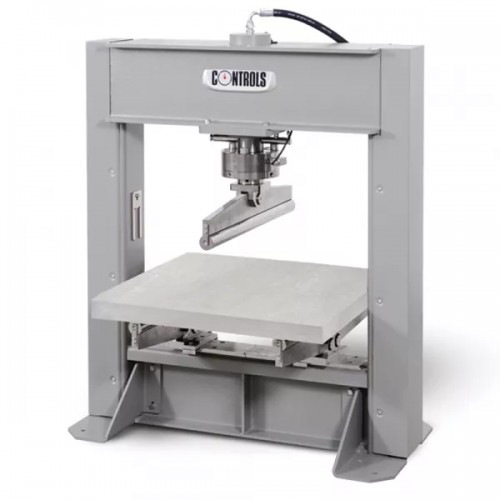

    50-C1500/6 - Accessory for 50-C15xx/FR and 50-C17xx/FR flexure frames for testing concrete slab to EN 14488-5. Including supporting square frame and spherically seated loading element. To be completed with displacement transducers 50-C1500/9 and 50-C1500/8

    50-C1500/8 - LDT displacement transducer for 50-C15xx/FR and 50-C17xx/FR flexure frames, 50mm travel, for underneath displacement measurement of sprayed concrete slab

    50-C1500/9 - 100mm LDT displacement transducer for 50-C15xx/FR and 50-C17xx/FR flexure frames for measuring piston travel. Complete with mounting adaptors

    50-C1500/1 - Upper and lower roller assembly (including ball seating upper beam for rollers’ support) for center and third point flexure test. Bearers dimensions: 30 mm dia. x 210 mm long

    50-C1500/11 - Upper and lower loading rollers for 50-C15xx/FR and 50-C1711/FR flexure frames for third and centre point testing of concrete beams to EN 12390-5, ASTM C78, C293, C1018, EN 14651 Including two loading rollers and two lower bearers dia. 30 x 310 mm

    50-C1500/12 - Upper roller assembly (including ball seating upper beam for rollers’ support) for third point and center point flexure test, including two rollers 310 mm x 40 mm diameter. To be used with support bearers of 50-C1500/2

    50-C1500/2 - Set including 2 bearers and 1 loading roller 50-C15xx/FR and 50-C17xx/FR flexure frames for flagstones (paving slab) testing to EN 1339. Roller dimensions: 40 mm dia x 620 mm

    50-C1500/3 - Upper loading swivel joint 40 mm dia for 50-C15xx/FR and 50-C17xx/FR flexure frames for kerbs stones testing to EN 1340. Lower bearers notincluded. It shall be used in combination with accessory 50-C1500/2

    50-C1500/4 - Upper roller assembly (including ball seating upper beam for rollers’ support) for third point and center point flexure test, including two rollers 210 mm x 40 mm diameter. To be used with support bearers of 50-C1500/2

    50-C1500/50 - Distance piece 50mm thickness for flexure frame

    50-C1500/7 - Set of spherically seated 165 mm dia. lower and upper platens for 50-C15xx/FR and 50-C17xx/FR flexure frames for compression test

    50-C1500/80 - Distance piece 80mm thickness for flexure frame

    50-C1500/R - Replacement of the standard rulers with rulers with graduation in inches for 50-C15xx/FR
