Ситовий шейкер великої місткості

Обрати іншу модель Копіювати посилання

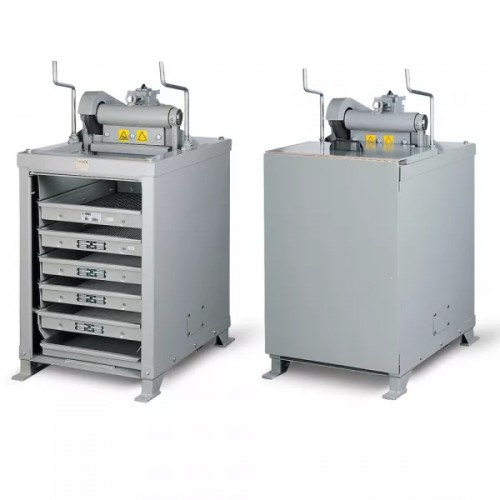

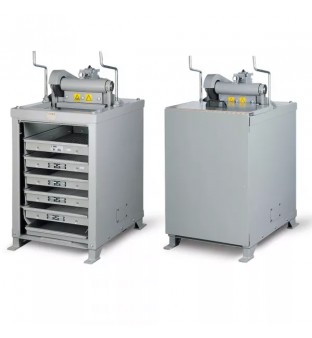

Ситовий шейкер великої місткості
Характеристики
Standards EN 932-5
Tray dimensions 457x660x75 mm
Tray capacity up to 30 liters (1ft³)
Dimensions (approx.) 548x787x850 mm
Weight (approx.) 170 kg
Power supply 230 V, 50-60 Hz, 1 ph

Manufacturer Controls

15-D0420/A - High capacity mechanical sieve shaker

Дивитися повний опис

Ideal for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials. The sieve shaker has a capacity of about 30 liters (1ft³) of sample. Enabling from two to seven separations simultaneously. The vibrating units consists of interlocking spaces, which support and separate the screen trays. An equal clearance among trays allows an indipendent removal of each tray. Holds six screen trays-see Screen trays- 457x660x75 mm size, and one dustpan. Screen trays have to be ordered separately. The shaker can be completed with the soundproof and security cabinet, recommended for use in the CE countries. See accessories.

It can be completed with Noise reduction cabinet and Wet sieving accessories. See accessories.

Main features
  • Can separate up to 30 liters (1ft³) of aggregates (65 kg approx.)
  • Also suitable for sizing crushed stones, slag, coal, coke, ores, pellets etc
  • Large selection of screen trays available, ASTM and EN standards. See screen trays
  • Виробник
    Виробник Controls

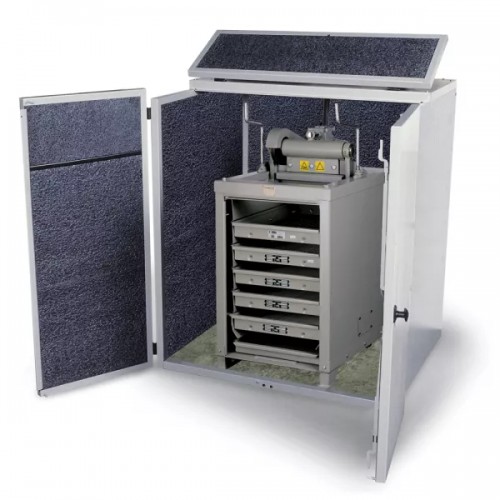

    15-D0420/A2 - Noise reduction cabinet for high capacity mechanical screen shaker model 15-D0420/A. Easy ergonomic access by double-door opening system andfoldable top cover. The control panel of the shaker is mounted inside the cabinet, directly on the machine

    115-D0420/A1 - Dust cover

    15-D0428/09 - Dustpan tray

    15-D0428/10 - Tray only, without mesh. Used as spacer between trays
