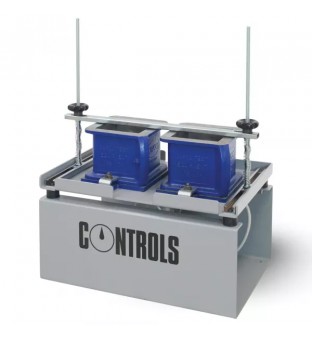

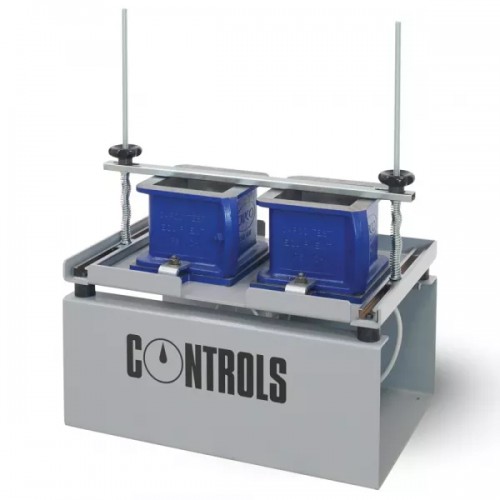

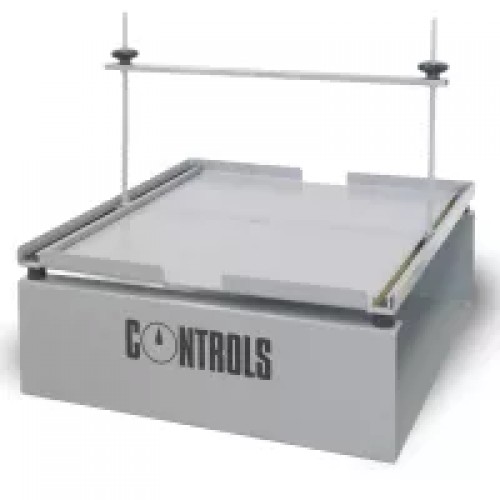

Vibrating Tables (Controls)

Обрати іншу модель Копіювати посилання
Vibrating Tables (Controls)
Vibrating Tables (Controls) Увеличить
Характеристики
Standards EN 12390-2

Manufacturer Controls
Всі характеристики
55-C0158/A - Vibrating table 630x400 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 230V,50Hz,1ph

55-C0158/AY - Vibrating table 630x400 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 220V,60Hz,1ph

55-C0158/B - Vibrating table 830x830 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 230V,50Hz,1ph

55-C0158/BY - Vibrating table 830x830 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 220V,60Hz,1ph

55-C0158/C - Vibrating table 1250x700 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 230V,50Hz,1ph

55-C0158/CY - Vibrating table 1250x700 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options. 220V,60Hz,1ph

Дивитися повний опис
Vibrating Tables (Controls) Збільшити

Robustly manufactured to operate with minimum noise levels, these tables operate at 3000 vibrations per minute at 50 Hz or 3600 at 60 Hz and have retaining edges to avoid the moulds from falling from the table.

All models can be completed with clamping device, pedal switch and multi-function control panel (see Accessories).

Main features
  • Clamping devices: new universal and practical system, easy to mount and increased adaptability in accordance with the moulds used
  • Waterproof pedal: with electrical switch

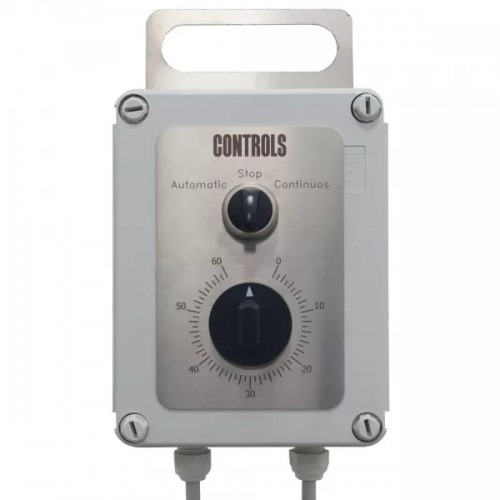

  • Multi-function control panel: 60 seconds timer and ON/OFF switch

    • Technical specifications

    Models 55- C0158/A, C0158/AY, C0158/AZ C0158/B, C0158/BY, C0158/BZ C0158/C, C0158/CY, C0158/CZ
    Dimensions mm 630x400 830x830 1250x700
    Vibration/min @ 50Hz / @ 60 Hz 3000 / 3600 3000 / 3600 3000 / 3600
    Power W 180 180 2x180
    Weight approx. kg 33 69 91
    Виробник
    Виробник Controls
    55-C0158/A - Vibrating table 630x400 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.

    55-C0158/AY - Vibrating table 630x400 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.

    55-C0158/B - Vibrating table 830x830 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.

    55-C0158/BY - Vibrating table 830x830 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.

    55-C0158/C - Vibrating table 1250x700 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.

    55-C0158/CY - Vibrating table 1250x700 mm for concrete moulds with retaining edges. Universal clamping brackets, waterproof pedal switch, ON/OFF and timer control panel available as options.
